Makino EDNC65

Photo Gallery

Makino - EDNC65CN-EDM-MAK-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

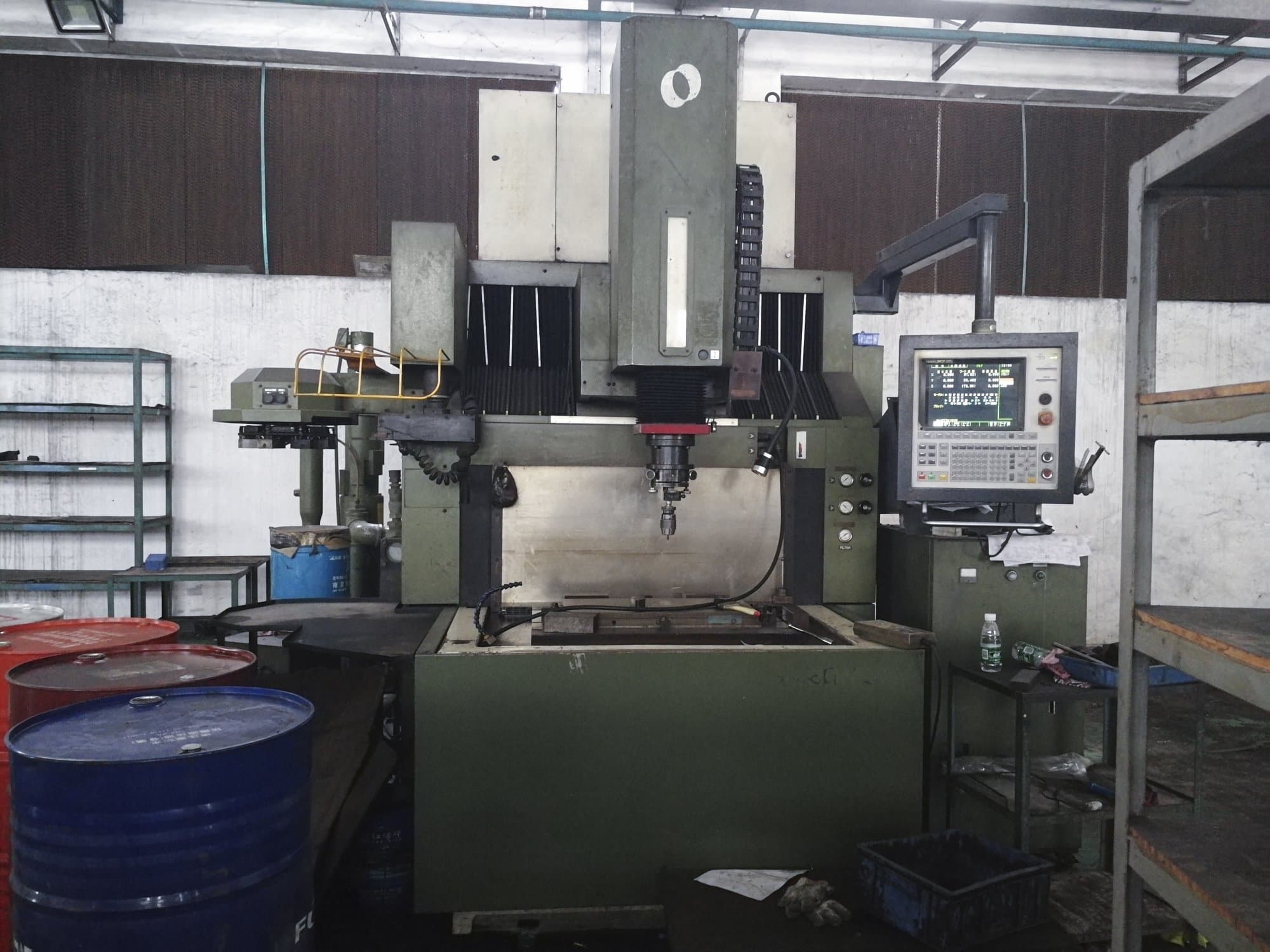

Makino EDNC65 Erosion Machine

Show in original language

This Makino EDNC65 Erosion Machine from 1995 was built in Japan and has a working record of 28185 production hours. This model, equipped with a Makino MGF20 Control unit, is well maintained.

Overview

brand: Makino
year: 1995
MODEL: EDNC65
production hours: 28185
application type: EDM
Location: China
machine type: Die-Sinking EDM Machine
control unit brand: MAKINO

Technical Information - Makino EDNC65

General Data

Measurements width: 3500 mm
Measurements depth: 2800 mm
Measurements height: 3000 mm
Machine weight: 18000 kg

Control Unit

Brand: MAKINO
Model: MGF20

Main drive

Working current: 60 A
Wire feed: 3000 mm/min

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 800 mm
Outer width: 550 mm

Media

Main electronic connection: 380 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
