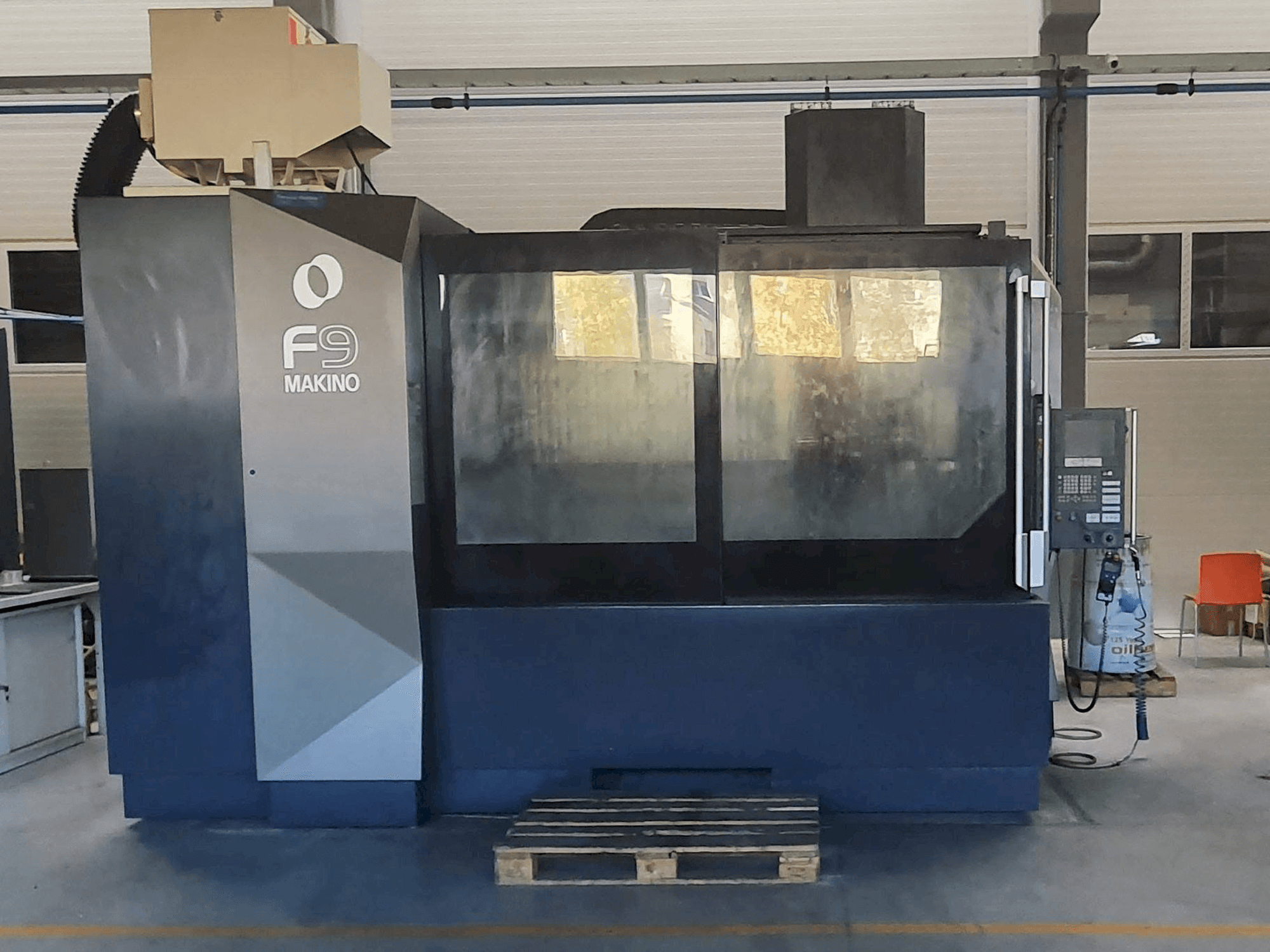

This Makino F9 Vertical Machining Center was built in Japan in 2016. This 3 axis machine can work with a spindle speed range up to 20000 rpm and has been working for 14518 hours of which 8247 are spindle hours. It is equipped with a Makino Professional 6 control unit. It includes several additional equipments like a SNT 200V Transformer.
Overview
- brand: Makino
- year: 2016
- MODEL: F9
- production hours: 14518
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: MAKINO
Technical Information - Makino F9
Control Unit
- Control Brand: MAKINO
- Control Model: Professional 6
Dimensions
- Machine Depth: 4080 mm
- Machine Height: 3556 mm
- Machine Weight: 17000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1600 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 650 mm
Technical Specification
- Spindle Speed: 20000 RPM
Additional Information
Additional equipment
- Automatic tool chenger (ATC) Capacity: 48 pcs
- SNT 200V Transformer
- Air dryer
- Lift up cheap conveier
- Portable MTG with LCD
- Coolant flush pump Grundfos
- Cooling through the spindle – 3 MPa
Machine Benefits
Qualitative Machine Benefits
- Original offer copy with full configuration attached.
- Service report makino and geometry report from nov 2021.
- Machine is in good condition
Technical Machine Benefits
- Max table loading: 2500kg
- Table: (wxd): 1850x800mm
- Spindle taper: hsk a63
- Rapid traverse / cutting feedrate: 24,000 mm / min
- Power supply: 400v / 50hz
- Signal light
- Auto grease
- Air blower
- Tool measurement system: blum mc d80 (laser type)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
