Makino MC 100

Photo Gallery

Makino - MC 100HR-MIL-MAK-1987-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

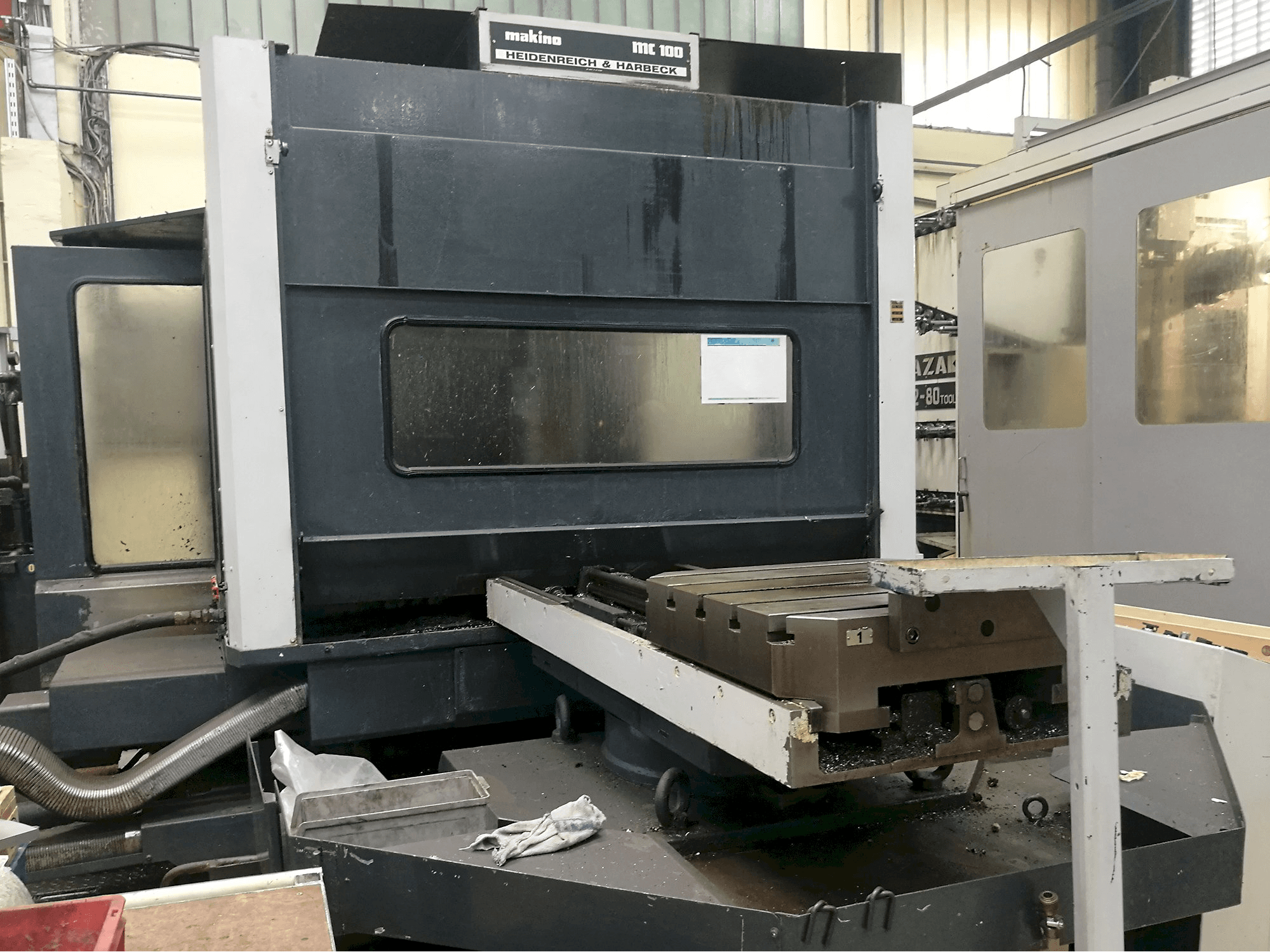

Makino MC 100 Horizontal Machining Center

Show in original language

This Makino MC 100 Horizontal Machining Center was made in Germany in 1987 and counts with a production time of 62000 hours. Operated through a FANUC System 6M Control unit, this strong machine has mainly worked with steel and stainless steel during the past. It incorporates box guideways, an oil chiller and 2 pallets.

Overview

brand: Makino
year: 1987
MODEL: MC 100
production hours: 62000
application type: Milling
Location: Croatia
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Makino MC 100

General Data

Measurements width: 4900 mm
Measurements depth: 6800 mm
Measurements height: 2650 mm
Machine weight: 11000 kg

Control Unit

Model: System 6M
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 980 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 620 mm

Table

Outer length: 630 mm
Outer width: 630 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 60
Type of tool holder: SK50

Media

Main electronic connection: 380 V
Power consumption: 15 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

oil chiller
2 pallets (630x630mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
