Makino V55-A15

Photo Gallery

Makino - V55-A15ES-MIL-MAK-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Makino V55-A15 For sale | gindumac.com

Show in original language

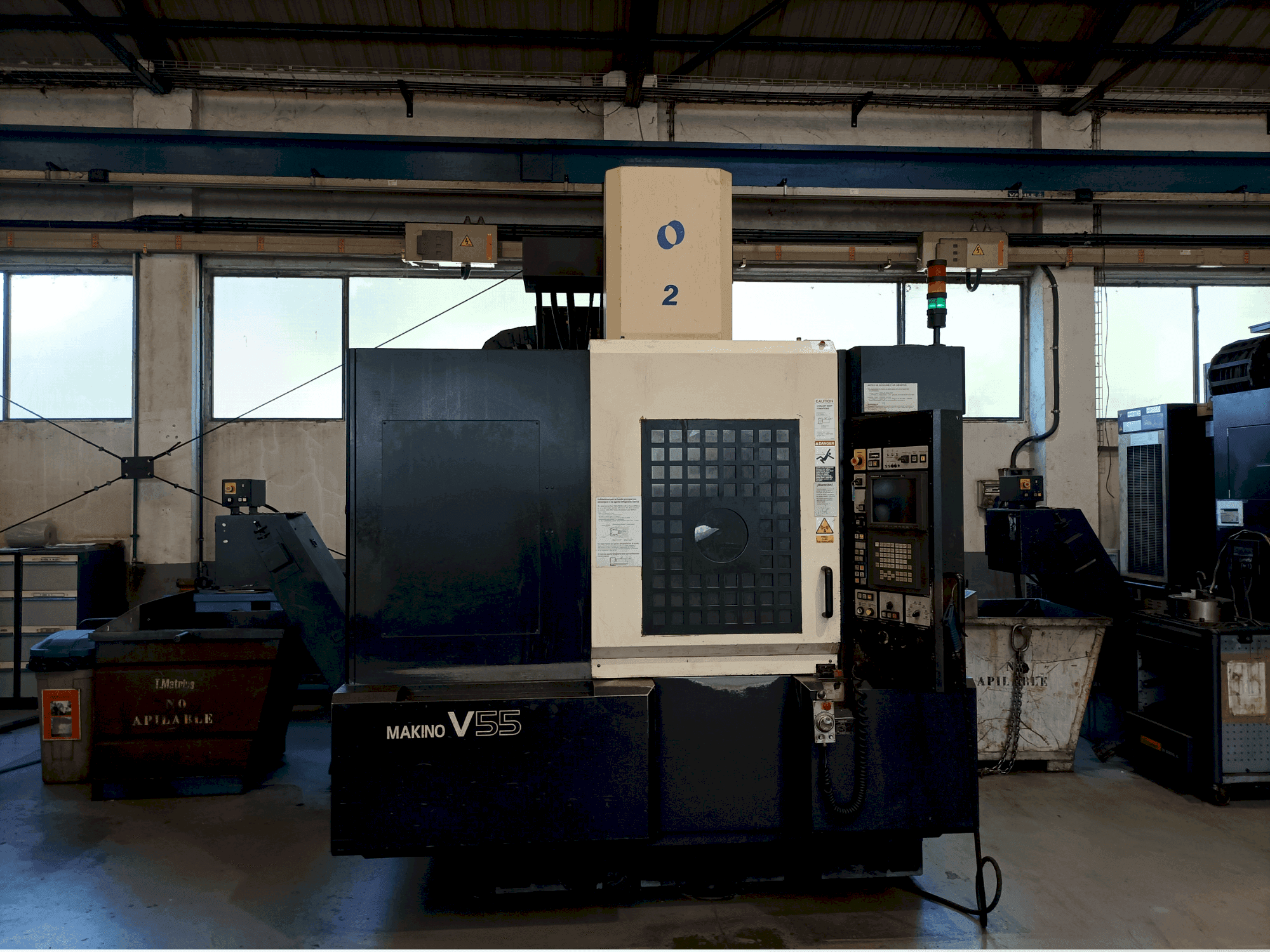

This 3-axis Makino V55-A15 vertical machining center was manufactured in 2000. It features a spindle speed range of 15-14,000 rpm and an integral motor output of AC 22/18.5 kW. Equipped with a Fanuc 16M control, it offers X, Y, Z travels of 900 mm, 500 mm, and 450 mm respectively. The table can handle a maximum weight of 700 kg. A great opportunity to buy this Makino V55-A15 vertical machining center. Contact us for more information.

Overview

brand: Makino
year: 2000
MODEL: V55-A15
production hours: 0
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Makino V55-A15

Control Unit

Model: 16M
Brand: FANUC

Main drive

Spindle speed range: 15-14,000 1/MIN

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece x: 1000 mm
Workpiece y: 450 mm
Workpiece z: 630 mm
Workpiece weight: 700 kg

Table

Outer length: 1000 mm
Outer width: 500 mm
TSlots size: Five: 18 × 35 × 30 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 600 mm

Tools

Slots in storage: 25

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bearings [inner / outer diameter]: 90/140 mm
- - Integral motor output characteristics [15 min. Duty cycle / continuous]: ac 22 / 18. 5 kw
- - Height to table surface : 980 mm
- - Tool shank: hsk63

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
