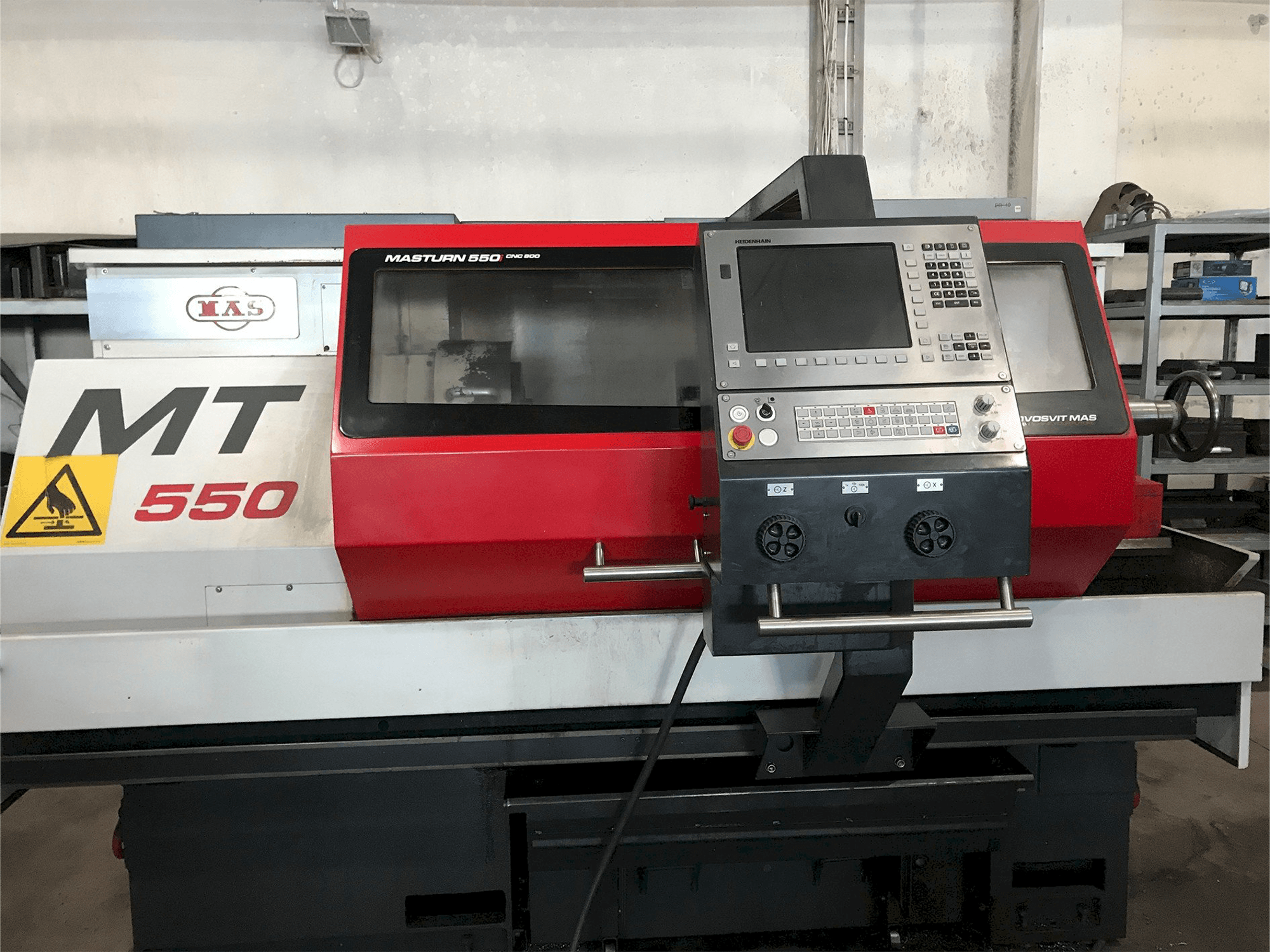

Front view of MAS MASTURN MT 550 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MAS MASTURN MT 550

Photo Gallery

MAS - MASTURN MT 550EE-TUR-MAS-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MAS MASTURN MT 550 Lathe

Show in original language

This MAS MASTURN MT 550 Lathe was built in Czech Republic in 2015. It has been working for 7398 hours. It is equipped with a HEIDENHAIN MANUALplus 620 control unit. This machine can works with a spindle speed range between 0 - 3000 rpm. It comes with additional accesories.

Overview

brand: MAS
year: 2015
MODEL: MASTURN MT 550
production hours: 7398
application type: Turning
Location: Estonia
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - MAS MASTURN MT 550

General Data

Measurements width: 2538 mm
Measurements depth: 1920 mm
Measurements height: 1755 mm
Machine weight: 3200 KG

Control Unit

Model: MANUALplus 620
CNC main language: English
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/MIN
Spindle bore: 82 mm

Movement

X-AXIS Movement: 285 mm
Z-AXIS Movement: 890 mm

Workpiece

Workpiece weight: 600 KG

Media

Power consumption: 30 kVA

Additional Information

Additional equipment

TURRET DUPLOMATIC with next toolholders
Radial tool holder B2, 30x20x40
Radial tool holder B2, 30x25x44
Boring bar holder E2-30x12
Boring bar holder E2-30x16
Boring bar holder E2-30x20
Boring bar holder E2-30x25
Collets holder E4
Collets DIN 6499 DIA 3-20
Holder MO2

Machine Benefits

Qualitative Machine Benefits

The machine is not being used
The machine has very low hours compared to machines from the same year

Technical Machine Benefits

Holder mo3
Tool holder, for turning tools dia 16 (30. 16. 230)
Tool holder, for turning tools dia 20 (30. 20. 230)
Reducing sleeve dia 8
Reducing sleeve dia 10
Reducing sleeve dia 12
Chuck dia 1-13

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
