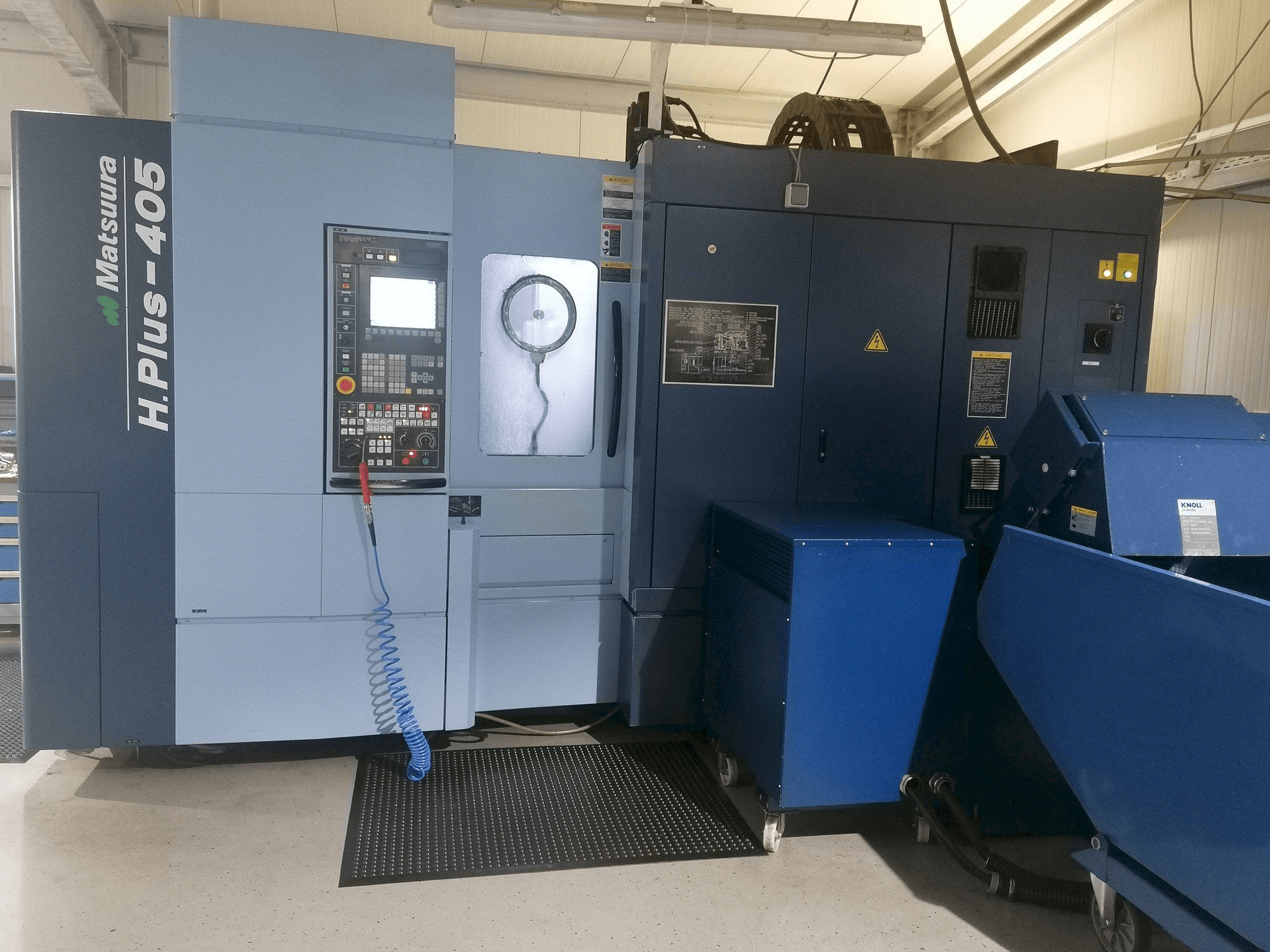

Matsuura H-PLUS-405 Horizontal Machining center

Show in original language

This Matsuura H-PLUS-405 Horizontal Machining center was manufactured in Japan in 2011. It is equipped with a Siemens 840Di control unit. This 3 axis machine has a spindle speed between 40 - 12000 rpm and a HSK 63 tool taper.

Overview

brand: Matsuura
year: 2011
MODEL: H-PLUS-405
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Matsuura H-PLUS-405

General Data

Measurements width: 2400 mm
Measurements depth: 4200 mm
Measurements height: 2800 mm
Machine weight: 10400 kg

Control Unit

Model: 840Di
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 40 - 12000 1/MIN
Spindle motor power: 22 kW
Tool taper: HSK 63
Number of axis: 3

Movement

X-AXIS Movement: 660 mm
X-AXIS Working Feed: 600 mm
X-AXIS Feed Force: 60000 mm
Y-AXIS Movement: 660 mm
Y-AXIS Working Feed: 600 mm
Y-AXIS Feed Force: 60000 mm
Z-AXIS Movement: 660 mm
Z-AXIS Working Feed: 600 mm
Z-AXIS Feed Force: 60000 mm

Table

Outer length: 500 mm
Outer width: 500 mm
Table load: 400 kg

Tools

Number of stations: 51

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Coolant system tank weight 810 kg
- - Record changer with 2 pallets
- - Disc magazine with servo drive 5. 1
- - Knoll coolant system
- - Spiral clamp conveyor
- - 8 free m functions
- - Rotating lens
- - Coolant spray
- - Pallet changer with 2 pallets 500x500
- - 1 clamping tower from vischer u. Bolli 400x400mm
Qualitative Machine Benefits:
- - Available slots: 51 = tool positions
- - Rotary table can position itself 1 degree
- - The machine also has an nc table
- - Simultaneous milling is possible in 0. 001 degree increments
- - High quality option

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

H-PLUS 405_YS-840Di_Beschreibung der Maschine_.pdf
