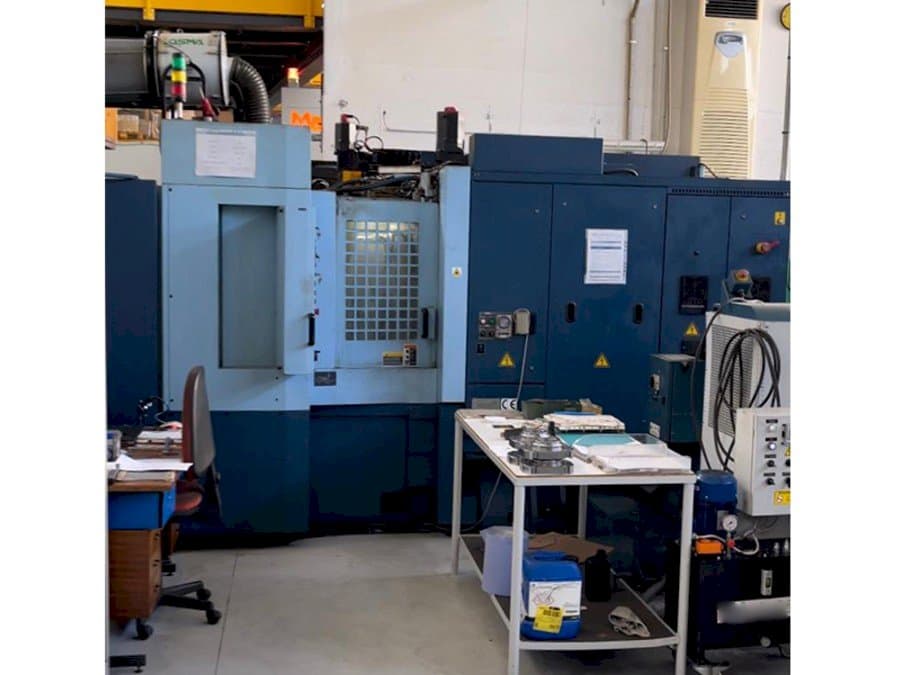

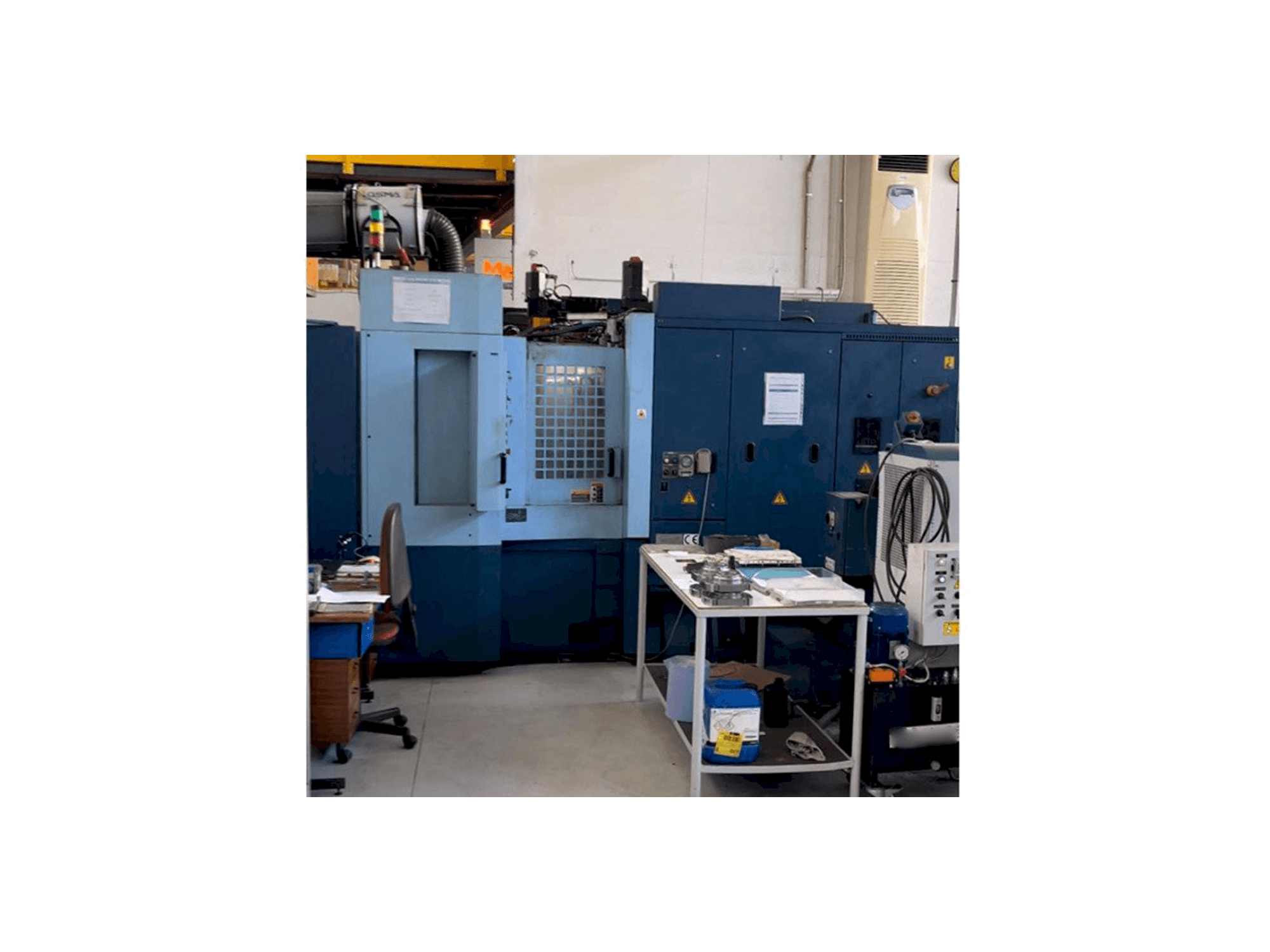

Front view of Matsuura H-PLUS 405 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura H-PLUS 405

Photo Gallery

Matsuura - H-PLUS 405IT-MIL-MAT-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Matsuura H-PLUS 405 Horizontal Machining Center

Show in original language

This Matsuura H-PLUS 405 Horizontal Machining Center was manufactured in the year 2004. It shows a working history of 82545 hours. This 4 axis machine is equipped with a FANUC G-Tech 16i control unit. It can works with a table dimension of 500 x 500 mm and 28 storage stations with 2 loading and unloading bays.

Overview

brand: Matsuura
year: 2004
MODEL: H-PLUS 405
production hours: 82545
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Matsuura H-PLUS 405

Control Unit

Model: G-Tech 16i
Brand: FANUC

Main drive

Tool taper: BT40
Number of axis: 4

Movement

X-AXIS Movement: 660 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 660 mm

Table

Outer length: 500 mm
Outer width: 500 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axis b (strokes): 360 degrees
- - Pallet changer with 28 storage stations with 2 loading / unloading bays
- - Tool magazine capacity 240
- - High pressure system through the 50 bar spindle with 30 µm paper filtering
Qualitative Machine Benefits:
- - Good general conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
