Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Mazak - CYBERTECH TURN 4500MGB-TUR-MAZ-2009-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mazak CYBERTECH TURN 4500M lathe

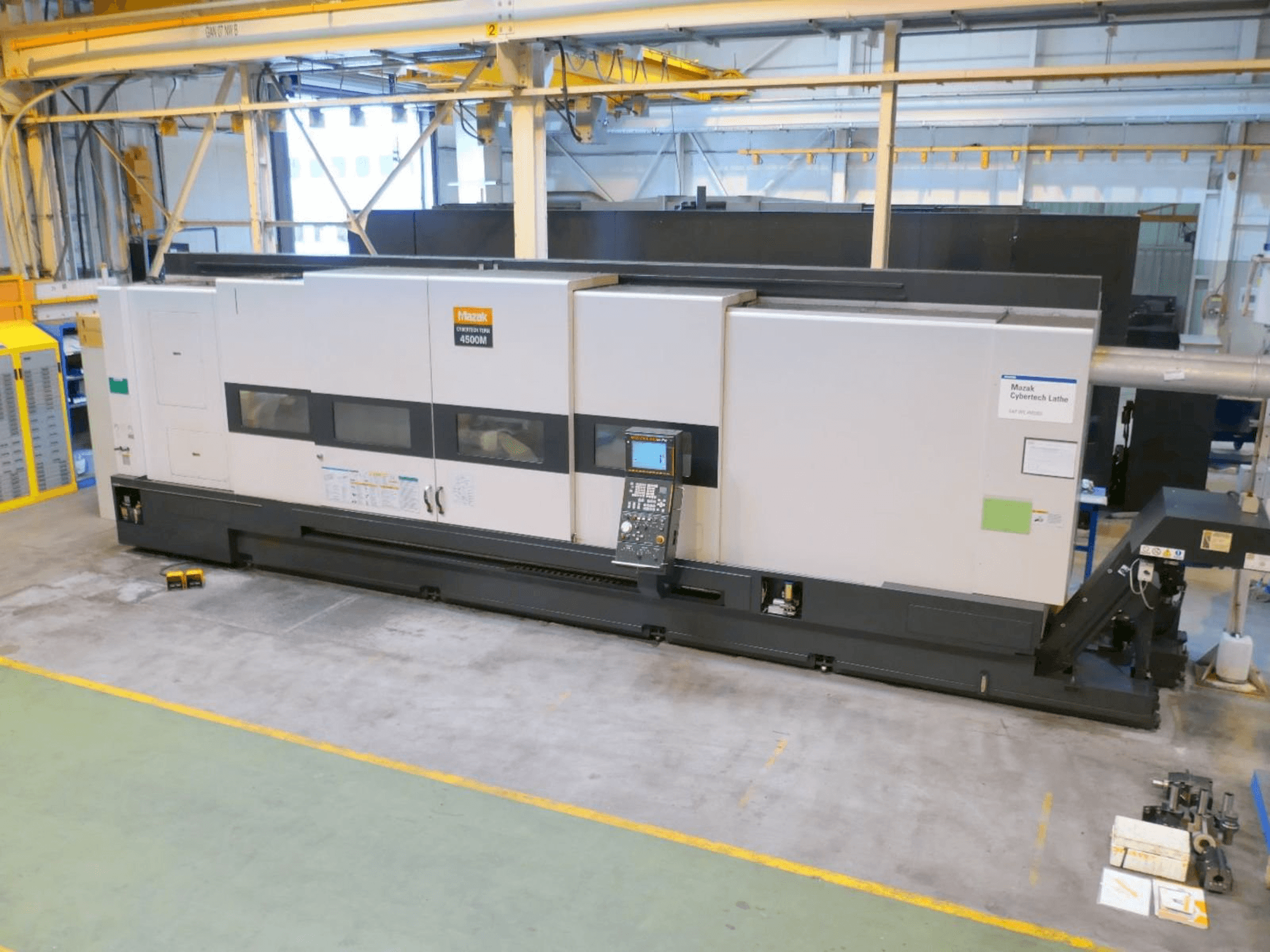

This Mazak CYBERTECH TURN 4500M lathe machine was manufactured in the year 2009 in Japan and has 1681 cutting hours. It is equipped with a MAZATROL 640 MT PRO control unit and has 3 axis. The machine has a Spindle speed (2 range) of 35 - 2400 rpm and includes 630 mm 3 jaw chuck, driven tool holders, static boring and turning tool holders, SMW hydraulic steady rest, SMW manual steady rest, tool pre setter, programmable tailstock, high pressure coolant, and a swarf conveyor.
Overview
- brand: Mazak
- year: 2009
- MODEL: CYBERTECH TURN 4500M
- production hours: 1681
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak CYBERTECH TURN 4500M
Control Unit
- Control Brand: MAZATROL
- Control Model: 640 MT PRO
Dimensions
- Machine Depth: 3763 mm
- Machine Height: 2800 mm
- Machine Weight: 23800 kg
Movement
- Number of Axes: 3
- X-axis Travel: 540 mm
- Z-axis Travel: 4146 mm
Technical Specification
- Spindle Power: 37 kW
- Spindle Speed: 2400 RPM
Additional Information
Additional equipment
- Equipped with:- 630mm 3 Jaw Chuck
- Driven Tool Holders
- Static boring and turning tool holders
- SMW Hydraulic Steady Rest
- SMW Manual Steady Rest
- Tool presetter
- Programmable tailstock
- High pressure coolant
- Swarf conveyor
- Machine manuals
Machine Benefits
Technical Machine Benefits
- Maximum swing: 860 mm
- Swing over cross slide: 700 mm
- Max. Machining dia: 810 mm
- Max. Machining length: 4052 mm
- Spindle nose: a2-11
- Through hole diameter: 132 mm
- Type of turret: 12 station – all live
- Rotary tool spindle speed: 25-3000 rpm, rotary tool spindle power: 11/7. 5 kw
- Tailstock stroke: 3350 mm
- Tailstock centre: mt no. 5
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
