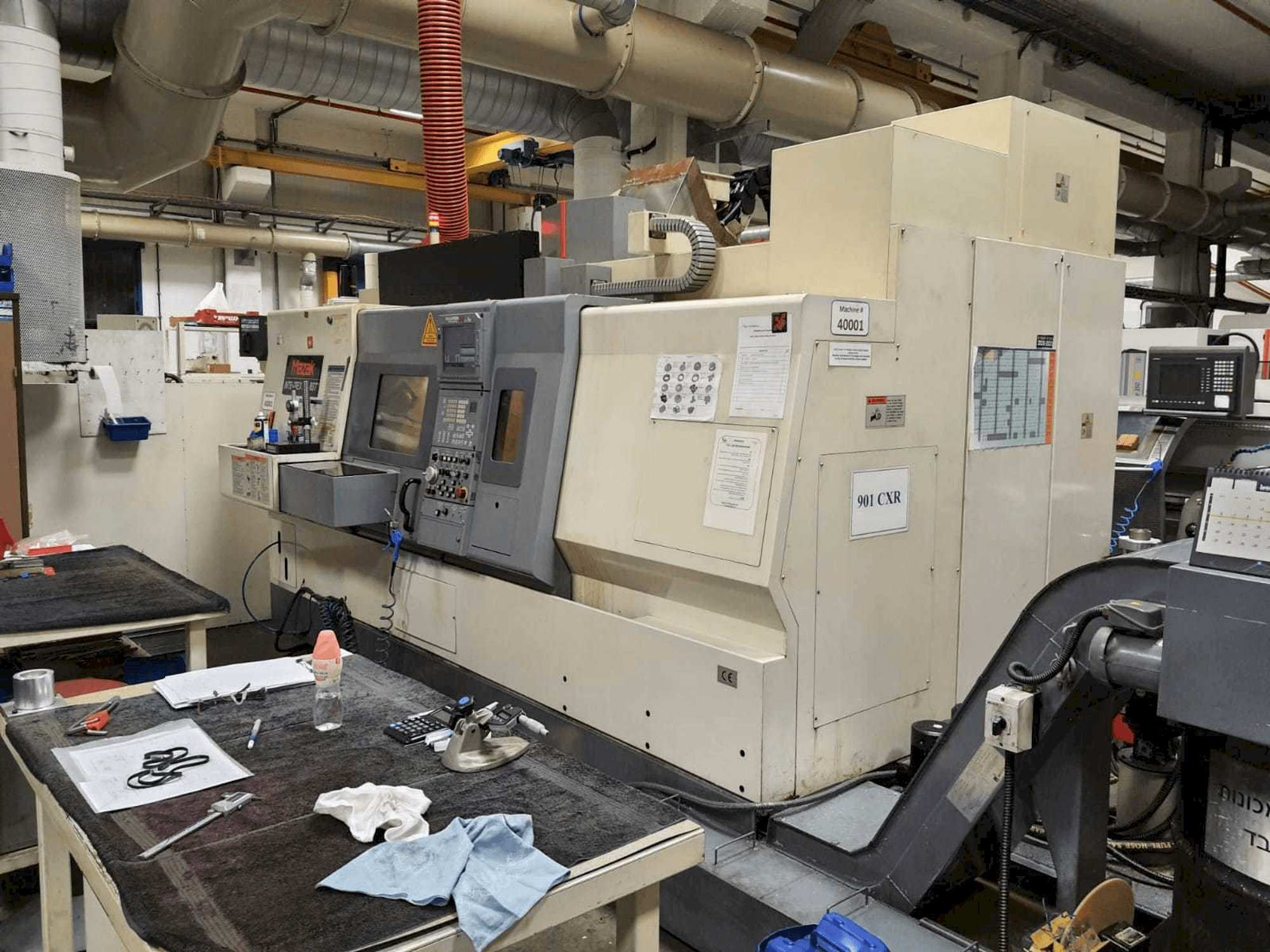

Mazak Integrex 200-3ST lathe machine

Show in original language

This Mazak Integrex 200-3ST lathe machine was manufactured in 2003. The machine has approximately 40000 working hours, of which 16000 are cutting hours. This 5 axis machine has a spindle speed up to 12000 rpm. All its main drivers were replaced in the last 2-3 years and many other parts like that cover of the X axis, breaks, overhaul and bearing of lower turret have been recently changed.

Overview

brand: Mazak
year: 2003
MODEL: Integrex 200-3ST
production hours: 40000
application type: Turning
Location: Israel
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 200-3ST

Control Unit

Model: 640 Mt Pro
Brand: MAZATROL

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 5

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 40 tools hsk63, 12000rpm
- - Lower turret 8 stations
- - Thru the spindle (turning) 66. 5mm (2 5/8”)
- - 15bar high pressure coolant on milling spindle
- - Air blow chuck
- - Air blow thru spindle
- - Shower coolant
- - Coolant thru spindle
- - Chiller / temperature control for coolant
- - 2 spindle
Qualitative Machine Benefits:
- - New milling spindle in 2013
- - All main drivers were replaced in the last 2-3 years
- - Cover of x axis upper turret changed in may 2020
- - 4. New break in x axis of the upper turret in sept. 2020
- - Overhaul of coolant and hydraulic seals on lower turret in oct. 2020
- - Bearing of lower turret changed in oct. 2020

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
