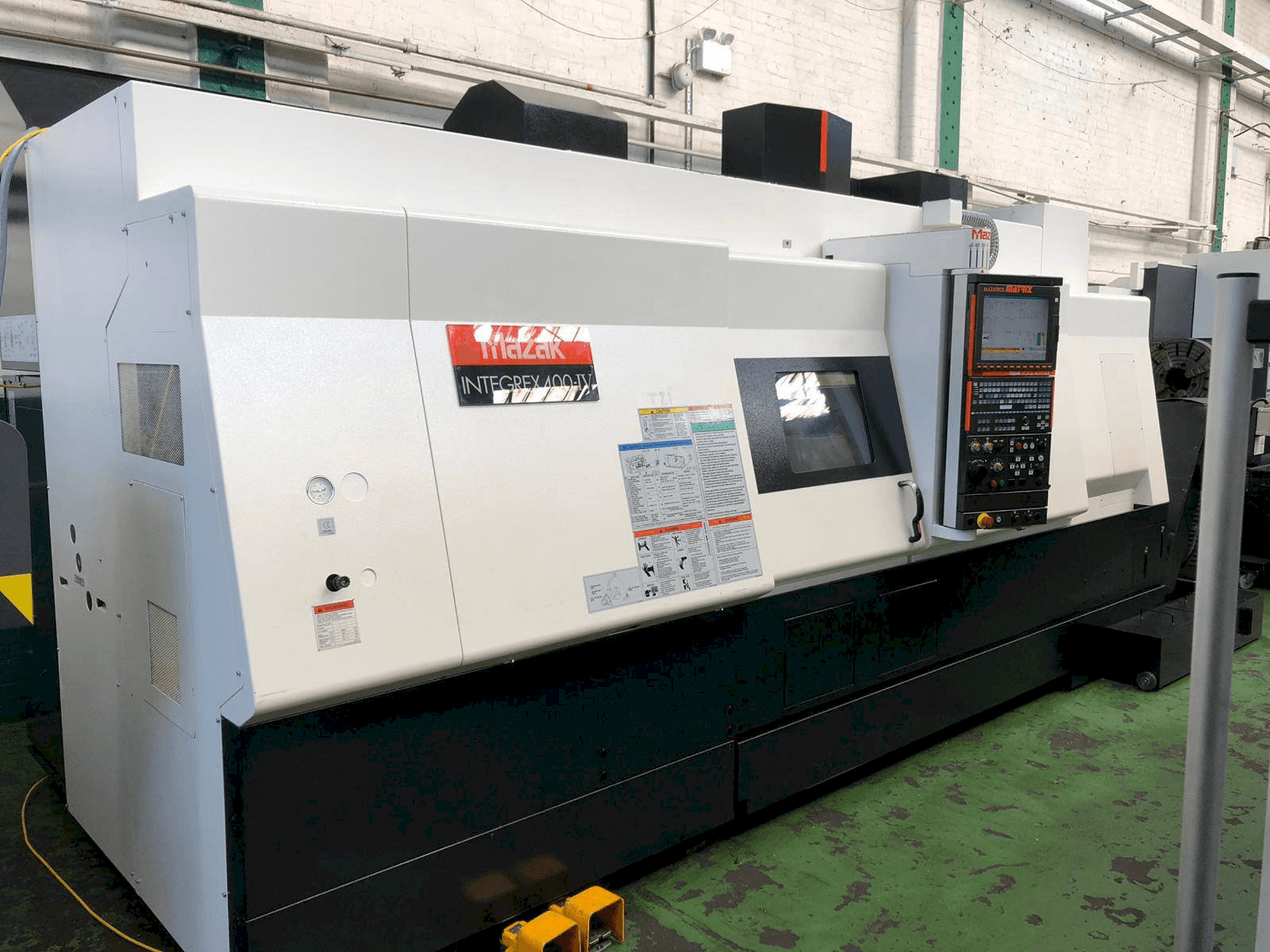

Front view of Mazak Integrex 400-IV machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 400-IV

Photo Gallery

Mazak - Integrex 400-IVGB-TUR-MAZ-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 400-IV Lathe

Show in original language

This Mazak Integrex 400-IV Lathe was built in 2011 in Japan. Equipped with a Mazatrol Matrix Control unit, this machine can work with a spindle speed range of 35 – 3300 rpm.

Overview

brand: Mazak
year: 2011
MODEL: Integrex 400-IV
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400-IV

Control Unit

Model: Mazatrol Matrix
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 35 – 3300 1/MIN
Spindle motor power: 30 kW

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 38m/min
Y-AXIS Movement: 230 mm
Y-AXIS Rapid traverse: 26m/min
Z-AXIS Movement: 1585 mm
Z-AXIS Rapid traverse: 38m/min
W-Axis Rapid traverse: 6m/min

Workpiece

Workpiece weight: 1000 kg

Tools

Slots in storage: 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 760 mm
- - Maximum cutting length 1524 mm
- - Maximum weight in chuck 650 kgs
- - Milling head: single spindle to accommodate capto tooling
- - Milling speeds 15-12,000 rpm
- - Spindle thru hole dia. 112mm
- - Kitagawa b-21215x 15” dia. 3 jaw powered chuck
- - Coolant tank capacity 444 litres
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
