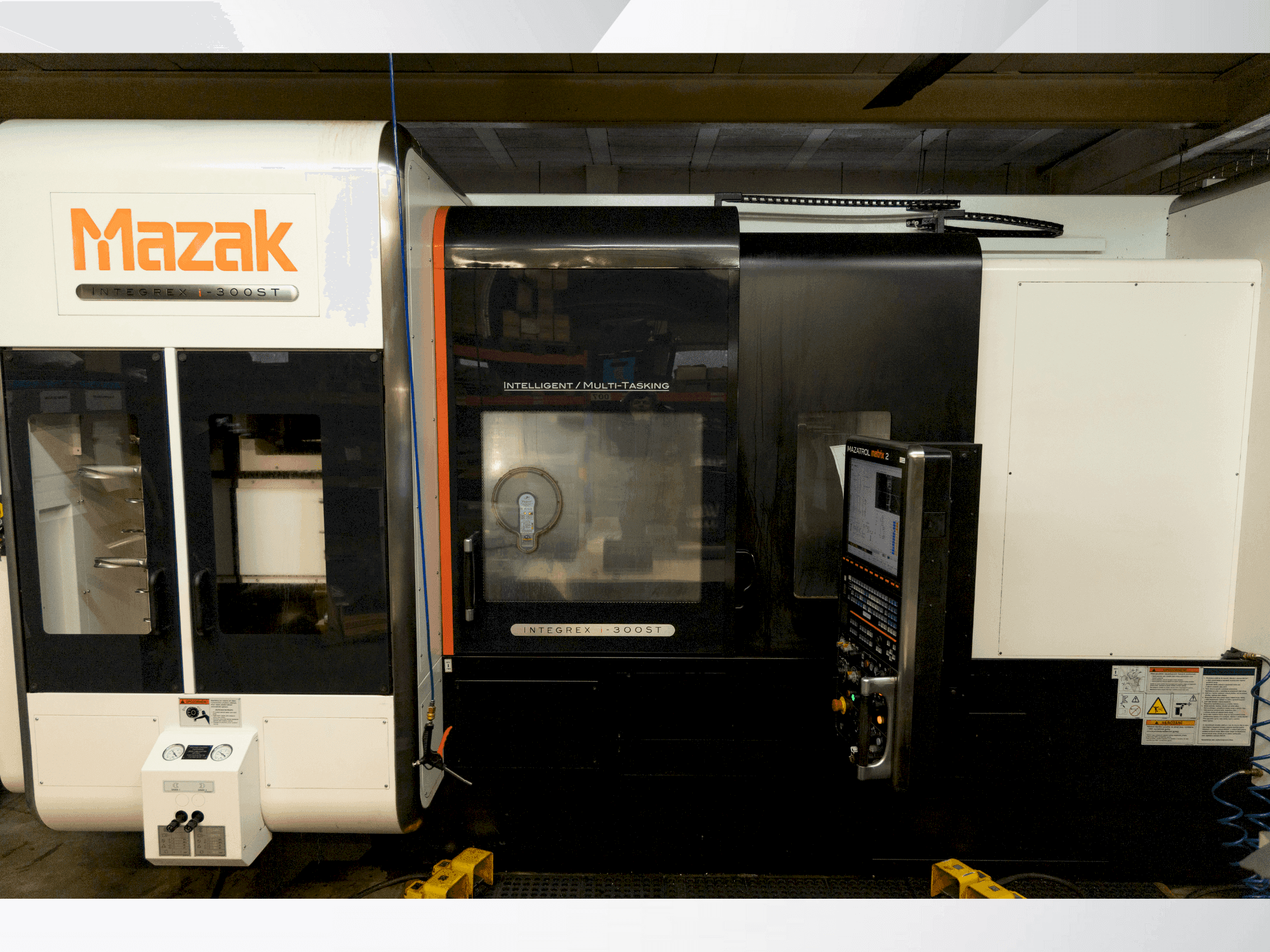

Mazak - Integrex i-300ST-1500UCZ-TUR-MAZ-2012-00001

Additional equipment

• - Mist filter unit
• - High pressure cooling (14 bar)
• - Work space rinse cleaning (2.7 bar/60 l)
• - RMP600-Radio/Radio probe
• - Preparation for 70 bar cooling through spindle
• - Programmable overload detector
• - C-axis on second spindle
• - MO321 - Gear milling without tool
• - TE810 - Preparation for Multi and Flash tools
• - NO117 - Tool edge control for 5-axis continuous / Axes movements: X / Y / Z / X2 / Z2 615 / 250 / 1585 / 230 / 1388 mm / W 1539 mm / C-axis indexing 0.0001°

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Main spindle bar passage: 80mm
  • - Milling head (b axis) speed: 12. 000rpm
  • - No123 - tool radius correction for 5-axis continuous control
  • - No137 - eia dynamic compensation i
  • - No092 - synchronous threading for driven tool
  • - Eia/iso continuous 5-axis control
  • - Extensive tool capacity with 72-tool magazine (hsk-63 holders)
  • - Advanced 5-axis continuous control with various compensation and correction features
  • - Max. Machining diameter 658 mm / max. Machining length 1519 mm / max. Workpiece weight 450 (1st spindle) / 400 (2nd spindle) kg
  • - Main spindle motor power 30 (30 min. ) / 22 (continuous) kw / subspindle motor power 26 (30 min. ) / 22 (continuous) kw /
• Qualitative Machine Benefits:
  • - Comprehensive equipment for diverse machining operations (turning, milling, drilling, threading, etc. )
  • - Used exclusively with mazak service technicians
  • - Lower turret number of tools 9

Extra information

• - Machine still under power
