Mazak - QUICK TURN 20ES-TUR-MAZ-1998-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Mazak QUICK TURN 20
Show in original language

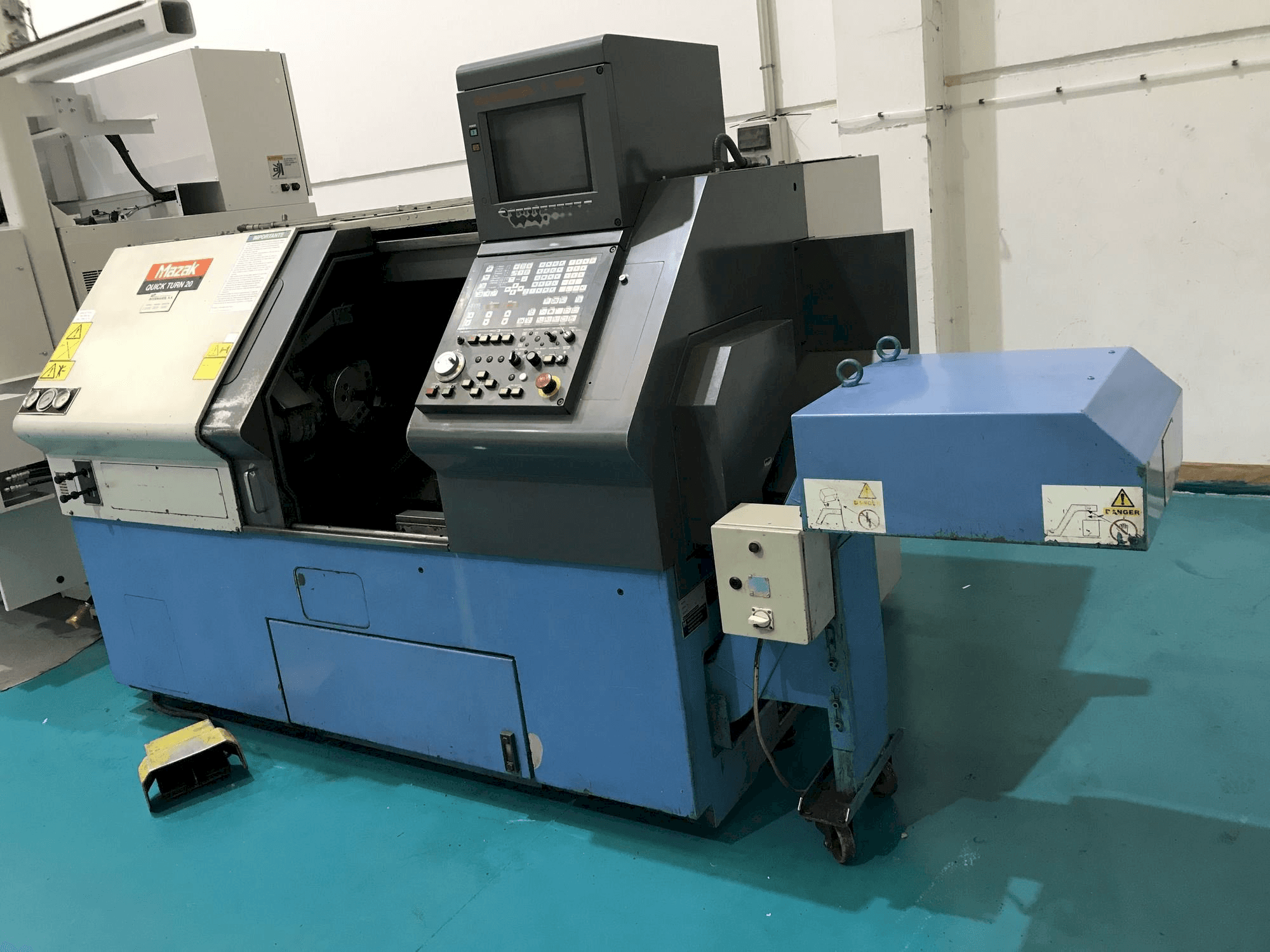

This Mazak QUICK TURN 20 Lathe was built in 1998. It is operated through a MAZATROL T PLUS control unit. This 2 axis machine incorporates 1 turret and works with a spindle speed up to 3600 rpm.
Overview
- brand: Mazak
- year: 1998
- MODEL: QUICK TURN 20
- application type: Turning
- Location: Spain
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak QUICK TURN 20
Control Unit
- Control Brand: MAZATROL
- Control Model: T PLUS
Dimensions
- Machine Depth: 1739 mm
- Machine Height: 1855 mm
- Machine Weight: 4250 kg
Movement
- Number of Axes: 2
- X-axis Travel: 155 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Workpiece Diameter: 254 mm
- Number of Tools: 8
- Spindle Speed: 3600 RPM
Additional Information
Additional equipment
- 3 jaws-Kitagawa B-208 (8”) hydraulic chuck
- Tailstock
- Tool-setter
- Quill diameter 80 mm
- Cono morse MT.4
- Hard and soft jaws, extra chuck, tool holder, cutting tools
Machine Benefits
Qualitative Machine Benefits
- Machine in good status
Technical Machine Benefits
- Bar hole 51 mm
- Head inner hole diameter: 61 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
