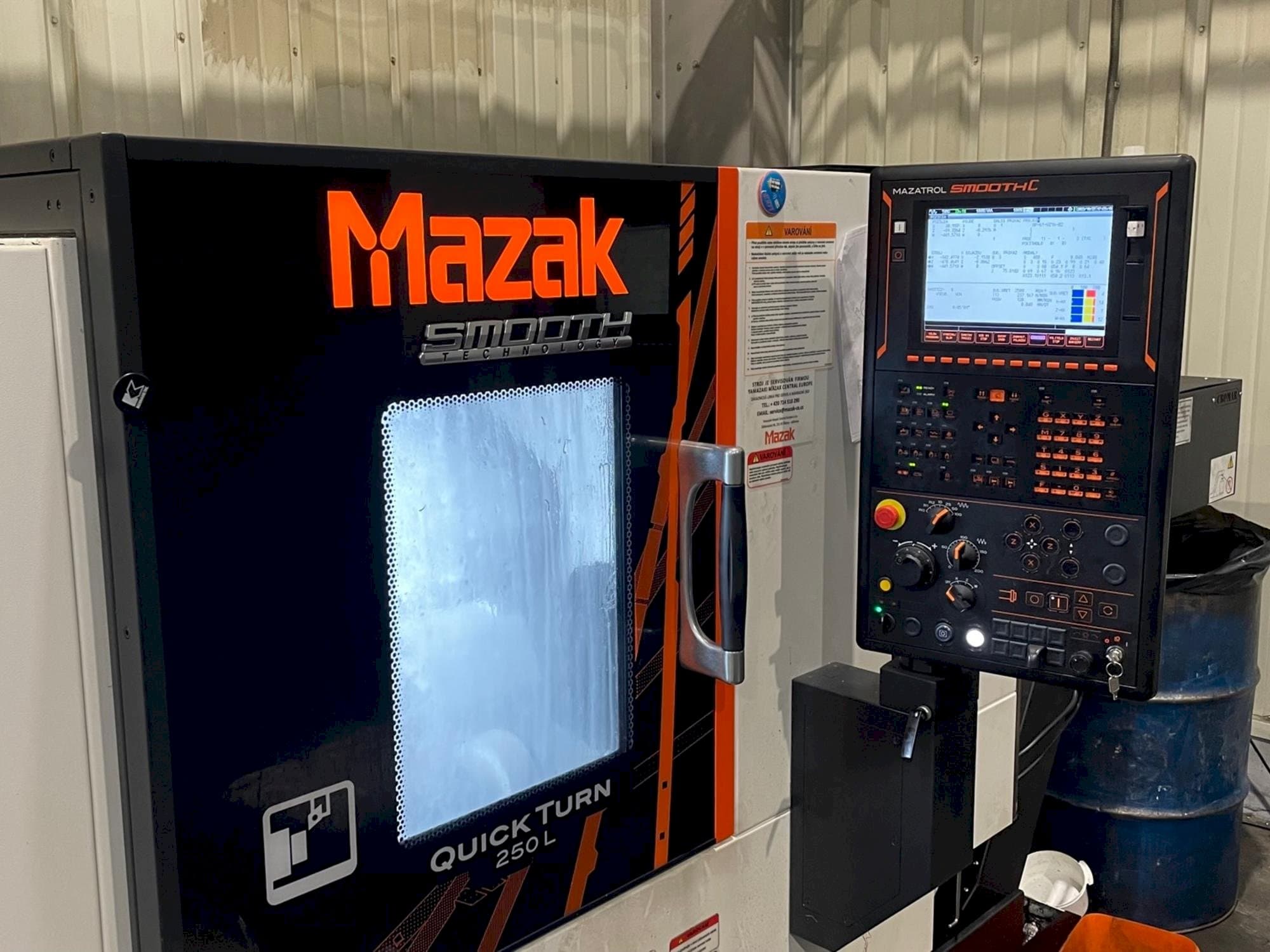

Front view of Mazak Quick Turn 250 L machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Quick Turn 250 L

Photo Gallery

Mazak - Quick Turn 250 LSK-TUR-MAZ-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Quick Turn 250 L lathe

Show in original language

This Mazak Quick Turn 250 L lathe was made in the year 2021 in China and has 1889 hours, of which 731 are cutting hours. It is equipped with a Mazatrol SmoothC control unit and has 2 axis. The machine has a spindle speed of 4000 rpm and is like new.

Overview

brand: Mazak
year: 2021
MODEL: Quick Turn 250 L
production hours: 1889
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn 250 L

General Data

Measurements width: 2630 mm
Measurements depth: 1680 mm
Measurements height: 1700 mm
Machine weight: 4850 kg

Control Unit

Model: SmoothC
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 225 mm
Z-AXIS Movement: 560 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Power consumption: 40.6 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing 660 mm
- - Maximum machining diameter 380 mm
- - Bar work capacity main spindle 80 mm
- - Max. Machining length 535 mm
- - Main spindle motor (30 min/cont. ) 18. 5/15 kw
- - Bar work capacity main spindle 80 mm
- - Chuck size main spindle 10 "
- - Maximum torque 358. 0 nm
- - Rapid traverse (x/z axis) 30/33 m/min
- - Tailstock, tool eye
Qualitative Machine Benefits:
- - Machine like new, in operation from 04/2022
- - Under mazak warranty

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
