Mazak - Quick Turn Smart 100 SCZ-TUR-MAZ-2011-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak Quick Turn Smart 100 S

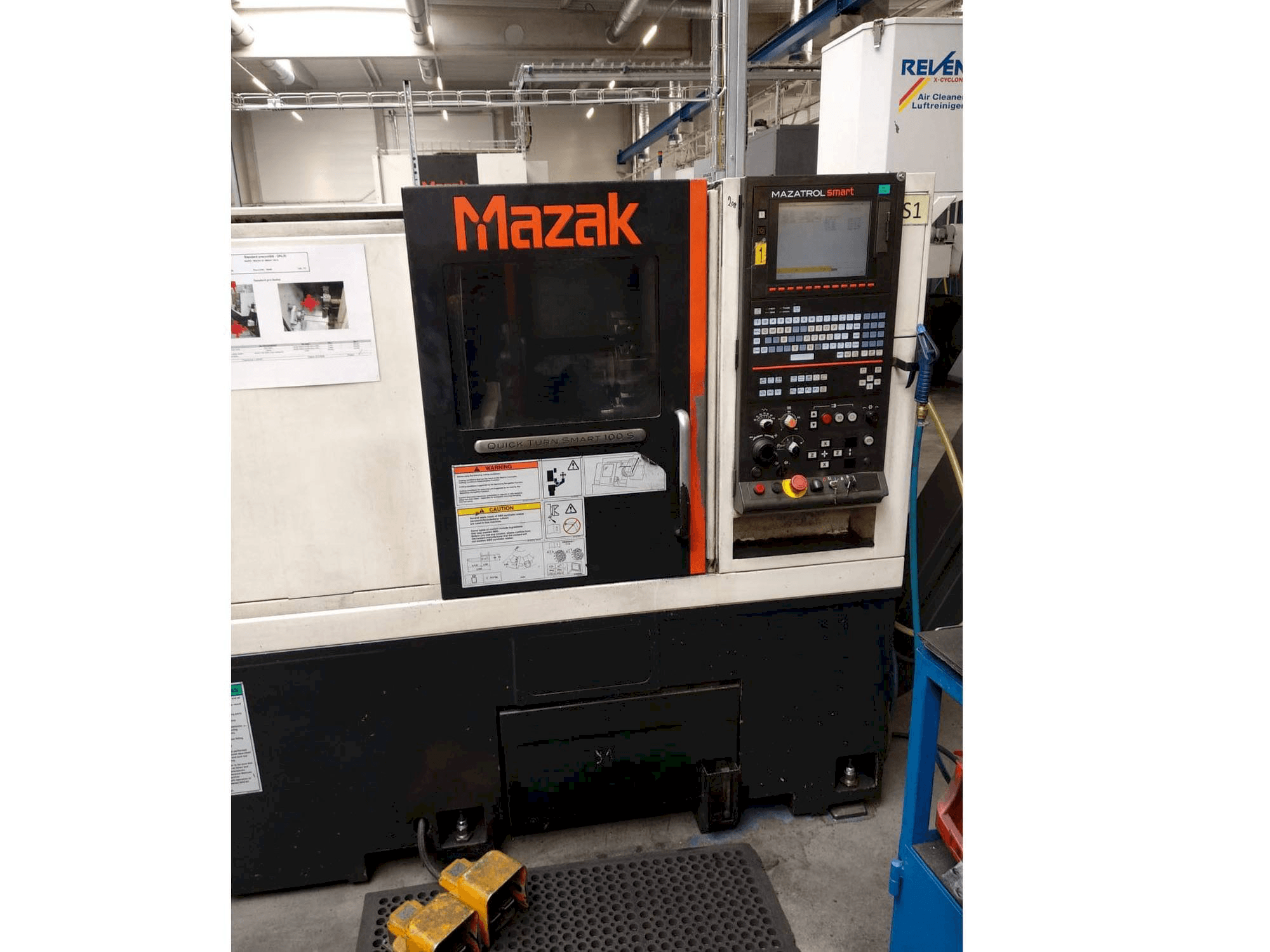

This Mazak Quick Turn Smart 100 S lathe was built in 2011 in Singapore. This 2 axis machine has a record of 36447 production hours. It is operated through a MAZATROL smart control unit. This machine works with a spindle speed up to 6000 rpm and a machining length 310 mm. It is in very good conditions.
Overview
- brand: Mazak
- year: 2011
- MODEL: Quick Turn Smart 100 S
- production hours: 36447
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak Quick Turn Smart 100 S
Control Unit
- Control Brand: MAZATROL
- Control Model: smart
Dimensions
- Machine Depth: 1630 mm
- Machine Height: 1800 mm
- Machine Weight: 3500 kg
Movement
- Number of Axes: 2
- X-axis Travel: 200 mm
- Z-axis Travel: 340 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 30 kW
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Max. Swing over bed 580 mm
- Maximum machining diameter 280 mm
- Maximum machining length 310mm
- Maximum bar work capacity 52 mm
- Chuck size 6 in
- Tailstock, coolant
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
