➤ Used Mazak Smart 530C Vertical Machining Center

Show in original language

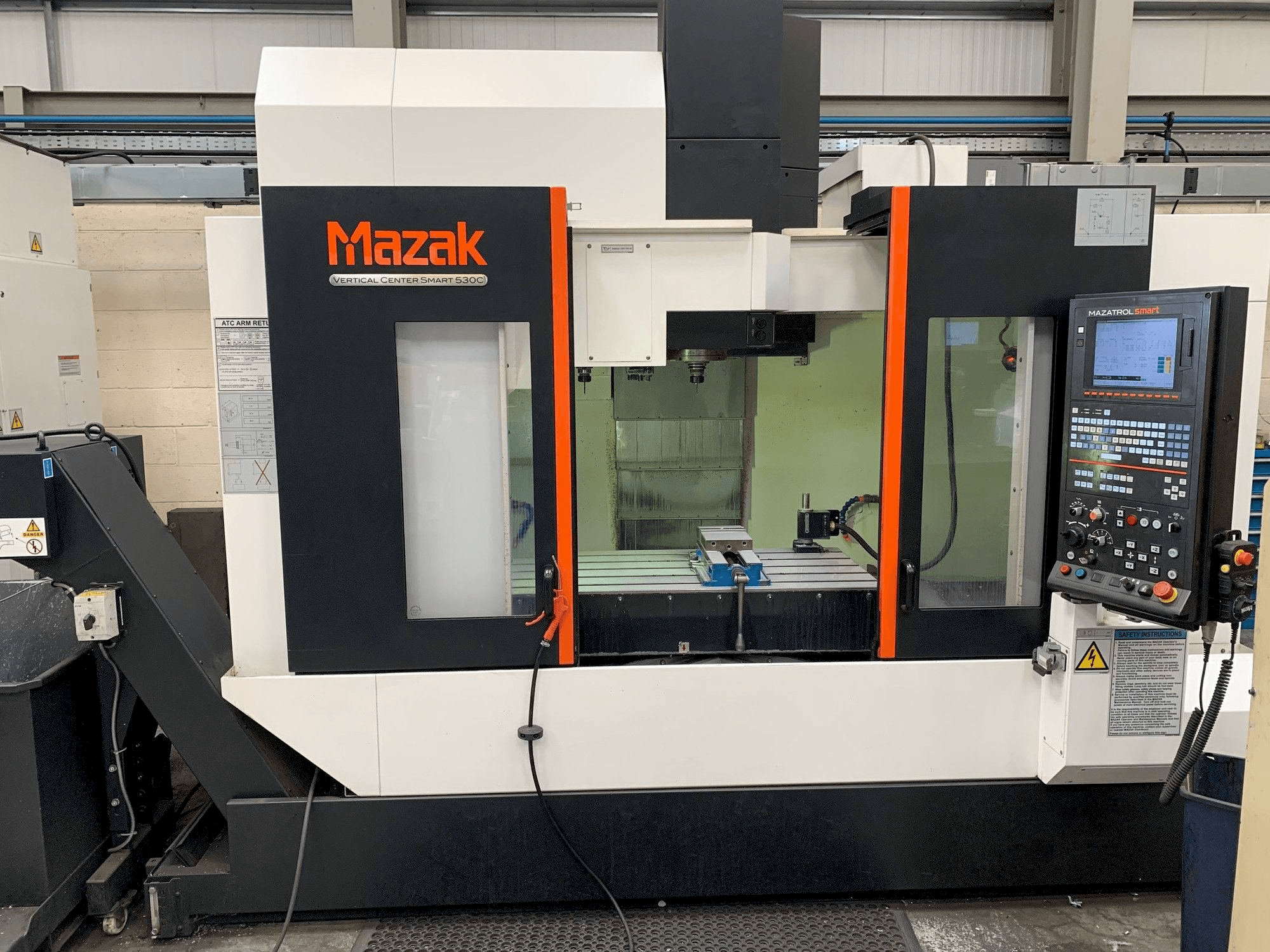

This Mazak Smart 530C Vertical Machining Center from 2014 was built in the United Kingdom. It has been operative for 10830 production hours since then. With a Mazak Mazatrol Smart control unit. This machine can work with a spindle speed range up to 12000 rpm. It is in very good conditions.

Overview

brand: Mazak
year: 2014
MODEL: Smart 530C
production hours: 10830
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Smart 530C

General Data

Measurements width: 2870 mm
Measurements depth: 2819 mm
Measurements height: 2870 mm
Machine weight: 6800 kg

Control Unit

Model: Mazatrol Smart
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 530 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1300 mm
Outer width: 550 mm

Tools

Slots in storage: 30
Type of tool holder: DIN 40

Media

Power consumption: 41,15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool breakage sensor
- - Interlocked guards
- - Coolant
- - Low volt light
- - Rapid feedrates x y z: 42 m/min
- - Max & min distance table-spindle 150 - 660 mm
- - Cooling thru spindle
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
