Mazak - VC PRIMOS 400SIT-MIL-MAZ-2016-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak VC PRIMOS 400S For sale | gindumac.com

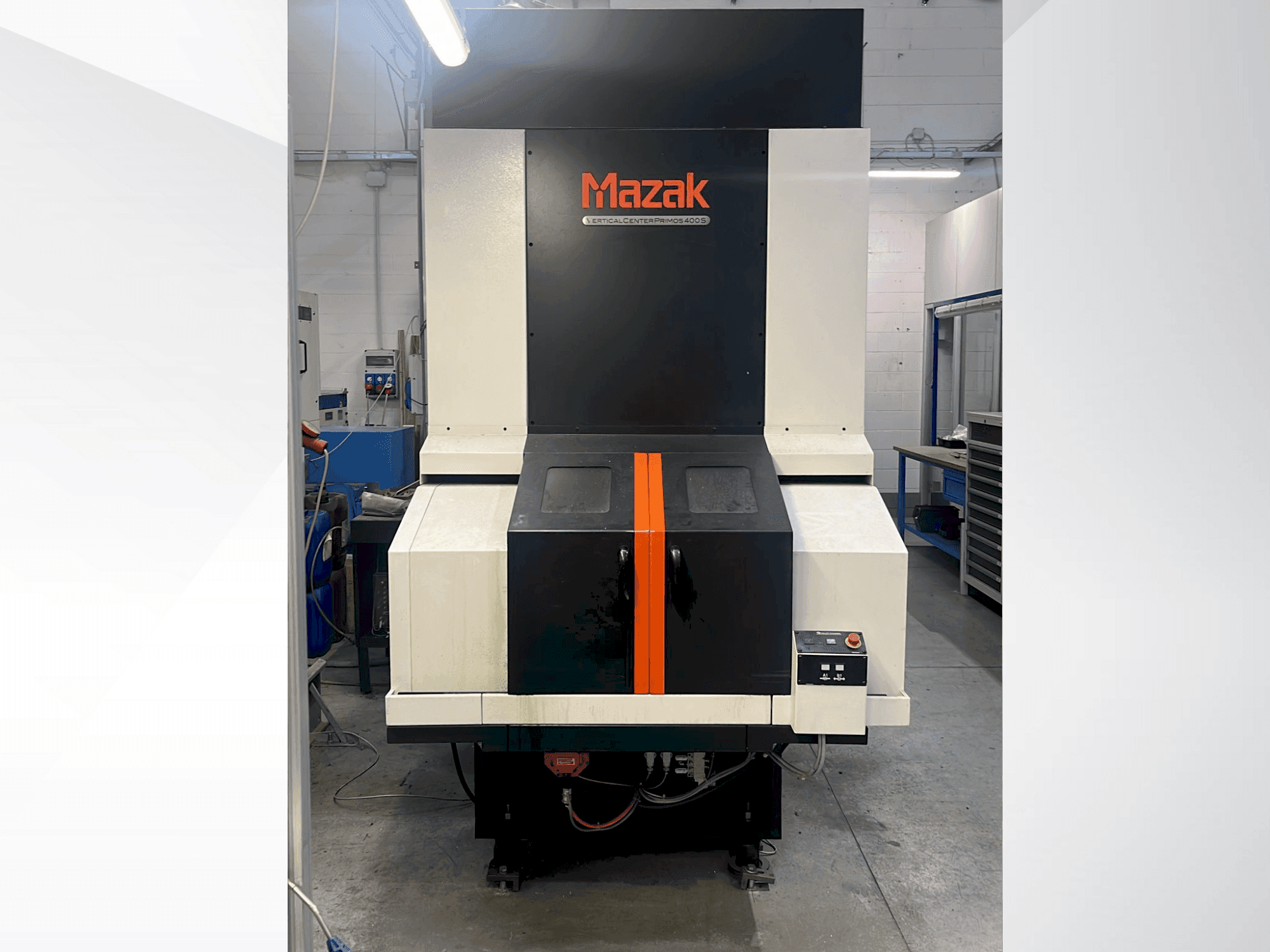

This 3-axis Mazak VC PRIMOS 400S was manufactured in 2016. This vertical machining center features a table size of 1500 x 670mm, a maximum load capacity of 1300kg, and a spindle speed of 20,000rpm. It includes a tool magazine with 20 places and 2 pallets. Ideal for precision machining, buy this Mazak VC PRIMOS 400S vertical machining center. Contact us for further details regarding this vertical machining center.
Overview
- brand: Mazak
- year: 2016
- MODEL: VC PRIMOS 400S
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Mazak VC PRIMOS 400S
Main drive
- Spindle speed range: 12000 1/MIN
- Tool taper: HSKA63
Movement
- X-AXIS Movement: 500 MM
- Y-AXIS Movement: 400 MM
- Z-AXIS Movement: 350 MM
Workpiece
- Workpiece weight: 1300 kg
Table
- Outer length: 1500 mm
- Outer width: 670 mm
- Table load: 1300 kg
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Rapid feed x-y-z 60 m/min
- - Table size 600 x 400 mm
- - Tool magazine 14 positions/ tool shank bt-30 accessories/chip conveyor
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
