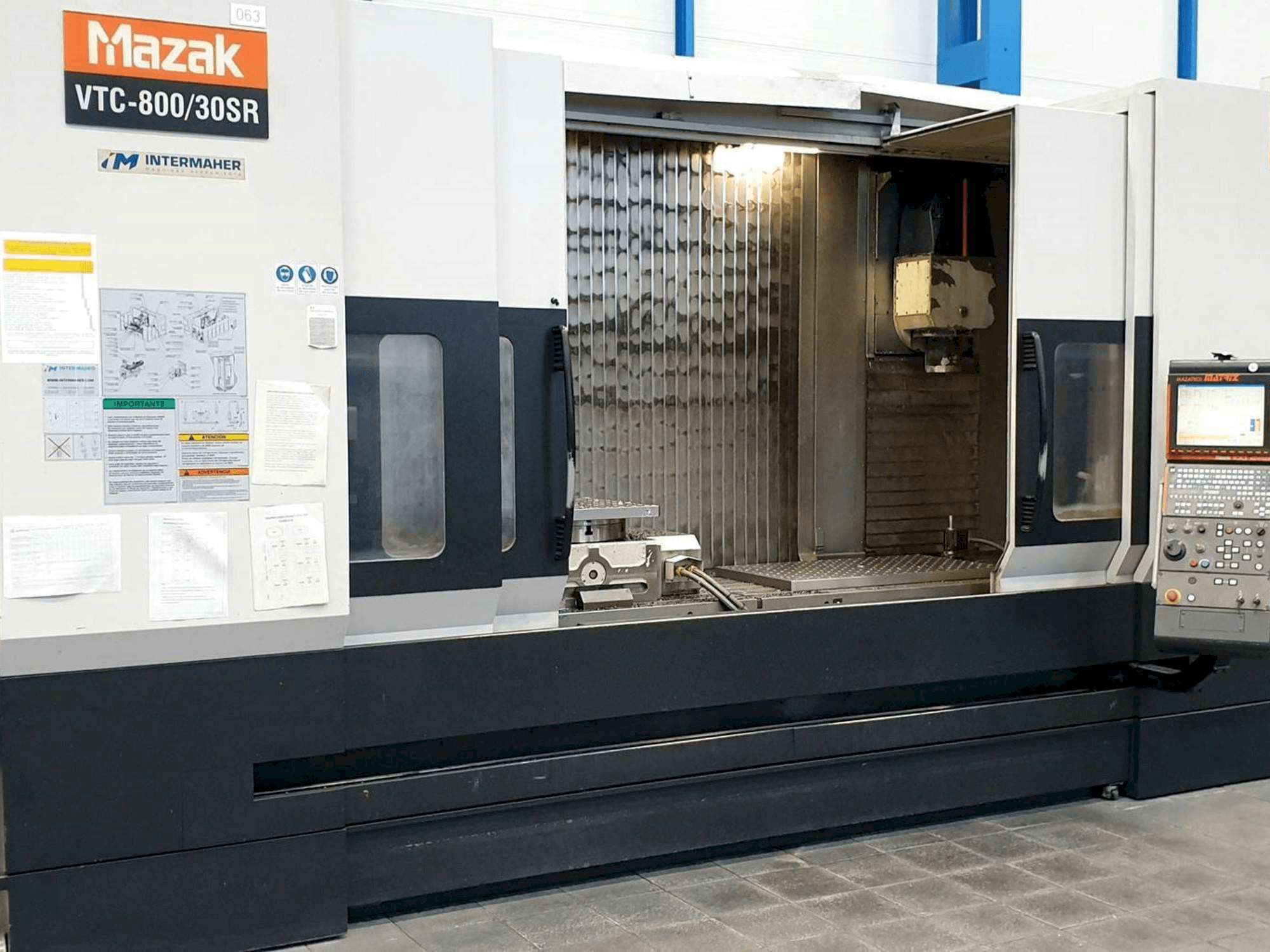

Front view of Mazak VTC-800/30SR machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak VTC-800/30SR

Photo Gallery

Mazak - VTC-800/30SRES-MIL-MAZ-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak VTC-800/30SR Vertical Machining Center

Show in original language

This Mazak VTC-800/30SR Vertical Machining Center was manufactured in 2010 in the United Kingdom and has been working for 41865 hours. Equipped with a Mazatrol Matrix Control unit, this 5 axis machine is capable of performing with a spindle speed up to 18000 rpm. The machine is equipped with both air and coolant cooling through the spindle.

Overview

brand: Mazak
year: 2010
MODEL: VTC-800/30SR
production hours: 41865
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VTC-800/30SR

General Data

Measurements width: 5250 mm
Measurements depth: 4174 mm
Measurements height: 3328 mm
Machine weight: 16300 kg

Control Unit

Model: Mazatrol Matrix
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 2500 kg

Table

Outer length: 3500 MM
Outer width: 820 mm
Number of tslots: 7
Distance between: 100 mm

Tools

Slots in storage: 48
Max weight: 8 kg
Max tool diameter: 130 mm
Max tool length: 350 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Spindle x axis replaced by a new one at 35583 hours
Repaired front telescopic, ram fairing and opening bellows for changing tools recently changed
The machine is equipped with both air and coolant cooling through the spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
