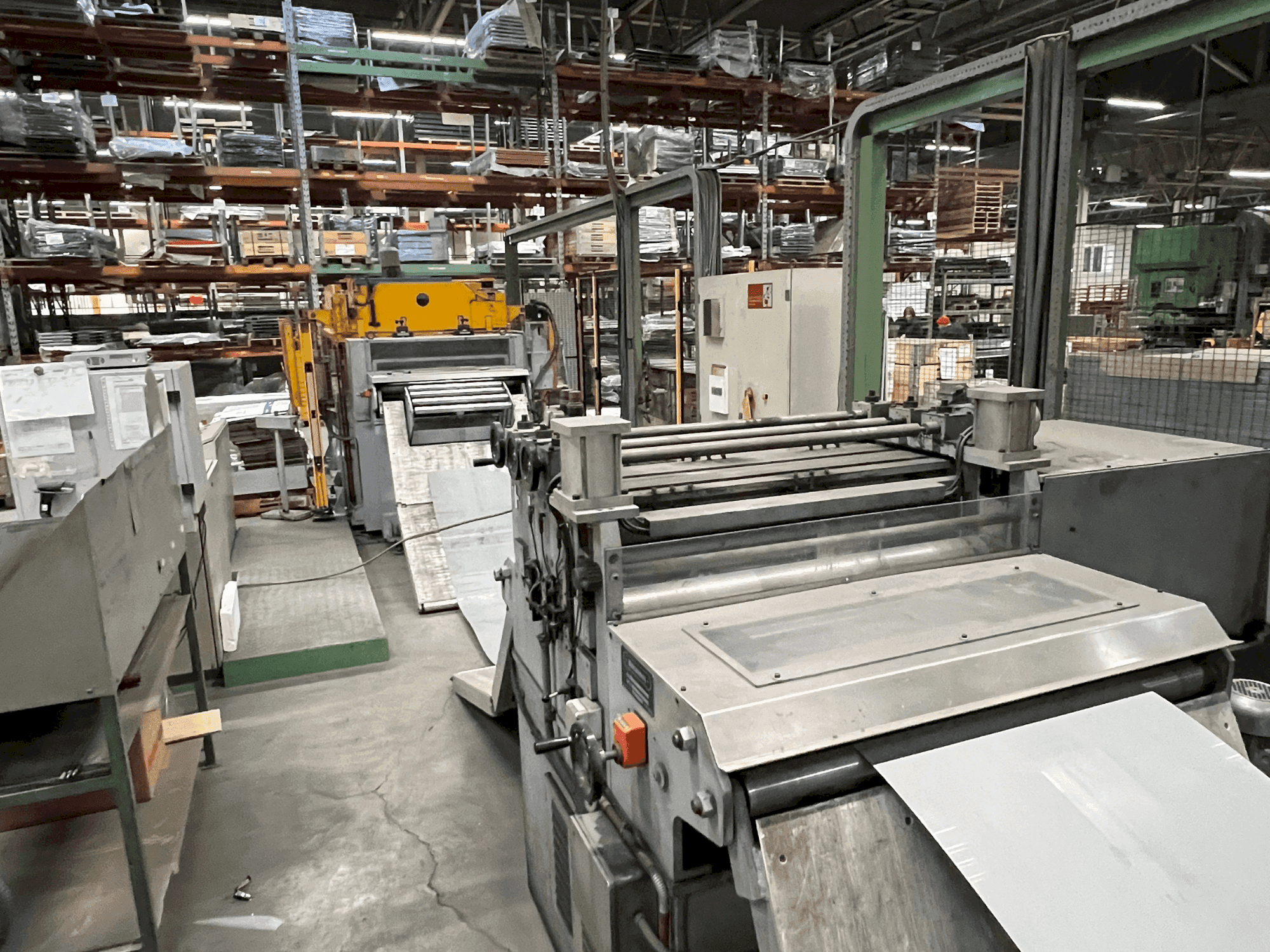

This MECASTEEL Coil Press Feeding Line was manufactured in 2001. Ideal for precise CNC punching operations, it ensures reliable performance and durability. Consider the opportunity to buy this MECASTEEL Coil Press Feeding Line. Contact us for more information.
Overview
- brand: MECASTEEL
- year: 2001
- MODEL: Coil Press Feeding Line
- application type: Punching
- Location: Belgium
- machine type: CNC Punch Press
- control unit brand:
Technical Information - MECASTEEL Coil Press Feeding Line
Dimensions
- Machine Depth: 1600 mm
- Machine Height: 2600 mm
Additional Information
Additional equipment
- Motorized Loading Coil Car: Handles coils up to 1000 mm wide and 5000 kg
- Motorized Decoiler: Maximum mandrel width of 1000 mm and a maximum load capacity of 5000 kg
- Motorized Straightener: Processes steel up to 1000 mm wide and 0.6-2 mm thick
- Electronic Feeding Unit: Features overlapped feeding rolls and adjustable guides
- Double Crank Mechanical Power Press: Capable of cutting 2 mm thick St37 steel with a 120-ton working pressure
- Hydraulic Shear: Handles coils up to 1000 mm wide and cuts up to 2 mm mild steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
