- MICROCUT BNC-2280XL Lathe
Show in original language

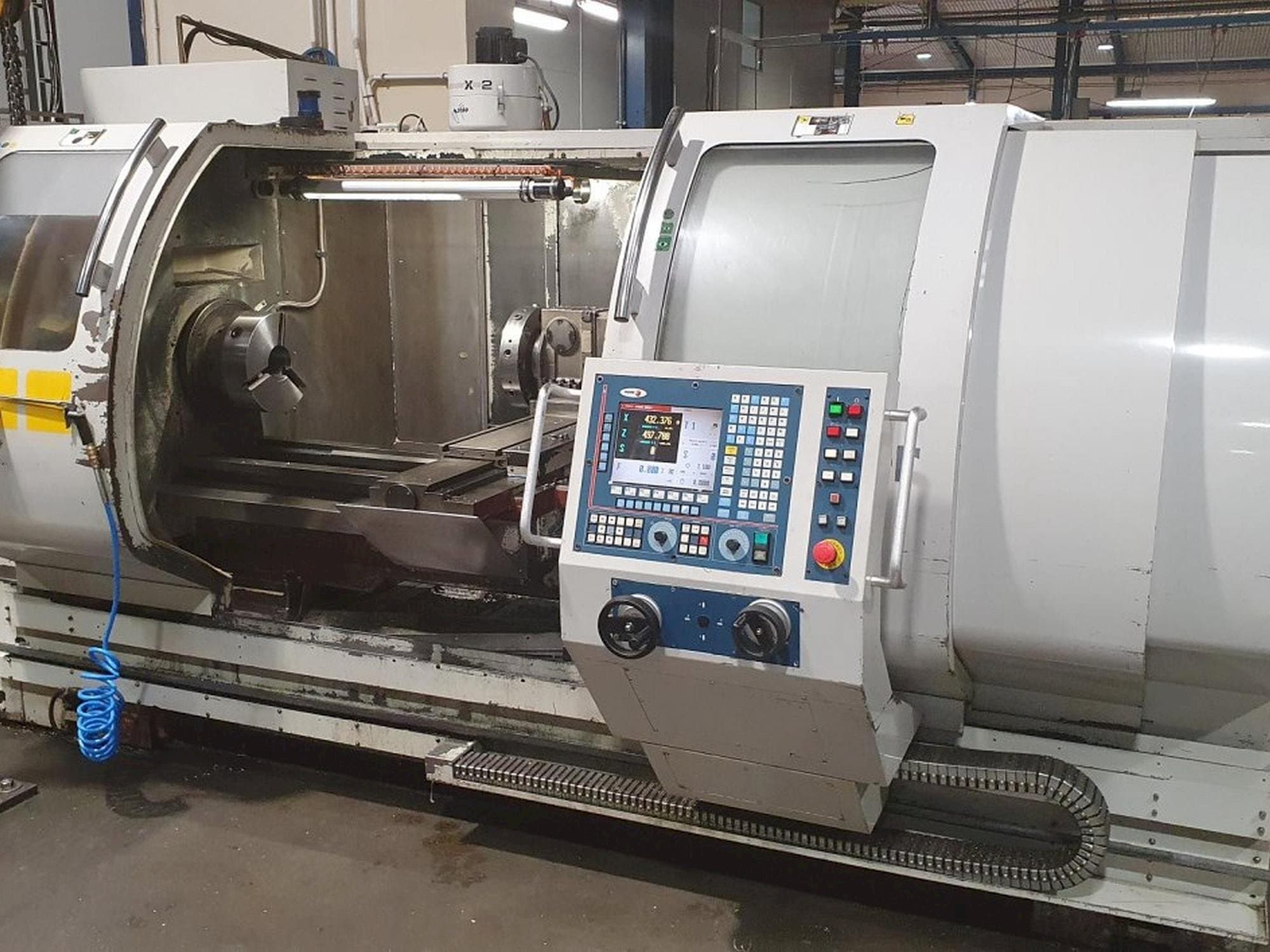

This MICROCUT BNC-2280XL Lathe was manufactured in the year 2005 in Taiwan. It is equipped with a Fagor 8055 control unit and has 2 axis. The machine has a spindle speed of 2500 rpm.
Overview
- brand: MICROCUT
- year: 2005
- MODEL: BNC-2280XL
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: FAGOR
Technical Information - MICROCUT BNC-2280XL
General Data
- Measurements width: 4190 mm
- Measurements depth: 2245 mm
- Measurements height: 2050 mm
- Machine weight: 5000 kg
Control Unit
- Model: 8055
- Brand: FAGOR
Main drive
- Spindle speed range: 2500 1/MIN
- Number of axis: 2
Additional Information
- Technical Machine Benefits:
- - Max turning diameter 570 mm
- - Max length of turning 2000 mm
- - Spindle passage 105,5 mm
- - Accessories included: 14 drill holders - boring, 10 knife holders
- - Chuck size 315 mm
- - Bar capacity 105. 5 mm
- - Swing 570 mm
- Qualitative Machine Benefits:
- - The machine has a manually operated clamping device, it was replaced last year
- - The machine's gearbox is overhauled recently
- - Chip conveyor needs a general maintenance service
- - Last internal inspection: 06. 2023 - cleaning the cabinet, replacing filters, repairing the gearbox, greasing points for lubrication.
- - Last maintenance service 11. 2022 - cleaning the hydraulic system, replacing the lubrication tank, cleaning the drive belts and lubricating the gearbox, checking and cleaning the electrical system.
- - The machine in working condition, ready for test.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
