MICROCUT LT-65

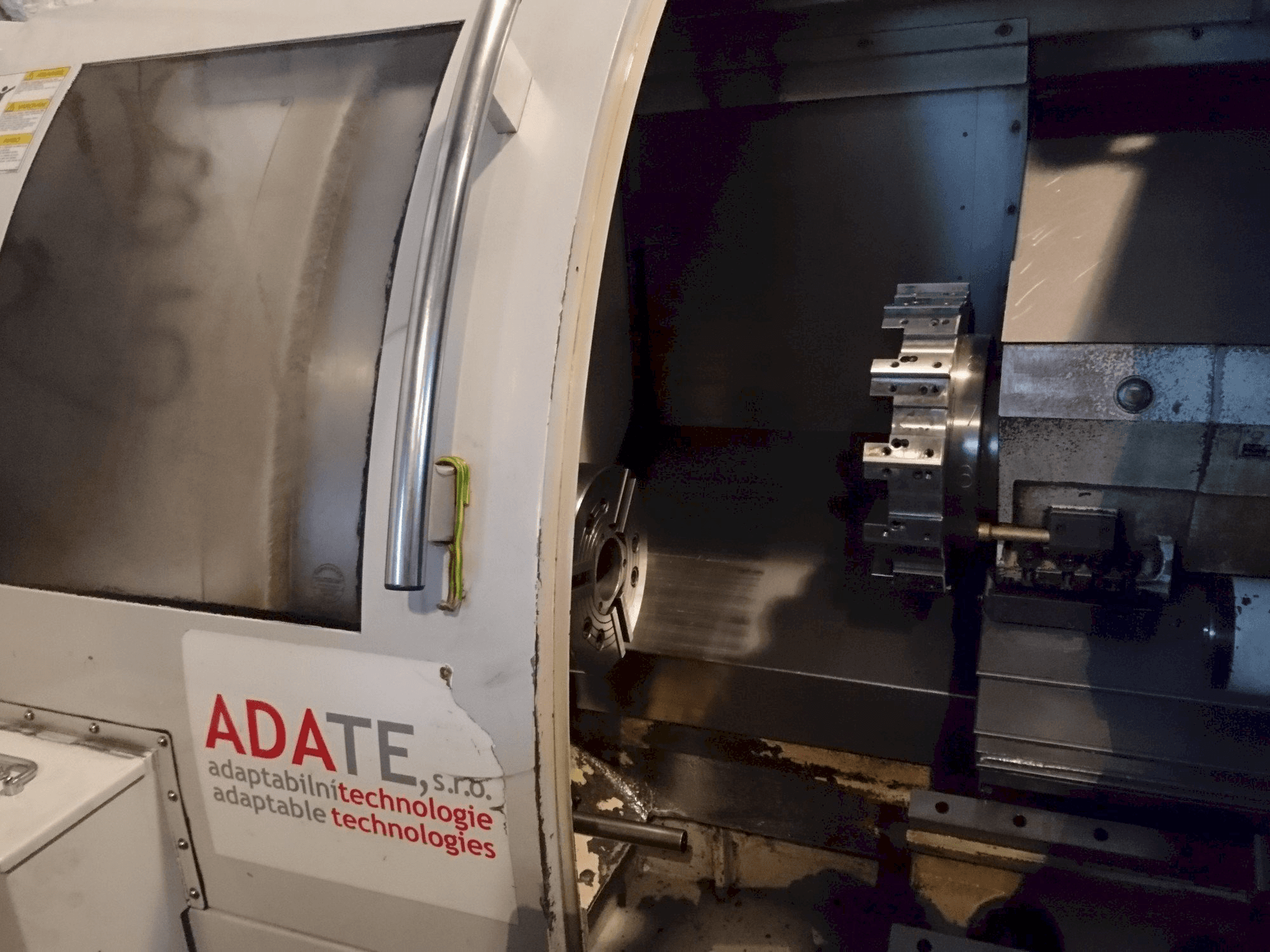

Photo Gallery

MICROCUT - LT-65CZ-TUR-MIC-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MICROCUT LT-65 Lathe

Show in original language

This MICROCUT LT-65 Lathe was manufactured in Taiwan in the year 2014. It has been operative for 25100 hours, which 5200 are spindle hours. It is equipped with a FANUC Series 0i-TD control unit. This machine can work with a spindle speed range up to 4000 rpm.

Overview

brand: MICROCUT
year: 2014
MODEL: LT-65
production hours: 25100
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - MICROCUT LT-65

General Data

Measurements width: 2530 mm
Measurements depth: 1820 mm
Measurements height: 1930 mm
Machine weight: 3070 kg

Control Unit

Model: Series 0i-TD
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 11/15 kW

Movement

X-AXIS Movement: 215 mm
Z-AXIS Movement: 520 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Cutting dia. 210 mm
- - Max. Cutting length 460 mm
- - Bar capacity 65 mm
- - Chuck size 215 mm
- - Rapid feed (x&z) 30 m/min
- - Parts catcher
- - Bar feeder pro v65e
- - Tailstock
Qualitative Machine Benefits:
- - Renishaw tool setter (new in 2019)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
