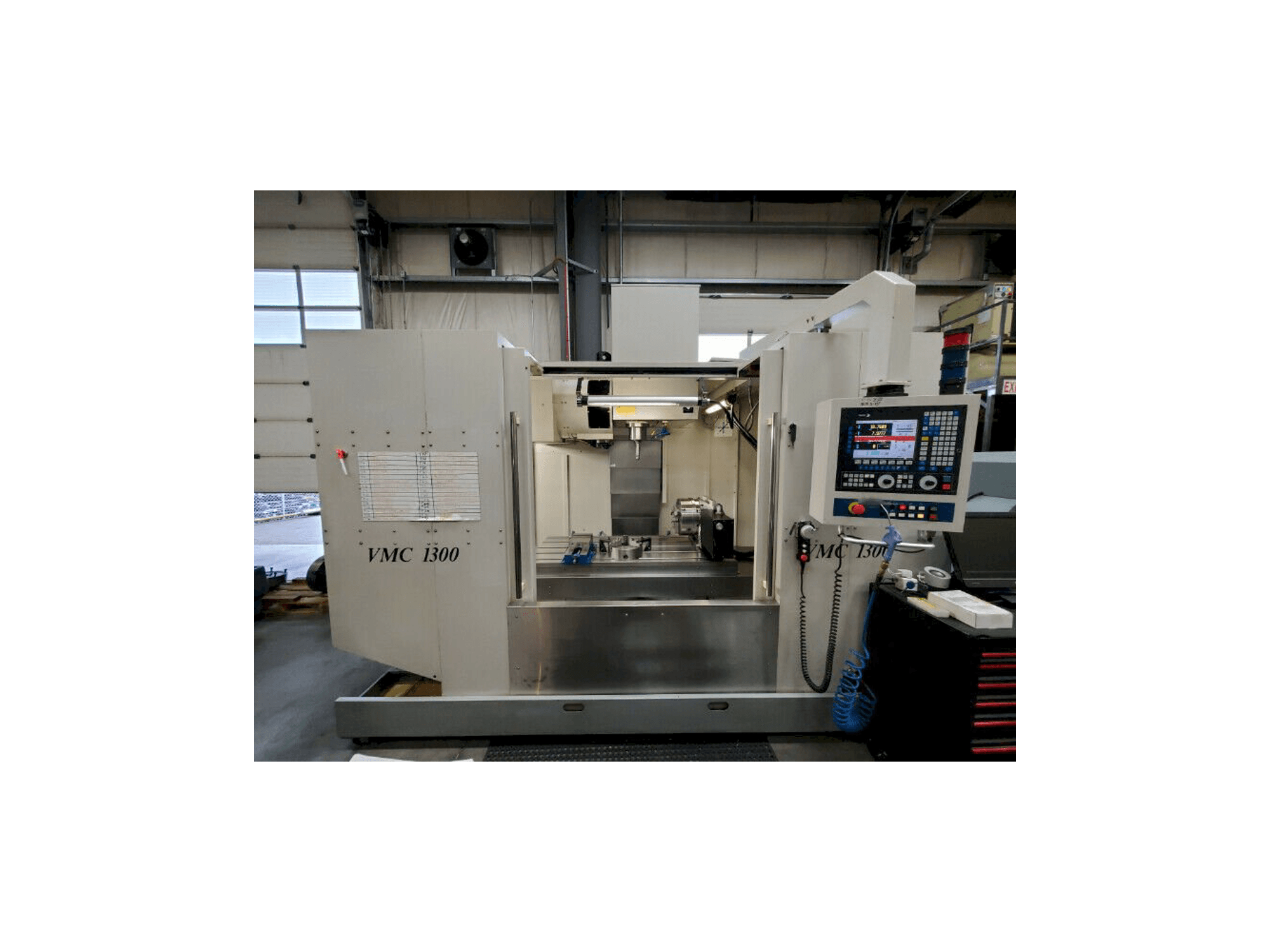

Front view of Modern Microcut VMC 1300 machine

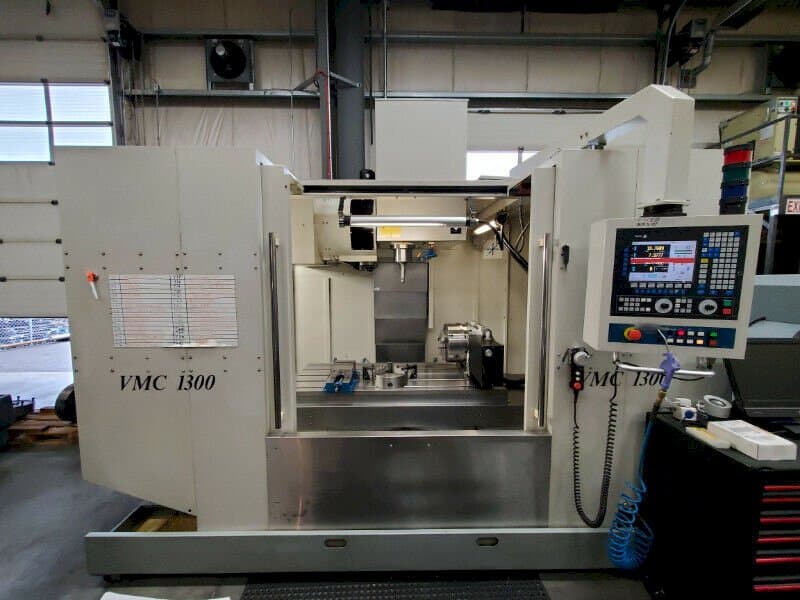

Front view of Modern Microcut VMC 1300 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

MICROCUT - Modern VMC 1300CA-MIL-MIC-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Microcut Modern VMC 1300 Vertical Machining Center was made in 2006. This reliable machine can work with a spindle speed up to 10000 rpm.

Overview

  • brand: MICROCUT
  • year: 2006
  • MODEL: Modern VMC 1300
  • application type: Milling
  • Location: Canada
  • machine type: Vertical Machining Centre

Technical Information - MICROCUT Modern VMC 1300

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 11/15 kw

Movement

  • X-AXIS Movement: 1300 mm
  • X-AXIS Working Feed: 8 m/min
  • X-AXIS Rapid traverse: 24 m/min
  • Y-AXIS Movement: 710 mm
  • Y-AXIS Working Feed: 8 m/min
  • Y-AXIS Rapid traverse: 24 m/min
  • Z-AXIS Movement: 710 mm
  • Z-AXIS Working Feed: 8 m/min
  • Z-AXIS Rapid traverse: 24 m/min

Table

  • Outer length: 500 mm
  • Outer width: 660 mm
  • TSlots size: 18 X 135 X 6 mm
  • Min distance between vertical spindle and table: 120 mm
  • Max distance between vertical spindle and table: 830 mm
  • Table load: 1500 kg

Tools

  • Number of stations: 32
  • Max weight: 8 kg
  • Max tool diameter: 75 mm
  • Max tool length: 300 mm
  • Type of tool holder: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits

  • Spindle diameter: 70 mm
  • Atc type arm
  • 32 tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
