MicroStep HS 3001.15 P Plasma Cutting Machine

Show in original language

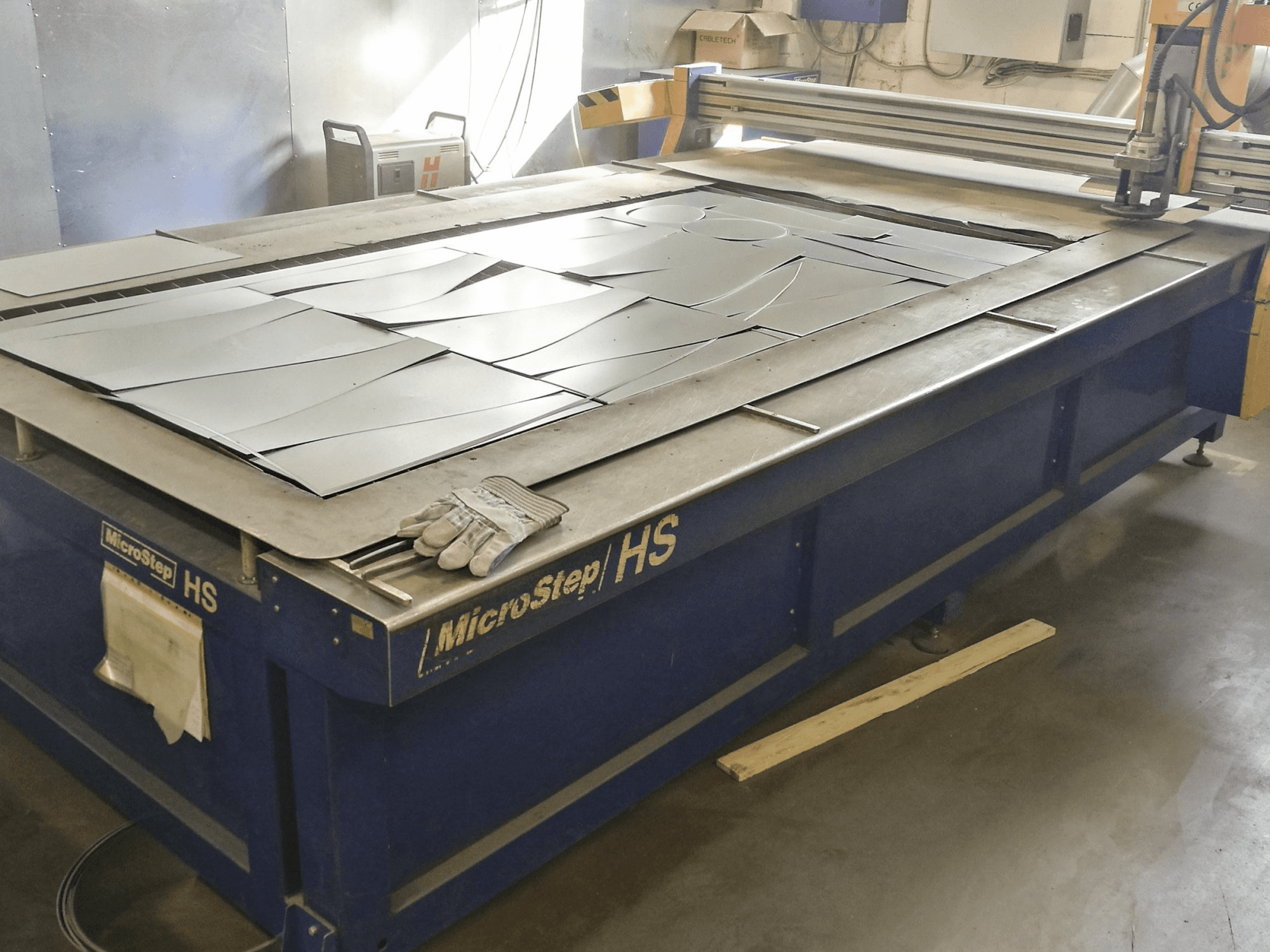

This MicroStep HS 3001.15 P Plasma Cutting Machine was manufactured in 2004 in Slovakia and has a working record of 11042 production hours. This well maintained machine is equipped with a MicroStep MSNC RO2 Control unit and comes with an additional air filter system, drawing off noxious emissions during operation. During the past, this equipment has mainly worked with galvanized steel up to 1 mm of thickness.

Overview

brand: MicroStep
year: 2004
MODEL: HS 3001.15 P
production hours: 11042
application type: Cutting
Location: Lithuania
machine type: Plasma Cutting Machine
availability: Sold
control unit brand: MicroStep

Technical Information - MicroStep HS 3001.15 P

General Data

Measurements width: 2912 mm
Measurements depth: 3900 mm
Measurements height: 1600 mm
Machine weight: 2500 kg

Control Unit

Model: MSNC RO2
Brand: MicroStep

Movement

X-AXIS Movement: 3100 mm
Y-AXIS Movement: 1530 mm
Z-AXIS Movement: 200 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Media

Main electronic connection: 230 V / 50 Hz
Power consumption: 2.2 kVA

Additional equipment

- Air filter system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
