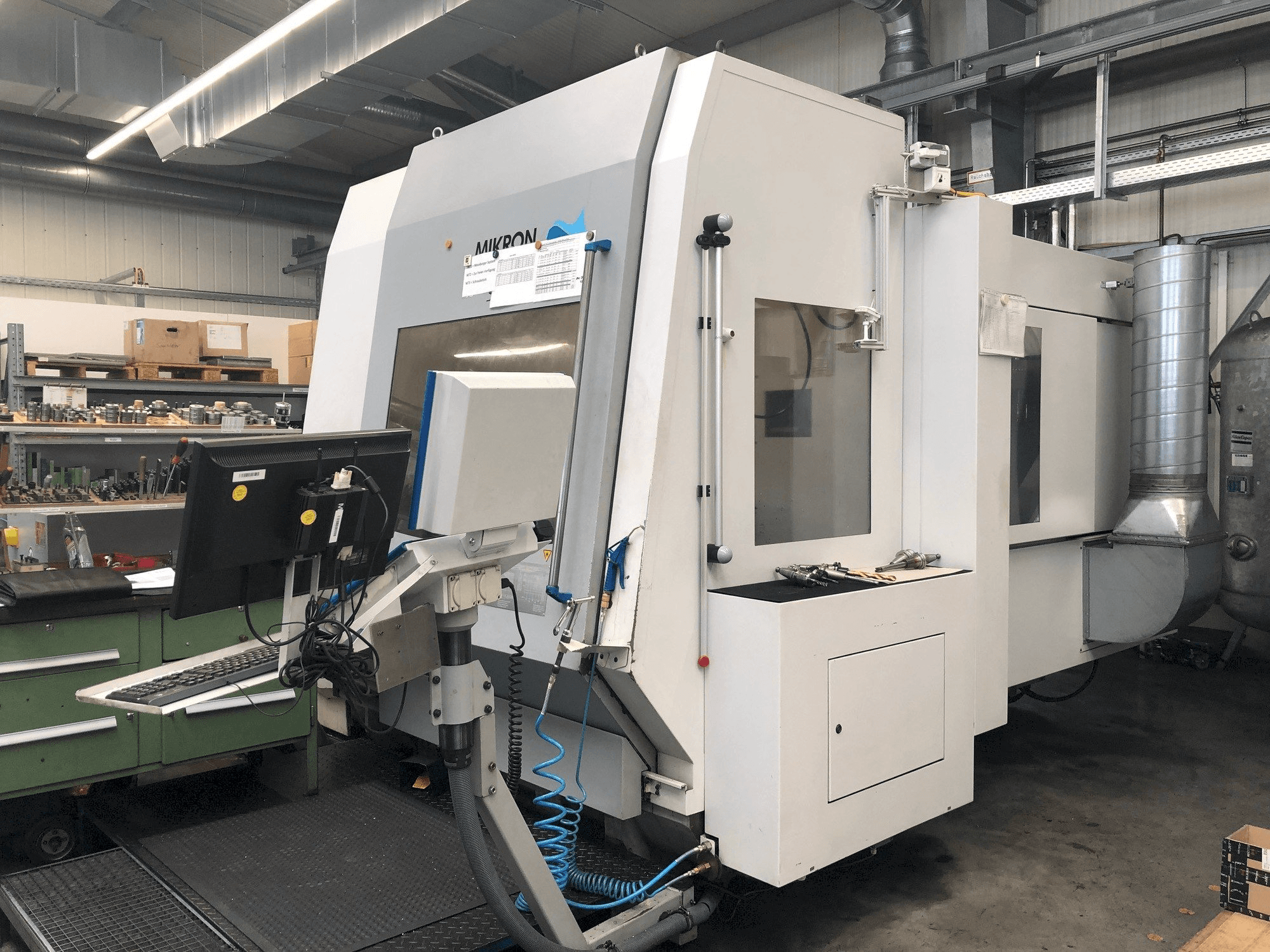

MIKRON UCP 1150 Universal Machining Center

Show in original language

This MIKRON UCP 1150 Universal Machining Center was manufactured in 2003 in Switzerland and has been operative for 10922 hours. Operated through a Heidenhain iTNC 530 control unit, this model counts with a spindle speed of 12000 rpm.

Overview

brand: MIKRON
year: 2003
MODEL: UCP 1150
production hours: 10922
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP 1150

General Data

Measurements width: 4130 mm
Measurements depth: 3680 mm
Measurements height: 3150 mm
Machine weight: 11150 kg

Control Unit

Model: iTNC 530
CNC main language: German
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1150 mm
Z-AXIS Movement: 700 vertical/895 horizontal MM
A-AXIS Movement: 15° / -120° MM

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1000 mm
Outer width: 920 mm

Tools

Slots in storage: 46
Max weight: 8 kg
Max tool diameter: 130 mm
Max tool length: 300 mm
Type of tool holder: SK40

Media

Main electronic connection: 24 KW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
