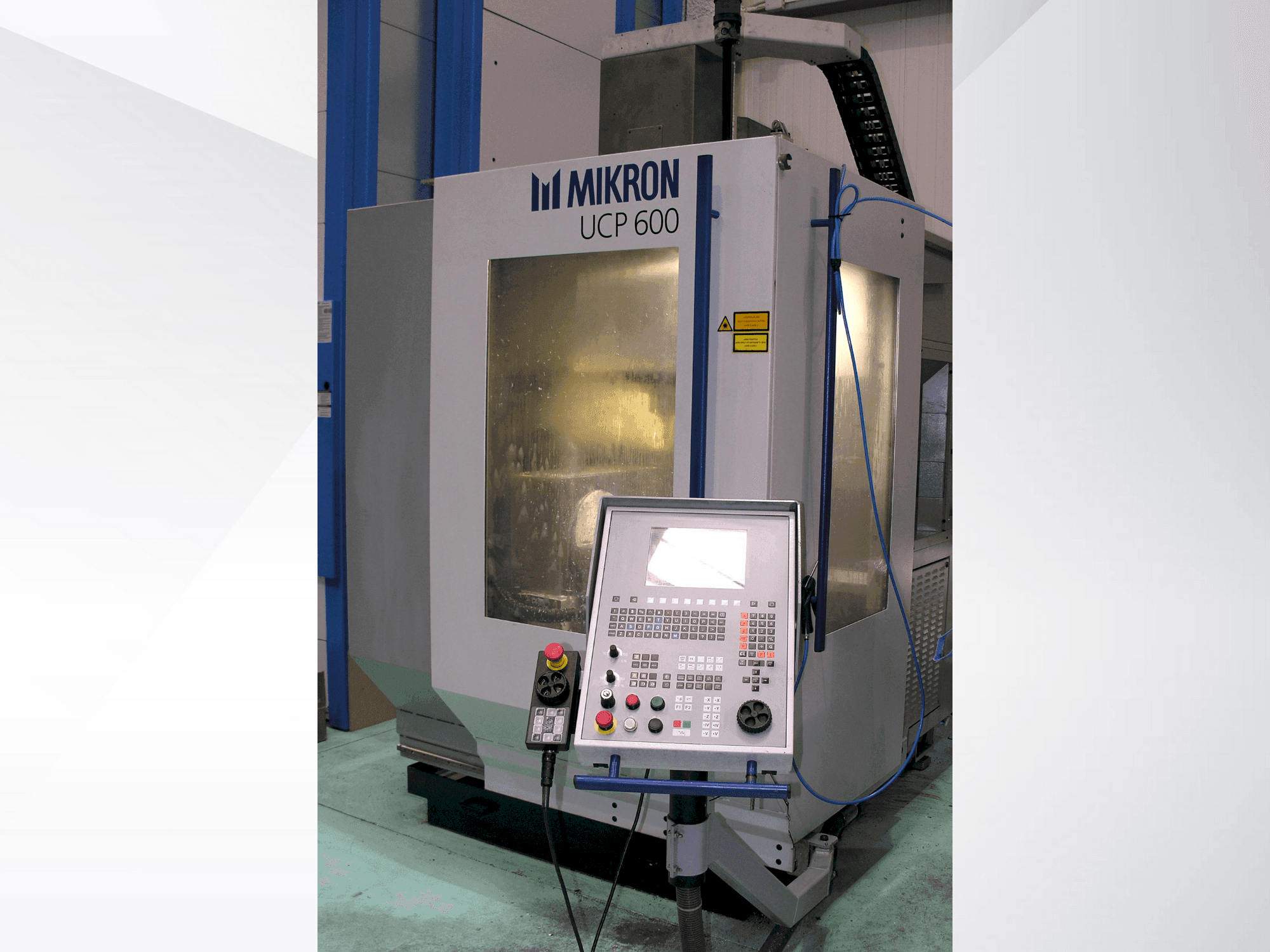

This 5-axis MIKRON UCP 600 vertical machining center was manufactured in 2000. It features a spindle speed of 42,000 rpm, a spindle power of 14 kW, and a rapid feed rate of 22 m/min. The machine includes a Heidenhain 430M CNC, Renishaw OMP 40 probe, and can handle a maximum table load of 200 kg. Ideal for complex and precise machining tasks, the MIKRON UCP 600 machine we have for sale is well-maintained and upgraded. Contact us for further details.
Overview
- brand: MIKRON
- year: 2000
- MODEL: UCP 600
- application type: Milling
- Location: Spain
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MIKRON UCP 600
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 430M
Dimensions
- Table Load: 200 kg
Movement
- X-axis Travel: 530 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 450 mm
Technical Specification
- Number of Tools: 36
- Spindle Power: 14 kW
- Spindle Speed: 42 RPM
Additional Information
Additional equipment
- Workpiece Measurement Probe: Renishaw OMP 40
- Workpiece Breakage Probe: BLUM (included but not installed)
- Thermal cones, collet chucks, and Franken PGR holders
- Custom-made post-processor for Mastercam with direct machine simulation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
