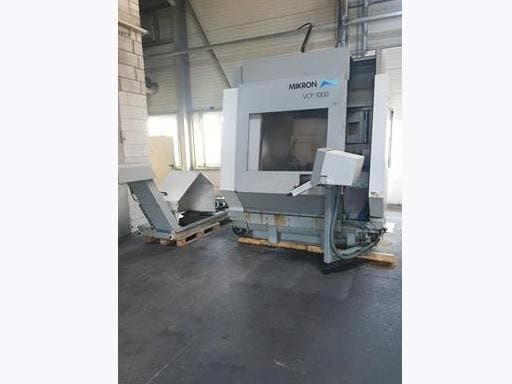

MIKRON VCP 1000 Vertical Machine Center

Show in original language

This MIKRON VCP 1000 Vertical Machine Center was manufactured in 1999. The 3 axis machine operated through a Heidenhain 426 control unit. This machine has a spindle speed up to 24000 rpm.

Overview

brand: MIKRON
year: 1999
MODEL: VCP 1000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 1000

General Data

Measurements width: 3100 mm
Measurements depth: 5220 mm
Measurements height: 2840 mm
Machine weight: 9000 kg

Control Unit

Model: 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 24000 1/MIN

Table

Outer length: 1150 mm
Outer width: 700 mm
Min distance between vertical spindle and table: 115 mm

Media

Main electronic connection: 400 Volt
Power consumption: 40 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Handling device

Technical Machine Benefits

Longitudinal travel (x axis): 1000 mm
Cross travel (y axis): 750 mm
Vertical travel (z-axis): 750 mm
Tool changer: 30-fold
Maximum tool length: 305 mm
Tool holder: hsk 63
Rapid traverse: 22 m/min
B7kkv0pi
Tool magazine 30-fold
Oil cooler

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
