Mitsubishi M65J

Photo Gallery

Mitsubishi - M65JIT-EDM-MIT-1992-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

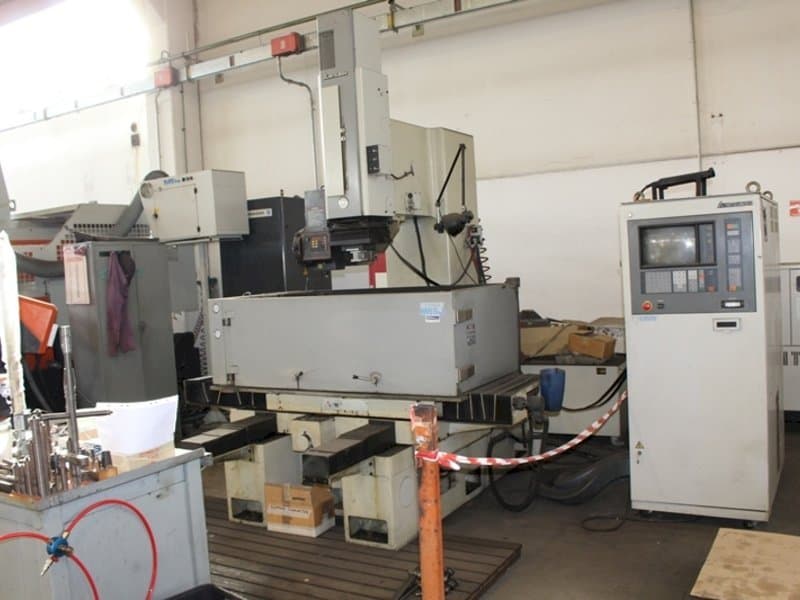

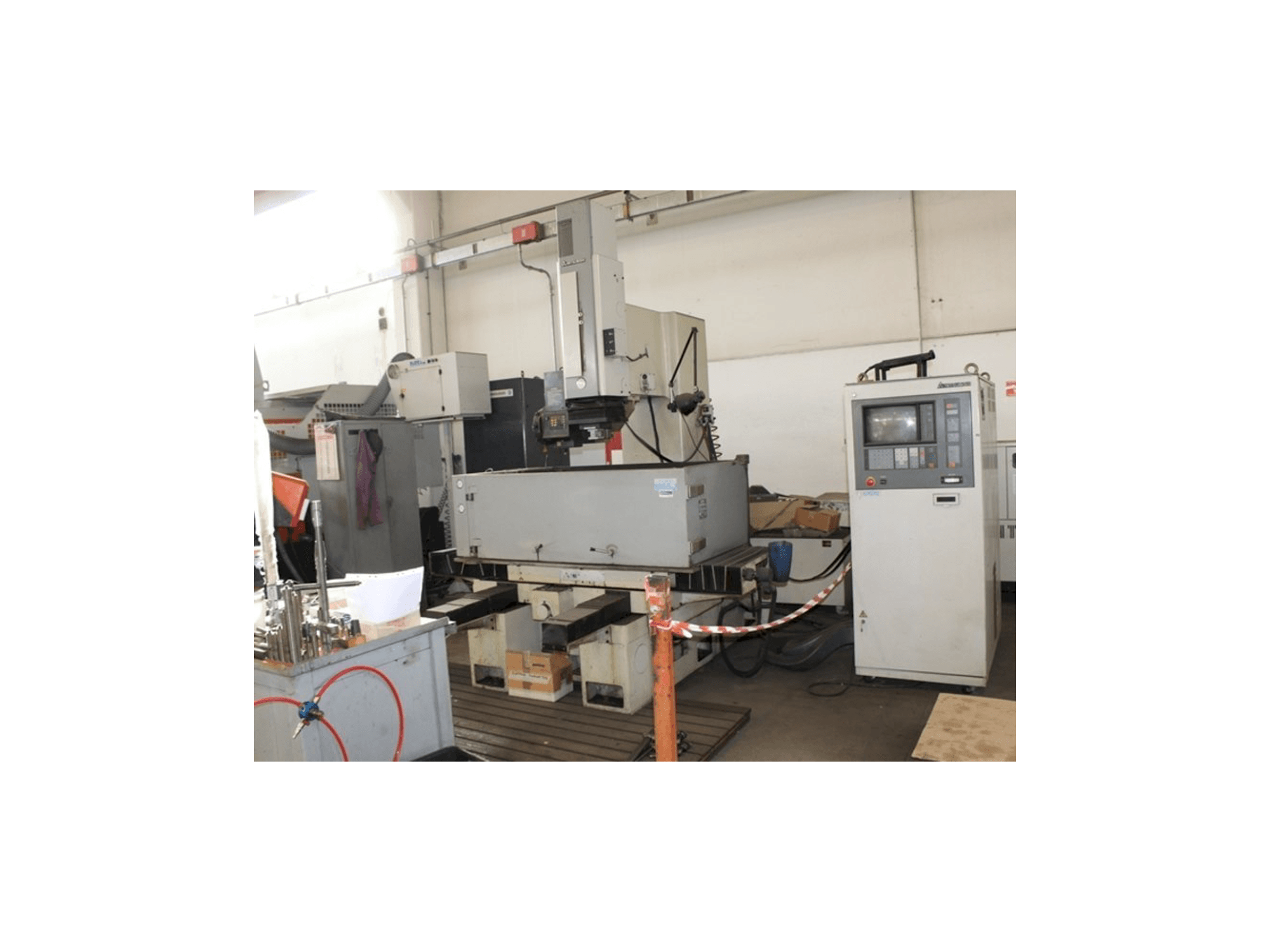

Mitsubishi M65J Erosion Machine

Show in original language

This Mitsubishi M65J Erosion Machine was manufactured in the year 1992. Equipped with a Mitsubishi control unit. This machine includes a table size of 1000 x 600 mm that can work with a maximum workpiece weight 1500 kg.

Overview

brand: Mitsubishi
year: 1992
MODEL: M65J
application type: EDM
Location: Italy
machine type: Wire EDM Machine
control unit brand: MITSUBISHI

Technical Information - Mitsubishi M65J

General Data

Measurements width: 2240 mm
Measurements depth: 2280 mm
Measurements height: 2745 mm
Machine weight: 5000 kg

Control Unit

Brand: MITSUBISHI

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 1000 mm
Outer width: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits

External tank 1400x800x500 mm
Int. 1300x750x410 mm
Tank capacity lt 720
Working piece size mm. 1250x500x310
Max size electrode mm. 300x250
Min-max light. Table-head mm. 250x600
Max weight electrode kg. 200

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
