Mitutoyo B-231 Measuring Machine

Show in original language

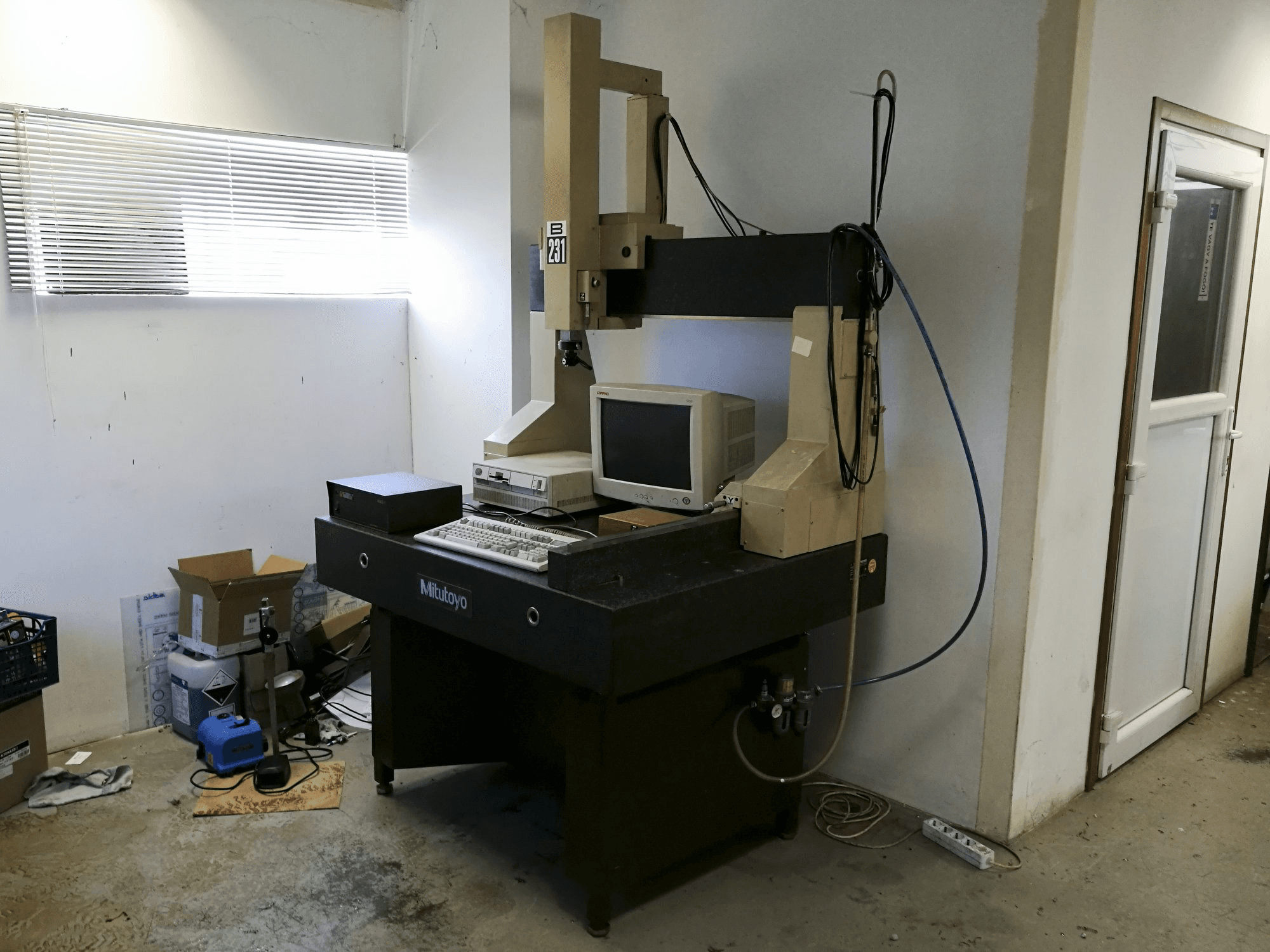

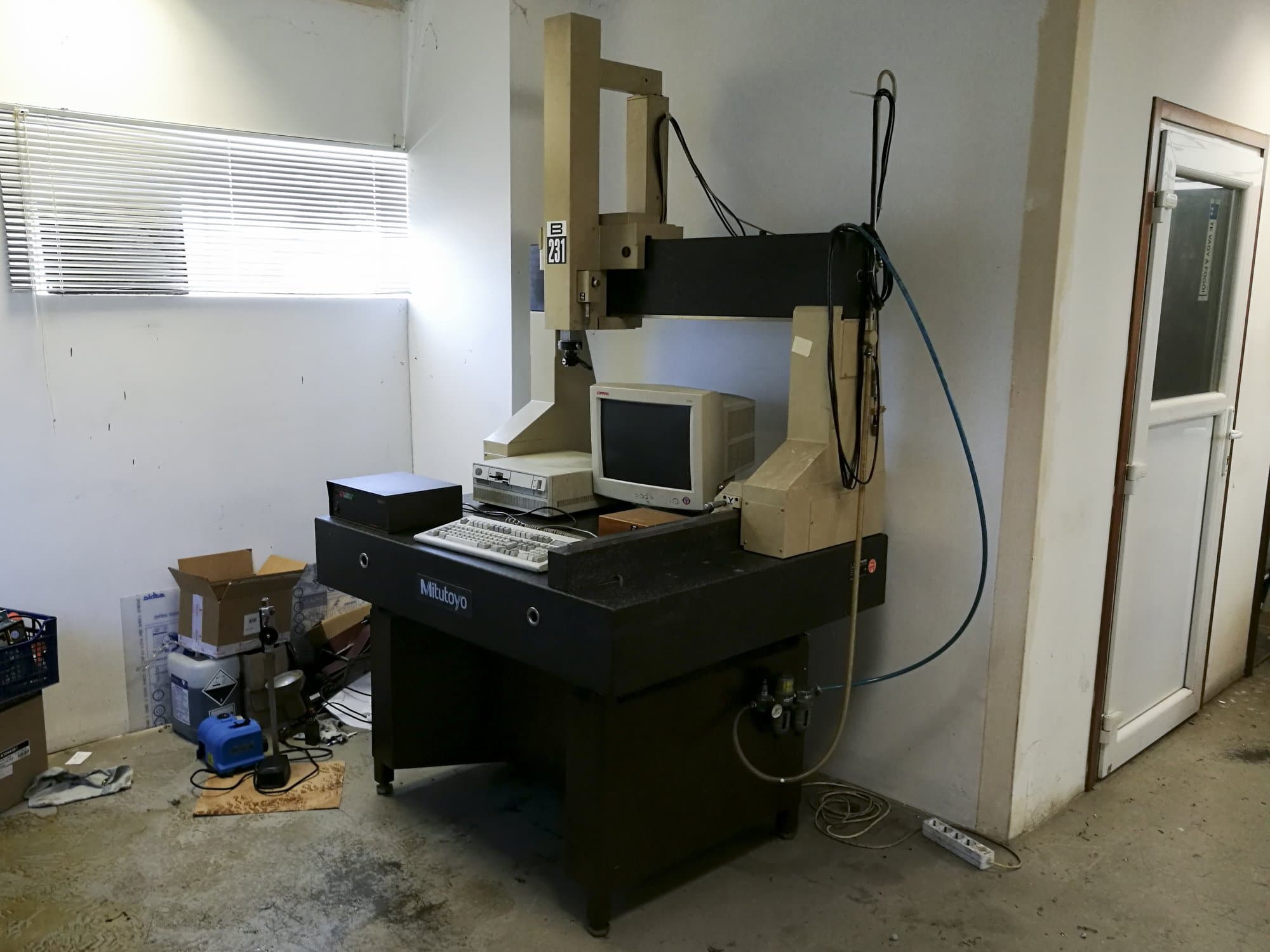

This Mitutoyo B-231 Measuring Machine was manufactured in 1987 in Japan and is equipped with a MITUTOYO MAG-1 Control unit. This model stands out due to its large working table and the wide range of movement. The machine is in very good conditions and includes a computer, cables, a Renishaw measuring probe as well as a calibration sphere in the delivery.

Overview

brand: Mitutoyo
year: 1987
MODEL: B-231
application type: Measuring
Location: Hungary
machine type: Coordinate Measuring Machine (CMM)
availability: Sold

Technical Information - Mitutoyo B-231

General Data

Measurements width: 1320 mm
Measurements depth: 1120 mm
Measurements height: 2350 mm
Machine weight: 1400 kg

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 450/600 mm

Workpiece

Workpiece y: 500 mm
Workpiece weight: 500 kg

Table

Outer length: 1100 mm
Outer width: 800 mm

Media

Main electronic connection: 230 V
Internal cooling: Yes

Additional equipment

- Computer
- Cables
- RENISHAW PH1 Measuring Probe
- Calibration sphere

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
