Monforts - RNC 200ADE-TUR-MON-2000-00001

Name: Monforts RNC 200A
Brand: Monforts
SKU: DE-TUR-MON-2000-00001
Price: 1295250 INR
Availability: InStock

Rs. 1,295,250

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used QUASER MV204-CU/12 For sale | gindumac.com

Show in original language

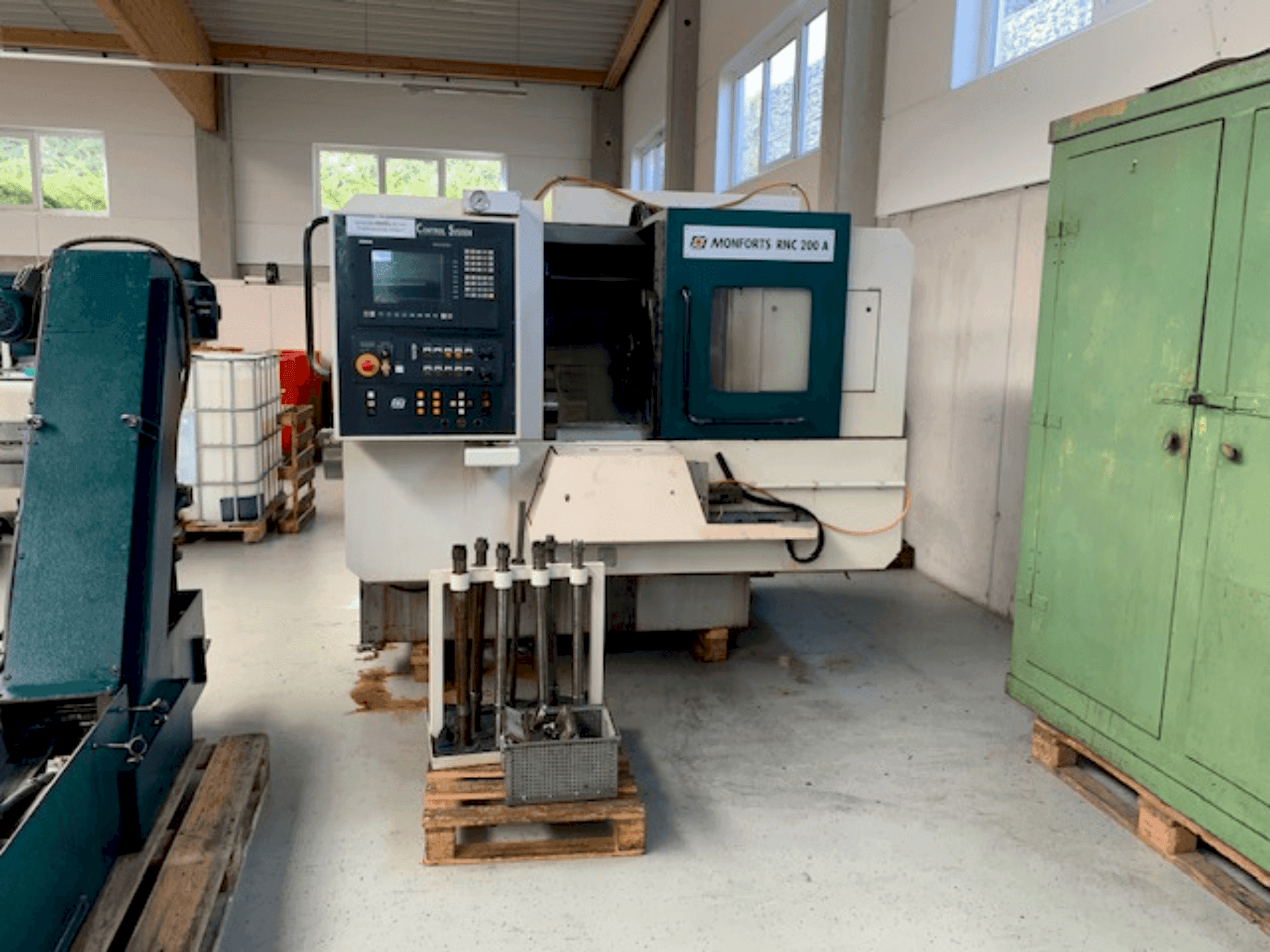

This MONFORTS RNC 200A lathe was manufactured in 2000. It features a maximum orbital diameter of 300mm and a turning length of 250mm. The main spindle supports a speed range of 50-6000 rpm, with a material passage of 42mm. Equipped with 12 driven stations and rapid traverse rates of 24m/min on the X/Z-axis, this machine ensures efficient and precise turning operations. The MONFORTS RNC 200A machine we have for sale is ready to meet your production needs. Delivery scope does not include a bar feeder. Contact us for more information.

Overview

brand: Monforts
year: 2000
MODEL: RNC 200A
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Monforts RNC 200A

General Data

Measurements width: 2320 MM
Measurements depth: 2270 MM
Measurements height: 1750 MM
Machine weight: 3500 KG

Main drive

Number of spindles: 1
Spindle speed range: 50 - 6000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 175 mm
X-AXIS Feed Force: 3.6 kN
X-AXIS Rapid traverse: 24 m/miin
Z-AXIS Movement: 300 mm
Z-AXIS Feed Force: 3.6 kN
Z-AXIS Rapid traverse: 24 m/miin

Workpiece

Workpiece drm over bed: 300 mm
Workpiece drm over support: 190 mm

Media

Chip conveyor: Yes

Additional equipment

- Tailstock with quill diameter 70mm and max quill force 8.8 kN
- The following tools are still available: Hainbuch Spanntop without collets, without tools, Chip conveyor, Spindle insert tubes for the following material diameters: 16/21/25/27/30/34/36 and 41.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length: 250mm
- - Coolant volume: 130 liters
- - High-speed and precision turning capabilities with advanced spindle and rapid traverse features.
Qualitative Machine Benefits:
- - Robust construction and reliable performance for high-quality turning operations.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
