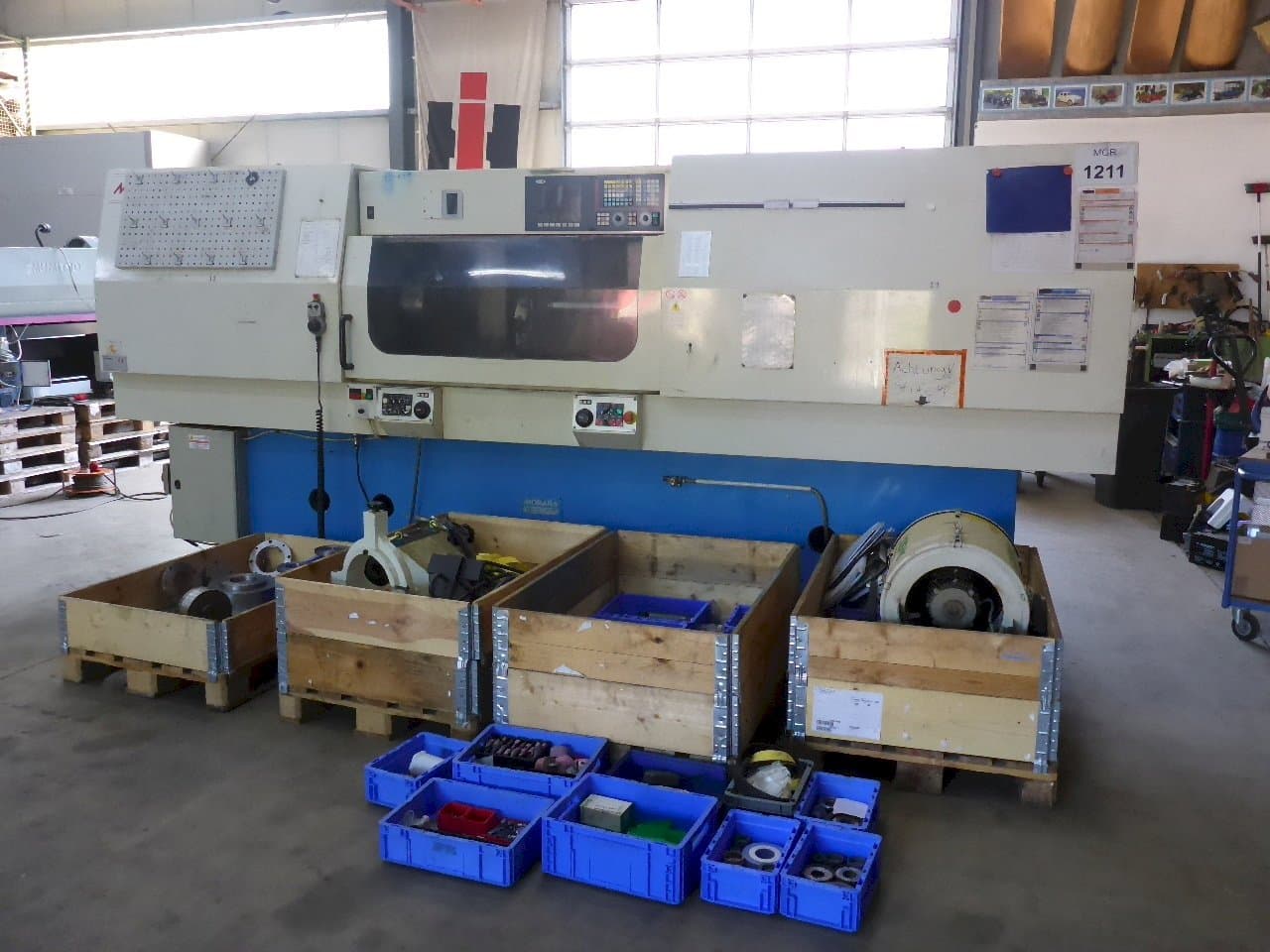

This MORARA Heavy Quick I/E 1000 CNC Grinding machine was manufactured in the year 2004 in Italy. It is equipped with a FAGOR 8055 TCO Digital control unit and has 2 axis. The machine has a maximum grinding length of 1000 mm.
Overview
- brand: MORARA
- year: 2004
- MODEL: Heavy Quick I/E 1000 CNC
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- control unit brand: FAGOR
Technical Information - MORARA Heavy Quick I/E 1000 CNC
General Data
- Measurements width: 6000 mm
- Measurements depth: 3500 mm
- Machine weight: 9000 kg
Control Unit
- Model: 8055 TCO Digital
- Brand: FAGOR
Main drive
- Number of axis: 2
Movement
- X-AXIS Movement: 330 mm
- Z-AXIS Movement: 1400 mm
Additional Information
- Technical Machine Benefits:
- - Center distance 1030 mm.
- - Maximum grinding length 1000 mm
- - Maximum grindable outer diameter 600 mm.
- - Maximum grinding inner diameter 400 mm.
- - Maximum weight between centers 700 kg.
- - Outer grinding wheel stock: spindle type - on precision ball bearing.
- - Wheel (diameter, width, bore) 508x80x203. 2mm.
- - Peripheral speed of the wheel m/s 45.
- - Power of disk motor kw 7,5.
- - Orientation - motorized.
- Qualitative Machine Benefits:
- - Largest adjustment angle 200 degrees, smallest angle pitch 1. 5 degrees, locking/release - hydraulic, resolution 0. 001 degree.
- - Internal grinding headstock: spindle type - standard belt drive. Outside diameter of the spindle max 100mm.
- - Control - digital encoder. Ball screw 40x5mm, control - digital encoder. Ball screw 50x5mm. Upper table adjustment 0 to 4 degrees.
- - Workpiece headstock: internal taper mk6.
- - Centering cone outside asa 11. Clearance diameter 30mm.
- - Rotation on the base 15 degrees.
- - Spindle torque 180 nm.
- - Tailstock: mounting taper mk5. Spindle diameter 80mm. Opening stroke 70mm. Cylindrical correction +/- 0. 10mm.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
