MORI SEIKI - CV-500HR-MIL-MOR-1999-00001

Name: MORI SEIKI CV-500
Brand: MORI SEIKI
SKU: HR-MIL-MOR-1999-00001
Price: 1472550 INR
Availability: InStock

Rs. 1,472,550

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI CV-500 For Sale | gindumac.com

Show in original language

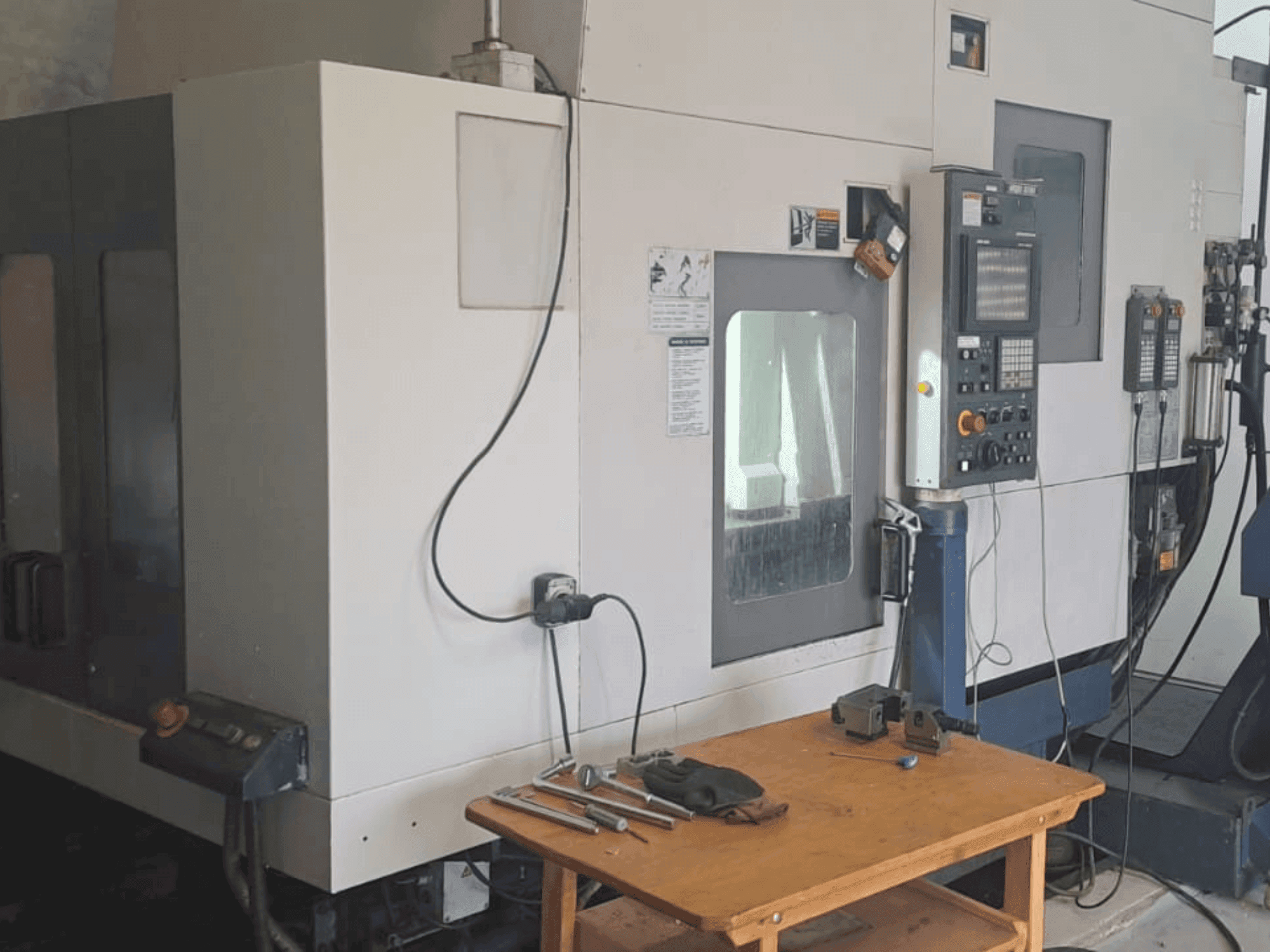

This 3-axis MORI SEIKI CV-500 was manufactured in 1999. Ideal for precision CNC milling, this machine maintains robust construction and reliable performance. If you are looking to get high-quality milling capabilities, consider the MORI SEIKI CV-500 machine we have for sale. Contact us for more information.

Overview

brand: MORI SEIKI
year: 1999
MODEL: CV-500
application type: Milling
Location: Croatia
machine type: CNC Milling Machine
control unit brand: MITSUBISHI

Technical Information - MORI SEIKI CV-500

General Data

Measurements height: 2860 mm
Machine weight: 3800 kg

Control Unit

Brand: MITSUBISHI

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 7.5/5.5 kW
Tool taper: 7/24, No. 40

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Number of tslots: 5
Table load: 350 kg

Tools

Number of index: 25
Max weight: 6 kg
Max tool diameter: 100 mm
Max tool length: 250 mm

Media

Power consumption: 22.5 kVA

Additional equipment

- APC (Automatic Pallet Changer) - Only for CV-500A (APC):
- Number of Pallets: 2
- Pallet Change Method: Front rotation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between table surface and spindle nose: 175-685 mm
- - Table dimensions: 750 × 550 mm
- - Surface configuration: 5 t-slots, 18 mm width
- - Occupied space: 1680 × 3240 mm
- - Coolant tank: 300 l
- - Electrical power: 0. 52 - <0. 32 kwh
- - Air consumption: 0. 5 mpa, 150 l/min
- - Axis motors (x, y, z): 2. 0 kw
- - Lubrication motor: 0. 18 kw // cooling motor: <0. 5 hz
- - Inner bearing diameter: 65 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
