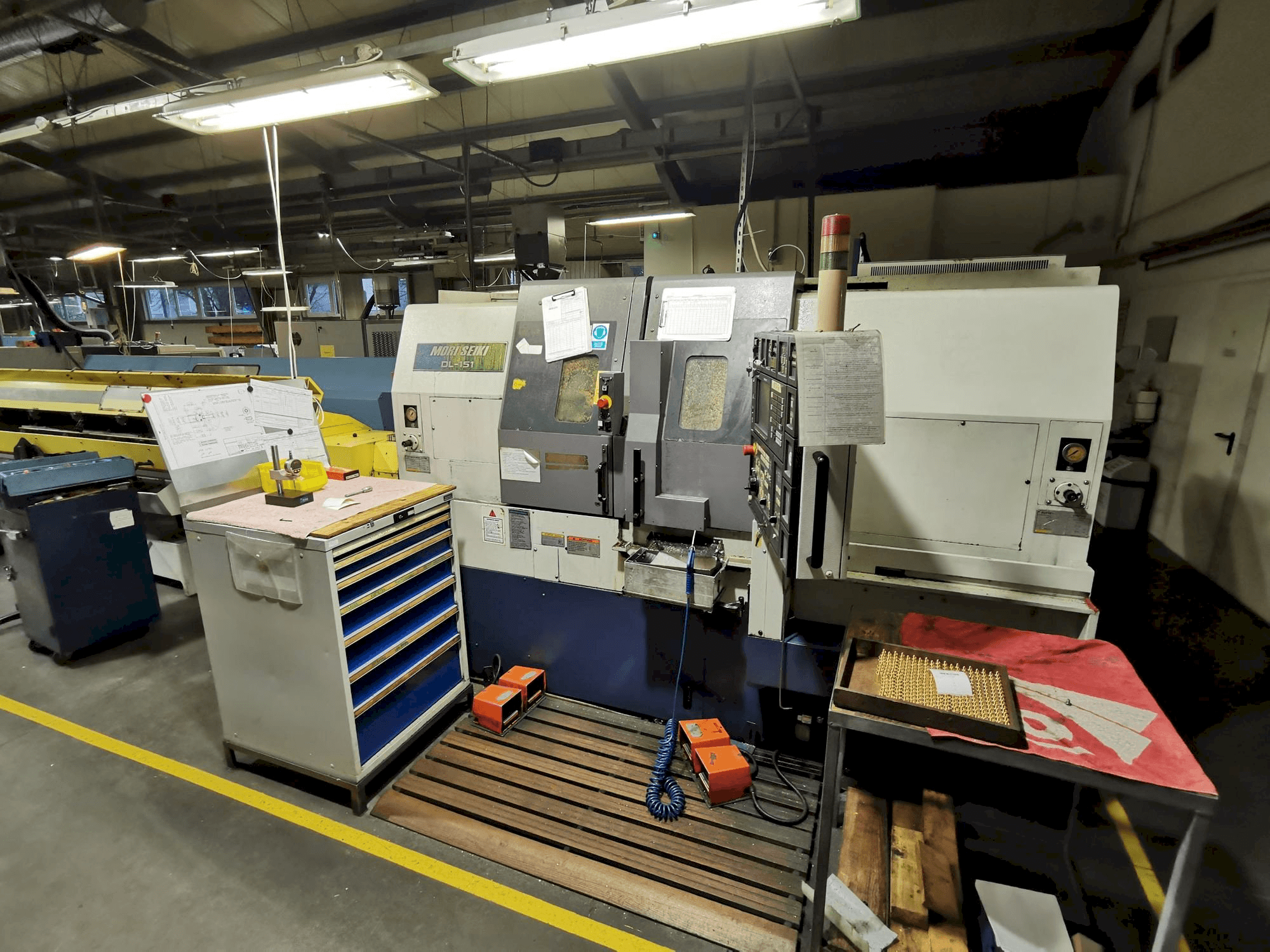

MORI SEIKI DL-151Y Lathe

Show in original language

This MORI SEIKI DL-151Y Lathe was manufactured in the year 199 in Japan and has 23168 cutting hours. It is equipped with a Mori Seiki MSC-501 control unit. The machine has a spindle speed of 80 - 8000 rpm and includes FMB turbo 5-42-XT bar loader, driven tools radial 3pcs, driven tools axial 5 pcs, axial holder with reducing sleeve 10pcs, chuck 170 mm, plus factory knife holder.

Overview

brand: MORI SEIKI
year: 1999
MODEL: DL-151Y
production hours: 23168
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - MORI SEIKI DL-151Y

General Data

Measurements width: 2030 mm
Measurements depth: 3216 mm
Measurements height: 2485 mm
Machine weight: 6000 kg

Main drive

Spindle speed range: 80 - 8000 1/MIN

Movement

X-AXIS Movement: 235 mm
Y-AXIS Movement: 80 <+- 40> *3 MM
Z-AXIS Movement: 250 mm

Additional equipment

- Including FMB turbo 5-42-XT bar loader
- driven tools radial 3pcs
- driven tools axial 5 pcs
- axial holder with reducing sleeve 10pcs
- chuck 170 mm
- plus factory knife holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum distance between spindle noses: 1020
- - Maximum turning diameter: 200
- - Standard turning diameter: 150
- - Maximum turning length: 200
- - Max. Bar diameter: 45
- - Travel of the spindle: 785

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
