MORI SEIKI - NL 2000SY/500GB-TUR-MOR-2007-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

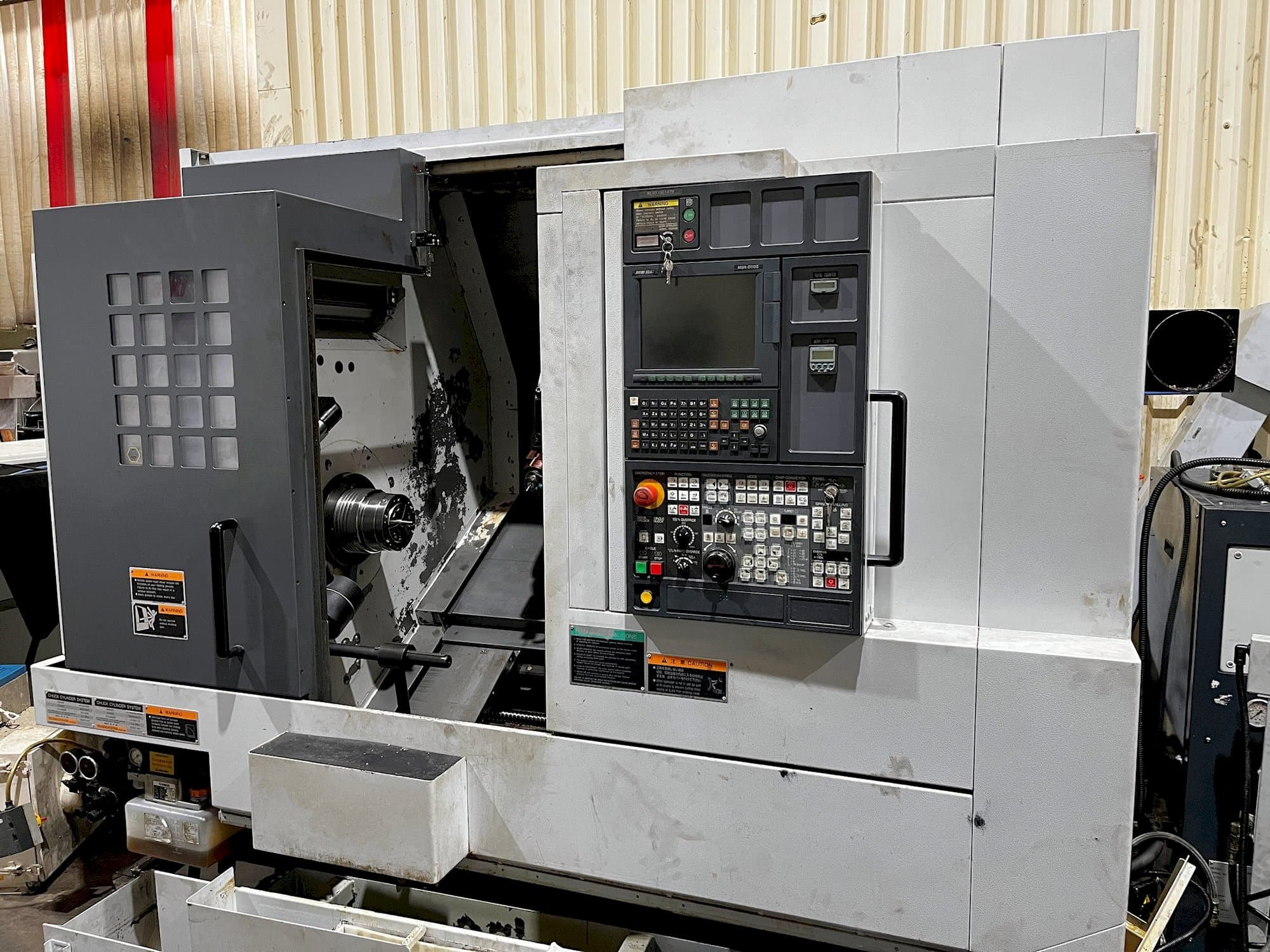

MORI SEIKI NL 2000SY/500 Lathe machine

Show in original language

This MORI SEIKI NL 2000SY/500 Lathe machine was manufactured in the year 2007 in Japan. It operated through a MORI MSX-850 III control unit. This 4 axis machine works with a spindle speed of 5000 rpm.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NL 2000SY/500
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI NL 2000SY/500

General Data

Measurements width: 3688 mm
Measurements depth: 2000 mm
Measurements height: 2120 mm
Machine weight: 5800 kg

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: +/- 50 mm
Z-AXIS Movement: 590 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 924mm, over carriage 754 mm
- - Maximum cutting diameter 355mm
- - Maximum cutting length 510mm
- - Bar capacity 65 mm
- - Distance between spindles 784mm
- - Main spindle motor power 15/11 kw
- - Milling motor power,speed 5. 5/3. 7kw, 6000rpm
- - Sub spindle motor, speed 11/7. 5kw, 6000rpm
- - C axis 0. 001 degree (both spindles)
- - Barfeed hydrafeed multi servo
Qualitative Machine Benefits:
- - Very good condition
- - C axis & milling, tool setter, coolant, y-axis, interlocked guards, low volt light, magazine barfeed, collet chuck, tooling, sub spindle, c axis on sub spindle
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
