MORI SEIKI NL2500SY / 700

Show in original language

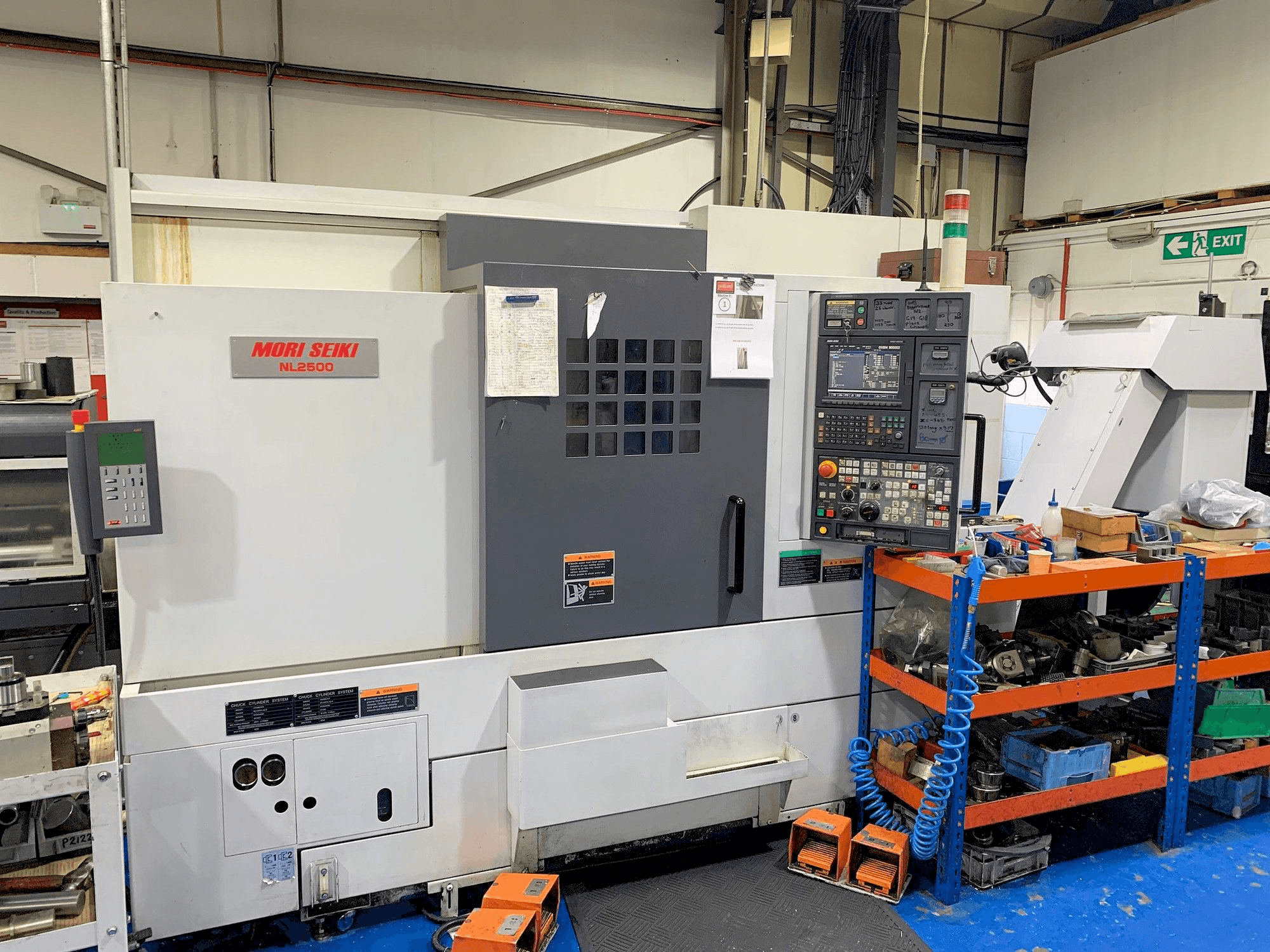

This MORI SEIKI NL2500SY / 700 Lathe was manufactured in Japan in the year 2007. It has 8744 hours of cutting time. It is equipped with a MORI SEIKI MSX-850 III control unit. This 4 axis machine is capable of working with the main spindle speed up to 4000 rpm. It includes a Barfeed Magazine LNS QUICK LOAD. This machine is in very good conditions.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NL2500SY / 700
production hours: 8744
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI NL2500SY / 700

General Data

Measurements width: 3100 mm
Measurements depth: 1950 mm
Measurements height: 2150 mm
Machine weight: 6500 Kg

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 18.5 kW
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: +/- 50 mm
Z-AXIS Movement: 795 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: AC 200 V 50 Hz
Chip conveyor: Yes

Additional equipment

- Barfeed Magazine LNS QUICK LOAD

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 780 mm, over carriage 630 mm
- - Maximum machining diameter 356 mm
- - Maximum machining length 705 mm
- - Bar capacity 80 mm
- - Sub-spindle 11 kw
- - C axis & milling function, y axis
- - Turret milling power 5. 5 kw speed 6000 rpm
- - 0. 001 degree c axis (both spindles)
- - Chuck size 10'' & 6'' (sub-spindle)
- - Parts catcher, tool setter, coolant, tooling
Qualitative Machine Benefits:
- - Machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
