MORI SEIKI - NLX 2000MC/500GB-TUR-MOR-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

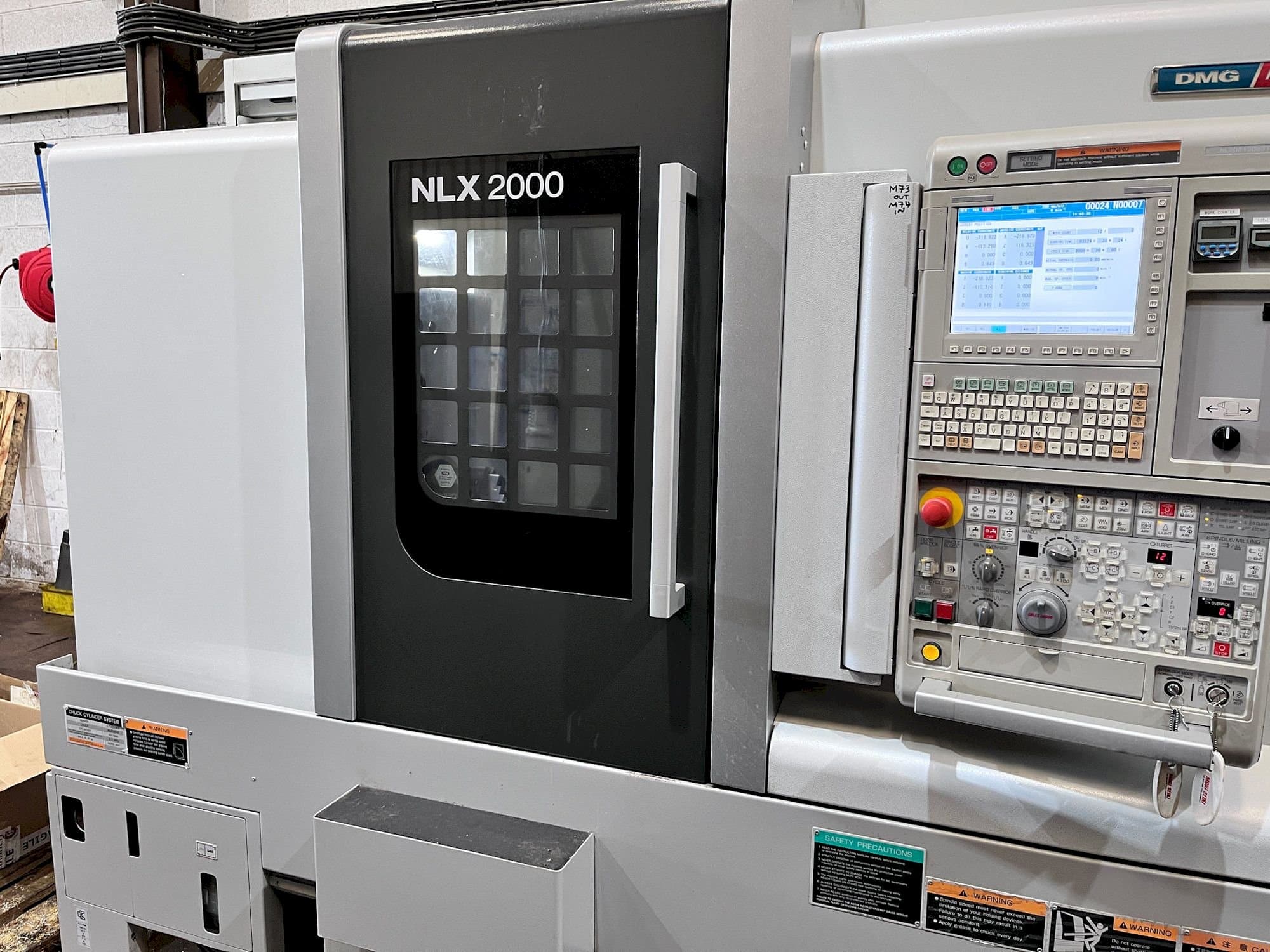

Mori Seiki NLX 2000MC/500 Lathe

Show in original language

This Mori Seiki NLX 2000MC/500 Lathe was manufactured in the year 2013 in Japan. It is equipped with a MORI SEIKI M730BM control unit. The machine has a spindle speed of 5000 rpm.

Overview

brand: MORI SEIKI
year: 2013
MODEL: NLX 2000MC/500
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - MORI SEIKI NLX 2000MC/500

General Data

Measurements width: 2820 mm
Measurements depth: 2081 mm
Measurements height: 2145 mm
Machine weight: 5000 kg

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
Z-AXIS Movement: 590 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 925 mm, over carriage 755 mm
- - Maximum cutting diameter :366 mm
- - Maximum cutting length : 510mm
- - Bar capacity 65 mm
- - Center height: 210mm
- - Main spindle motor power 15/11 kw
- - Milling motor power,speed : 5. 5/3. 7kw, 10. 000rpm
- - Tailstock body travel :564mm, quill dia. 80mm
- - C axis 0. 001 degree
- - Tool setter, 3 jaw chuck, parts catcher, swarf conveyor
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
