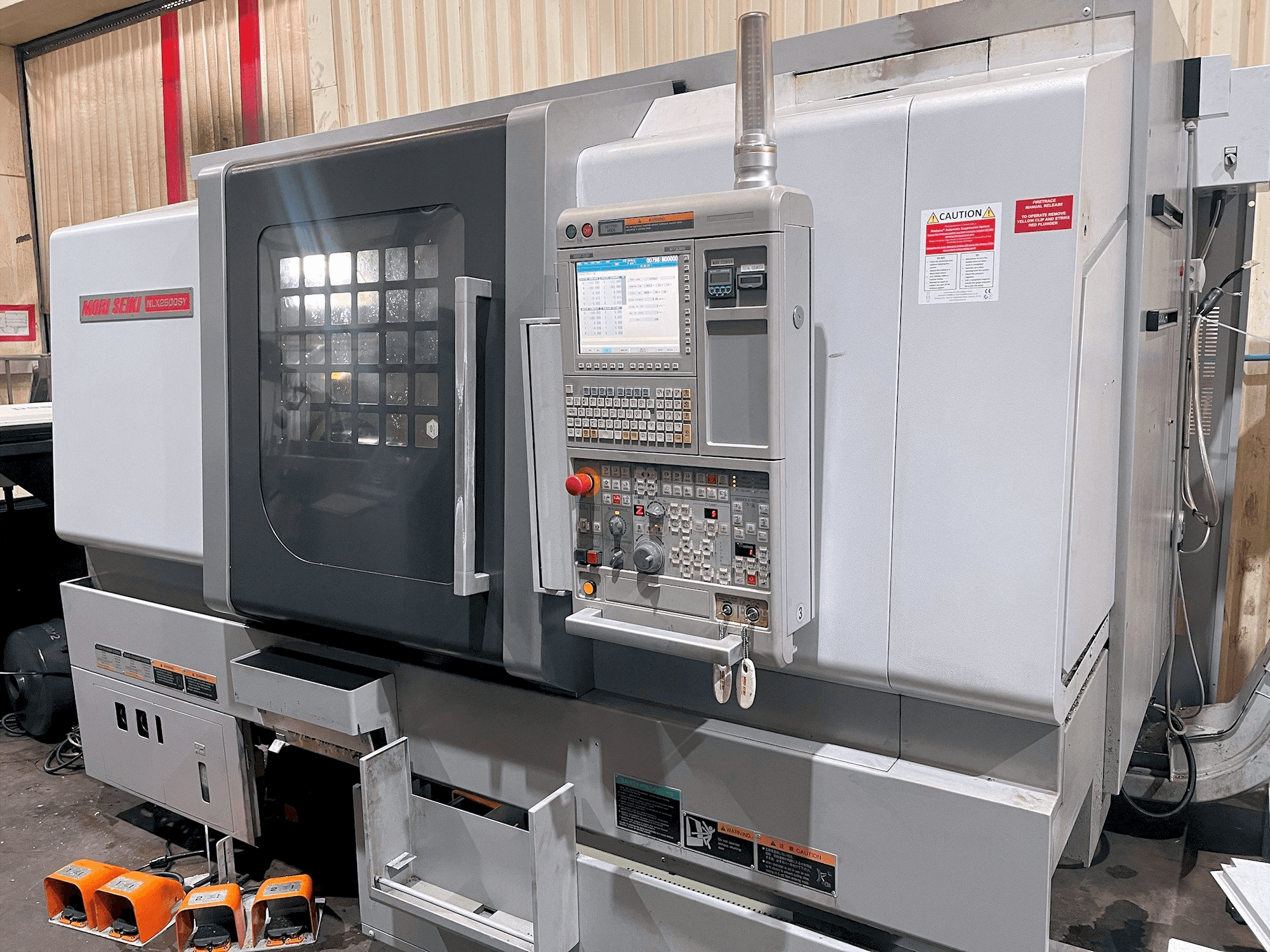

Mori Seiki NLX2500SY/700 Lathe

Show in original language

This Mori Seiki NLX2500SY/700 Lathe was manufactured in the year 2011 in Japan and has 19552 production hours, of which 10704 are spindle hours. It is controlled by a MORI SEIKI M730BM control unit and has 5 axis. The machine has a spindle speed of 4000 rpm and includes a Barfeed magazine and a Fume Extractor as additional equipment.

Overview

brand: MORI SEIKI
year: 2011
MODEL: NLX2500SY/700
production hours: 19552
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI NLX2500SY/700

General Data

Measurements width: 3050 mm
Measurements depth: 2000 mm
Measurements height: 2150 mm
Machine weight: 6040 kg

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 18.5/15KW
Number of axis: 5

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: +/- 50 mm
Z-AXIS Movement: 795 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional equipment

- Barfeed magazine
- Fume Extractor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 590mm
- - Swing over the cross-slide :360mm
- - Maximum cutting diameter :460mm
- - Maximum cutting length: 728mm
- - Bar capacity: 80mm
- - Sub spindle motor 11/7. 5kw, speed 6000rpm
- - Rapid feedrates: 30m/minute
- - Tool setter, parts catcher, swarf conveyor
- - 3 jaw chuck, collet chuck, high pressure coolant, interlocked guards, low volt light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
