MTcut UD100-5A

Photo Gallery

MTcut - UD100-5ADE-MIL-MTC-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MTcut UD100-5A For sale | gindumac.com

Show in original language

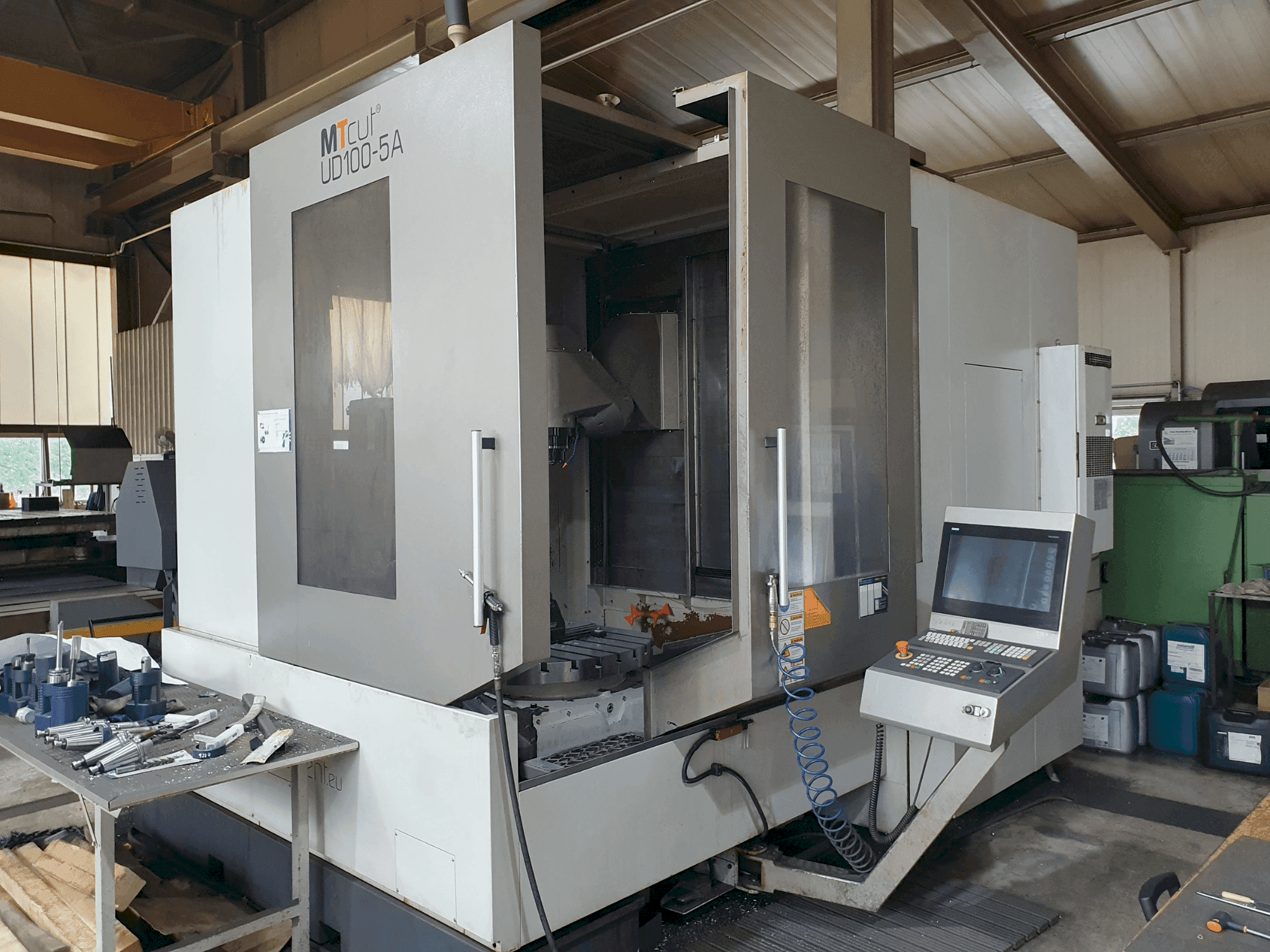

This 5-axis MTcut UD100-5A was manufactured in 2017 and features a robust design with a 1,000 mm X-axis, 800 mm Y-axis, and 700 mm Z-axis. It includes a 52-position tool changer, integrated rotary table, and a milling swivelling head with a 14,000 rpm spindle. Ideal for complex machining tasks, the MTcut UD100-5A machining center we have for sale is immediately available. Contact us for further details regarding this machining center.

Overview

brand: MTcut
year: 2017
MODEL: UD100-5A
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - MTcut UD100-5A

Main drive

Number of spindles: 1
Spindle speed range: 14000 rpm 1/MIN
Spindle motor power: 29 kW
Number of axis: 5

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 700 mm
B-AXIS Movement: 0-180º
C-AXIS Movement: 0.001 x 360º

Tools

Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 160 nm // milling swivelling head features: torque motor, hydraulic clamping, swivelling range 0-180º, infinitely variable, 14,000 rpm, 160 nm torque, drive power 29 kw, separate spindle cooling
- - Spindle nose to table distance: 5-750 mm
- - Machine table dimensions: Ø 1,000 mm x 800 mm
- - T-slots in the table: 7 // t-slot width: 18 mm h8 // t-slot spacing: 100 mm
- - Feed rate: 1-20,000 mm/min
- - Positioning accuracy: ± 0. 005 mm/300 mm // repeat accuracy: ± 0. 003 mm
- - Integrated rotary table features: 360º stepless, hydraulic clamping, Ø1000mm x 800mm
- - General features: 52-position tool changer with double arm gripper, coolant and compressed air gun, chip conveyor, coolant device, electronic handwheel, work area light
- - Spindle cooling: water cooled
- - Ell gear x/y/z: 24/24/24 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
