Muga XP4 42SM Lathe

Show in original language

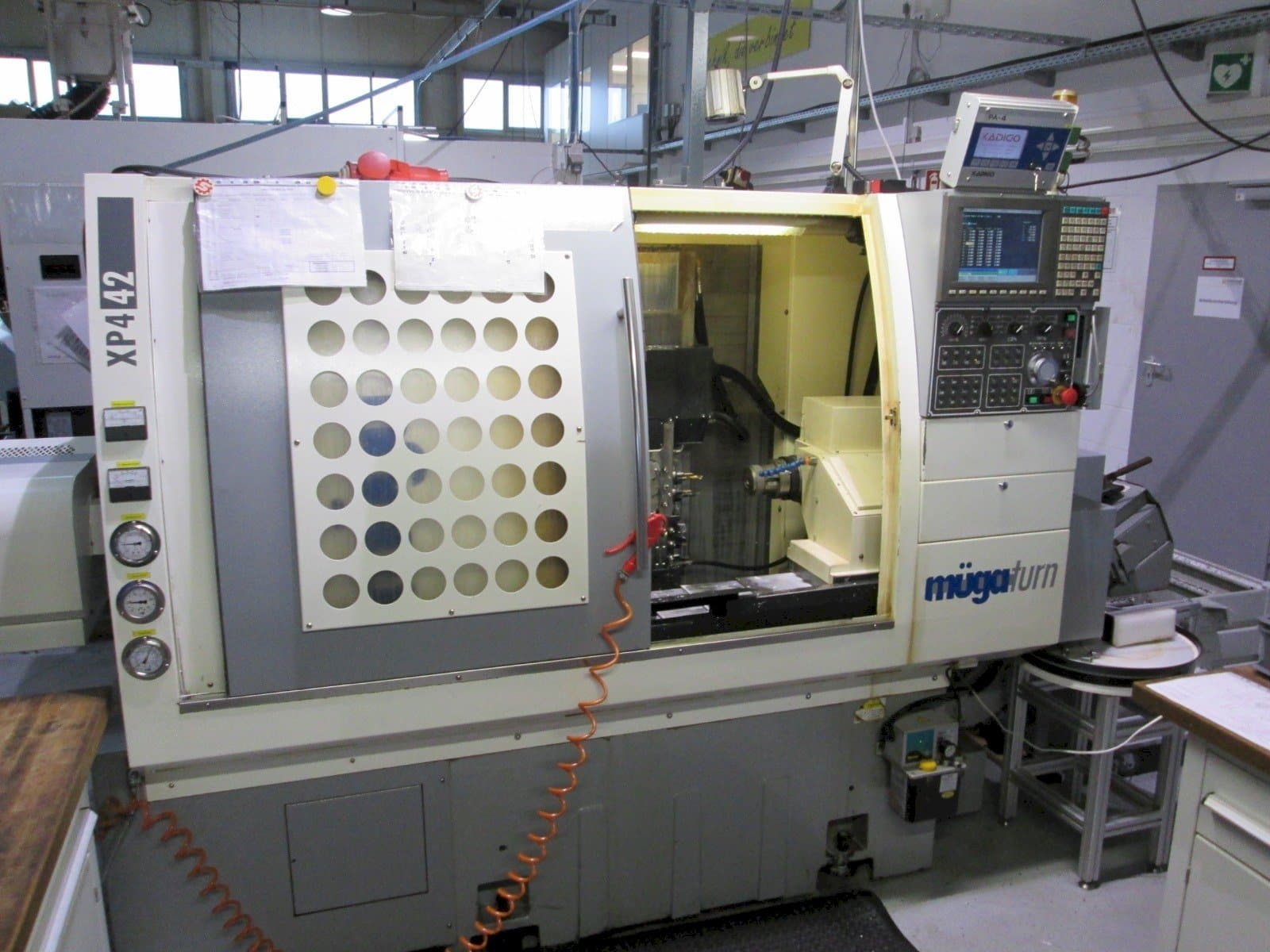

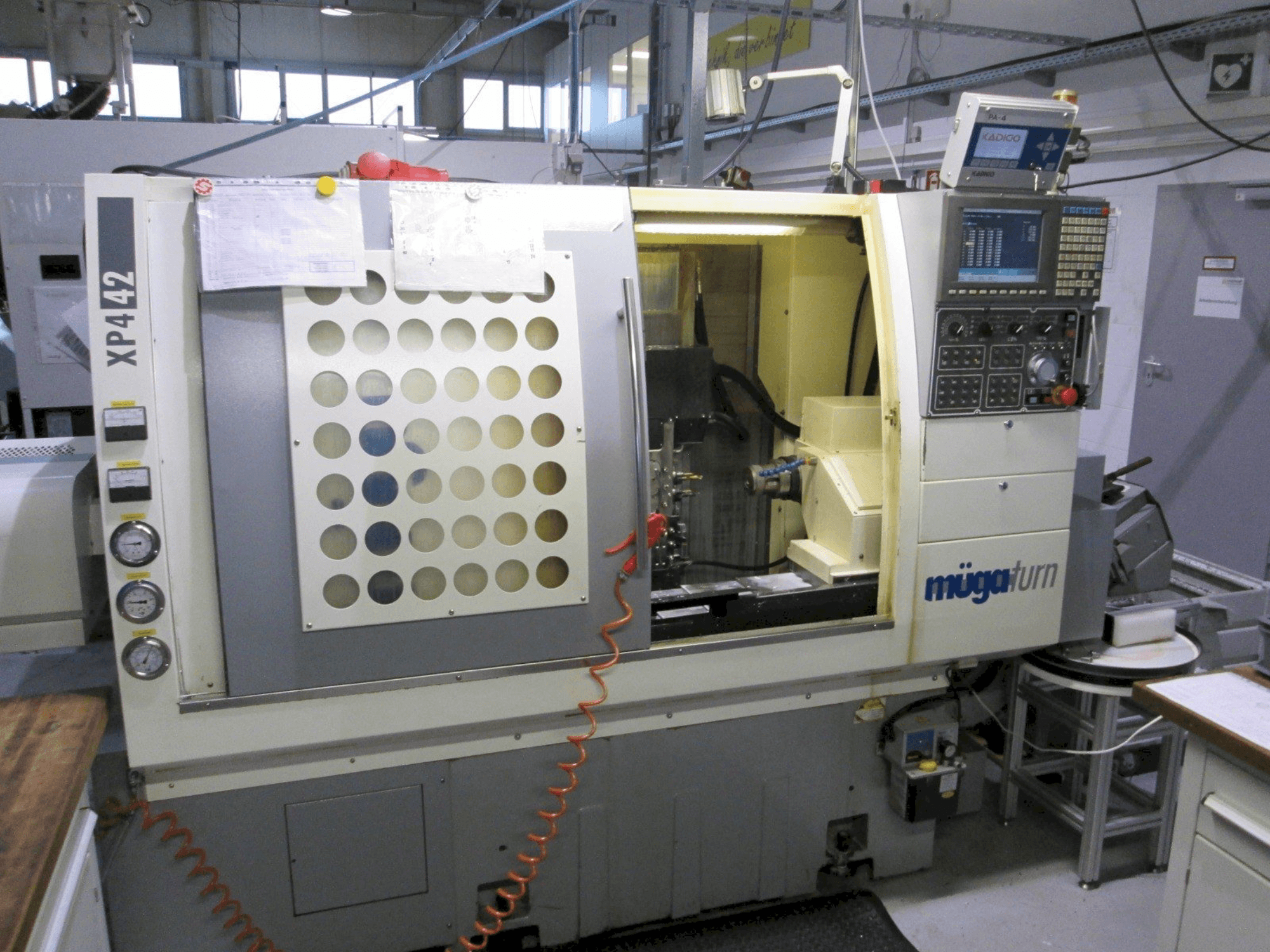

This Muga XP4 42SM Lathe was manufactured in the year 2009. This machine operates with a spindle speed up to 4000 rpm.

Overview

brand: Muga
year: 2009
MODEL: XP4 42SM
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold

Technical Information - Muga XP4 42SM

General Data

Measurements width: 3160 mm
Measurements depth: 1750 mm
Measurements height: 1860 mm
Machine weight: 3200 kg

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 6

Movement

X-AXIS Movement: 180 mm
Y-AXIS Movement: 330 mm
Z-AXIS Movement: 300 mm
C-AXIS Movement: 0,1° MM

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length: 100 mm
- - Turning diameter: 42 mm
- - 27 tools
- - Collet chuck hs+gs
- - Tool tower
- - Tool holder for driven tools radial axial
- - Parts conveyor belt
Qualitative Machine Benefits:
- - Central lubricationbarfeeder interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
