➤ Used Murata Wiedemann C-2500 Turret Punching Machine

Show in original language

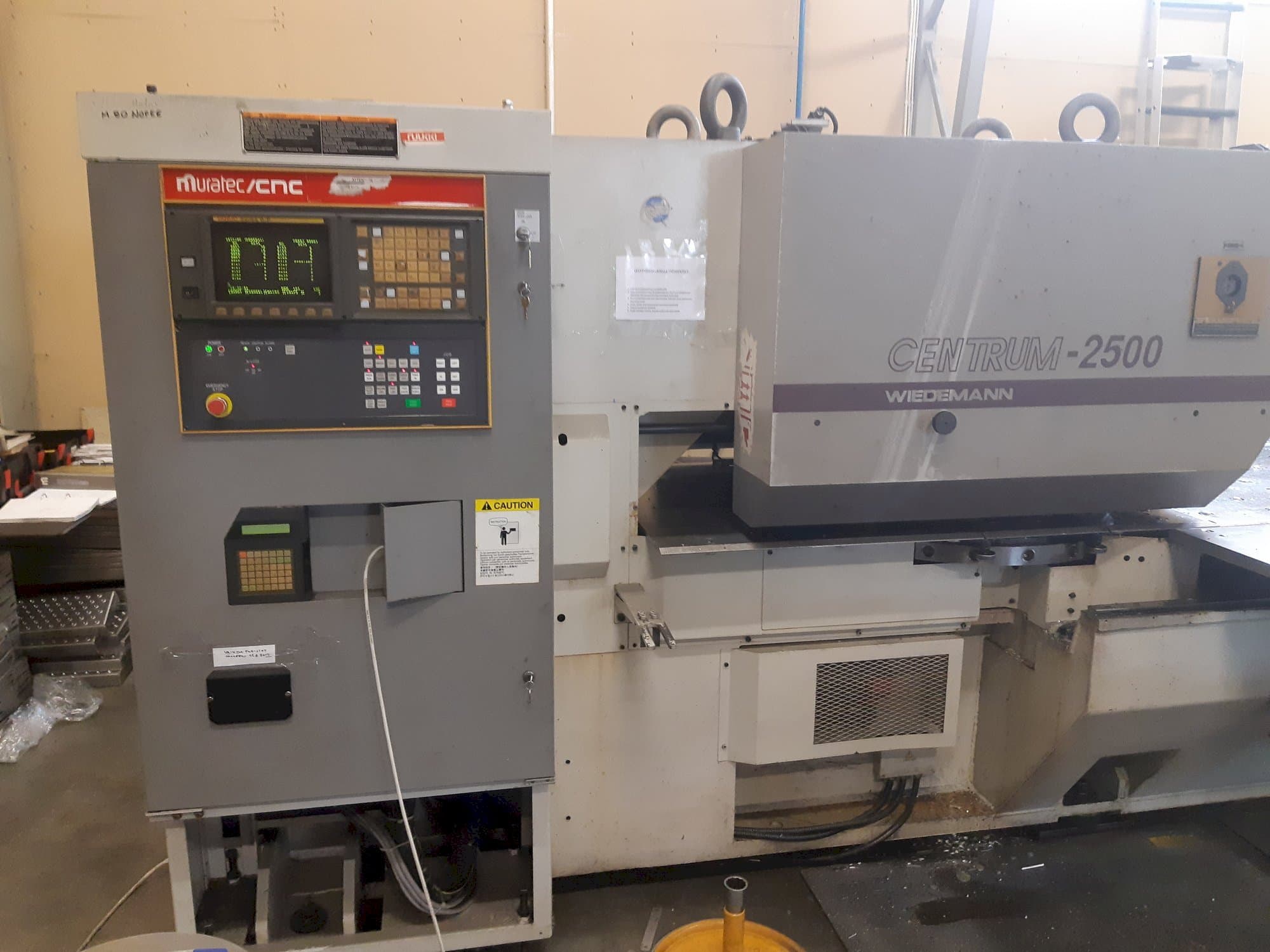

This Murata Wiedemann C-2500 Turret Punching Machine was built in 1996 in Japan. Operated through a FANUC O-P control unit, this machine counts with a punching force of 200 kN.

Overview

brand: Murata Wiedemann
year: 1996
MODEL: C-2500
application type: Punching
Location: Finland
machine type: Turret Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - Murata Wiedemann C-2500

General Data

Measurements width: 4100 mm
Measurements depth: 4500 mm
Measurements height: 2100 mm
Machine weight: 9500 kg

Control Unit

Model: Series O-P
Brand: FANUC

Main drive

Punching force: 200 kN
Maximum sheet thickness: 4 mm

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1250 mm

Tools

Number of index: 3
Number of stations: 22
Number of clamps: 2

Media

Main electronic connection: 400 V / 50 Hz
Air pressure: 6 bar

Additional equipment

- tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
