Murata Wiedemann - C-3000JP-PUN-MUR-1996-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Turret Punching Machine - Murata Wiedemann C-3000

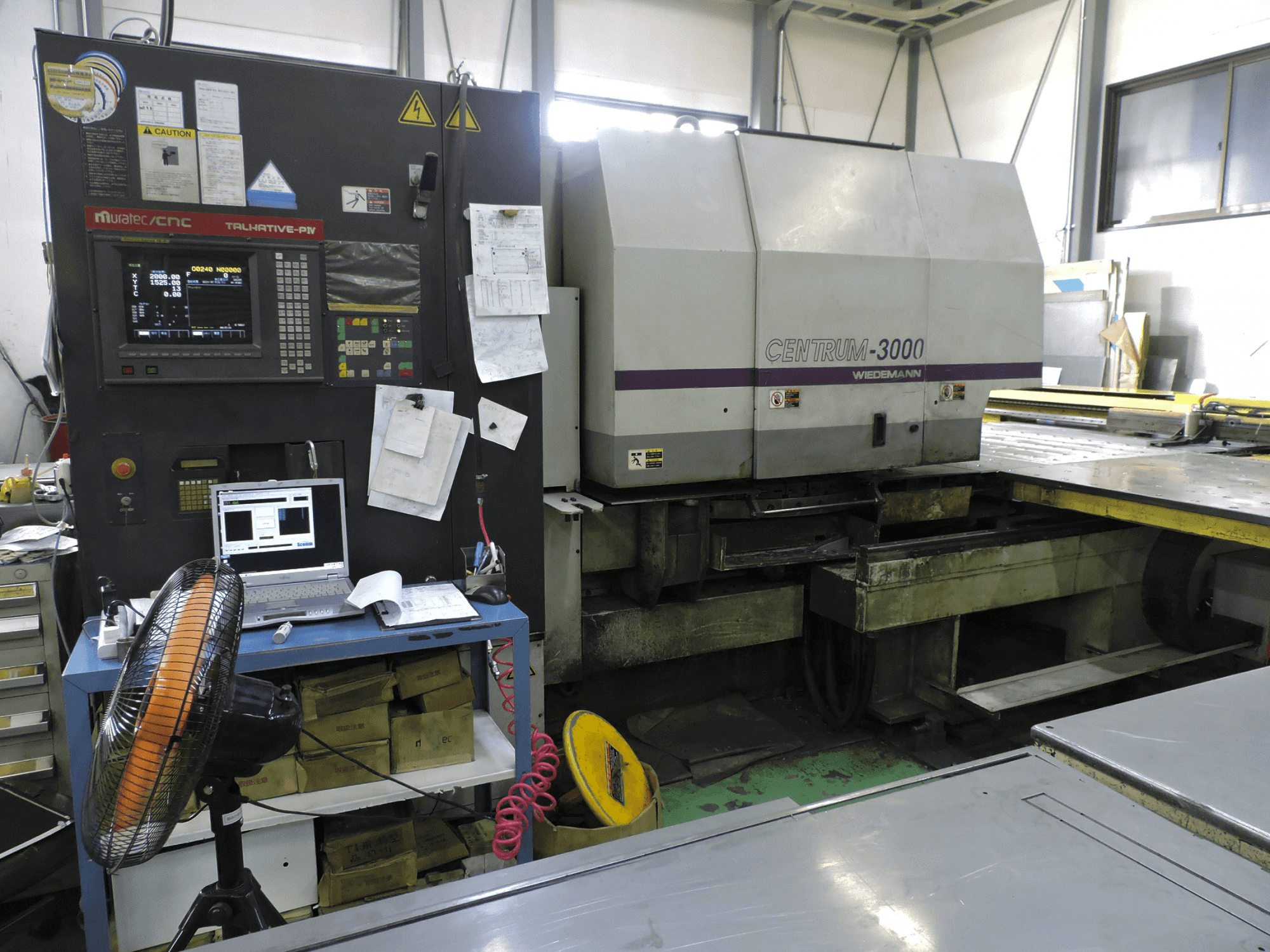

This Murata Wiedemann C-3000 is a Japanese Turret Punching Machine that was manufactured in the year 1996. A FANUC 16-P control unit manages this 300 kN strong machine, which benefits from a widely spacious working table (2000 x 1500 mm). In the past, this machine has worked most of its time on up to 4 mm thick mild steel, requires only low maintenance and finds itself in a very good working condition. Several tools and accessories are included as additional equipment.
Overview
- brand: Murata Wiedemann
- year: 1996
- MODEL: C-3000
- application type: Punching
- Location: Japan
- machine type: Turret Punch Press
- control unit brand: FANUC
Technical Information - Murata Wiedemann C-3000
Control Unit
- Control Brand: FANUC
- Control Model: 16-P
Dimensions
- Machine Depth: 5065 mm
- Machine Height: 2132 mm
- Machine Weight: 22000 kg
Movement
- X-axis Travel: 2000 mm
- Y-axis Travel: 1500 mm
Technical Specification
- Punching Force: 300 Kn
Additional Information
Additional equipment
- Several tools and accessories
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
