Muratec MD 200

Photo Gallery

Muratec - MD 200IT-TUR-MUR-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

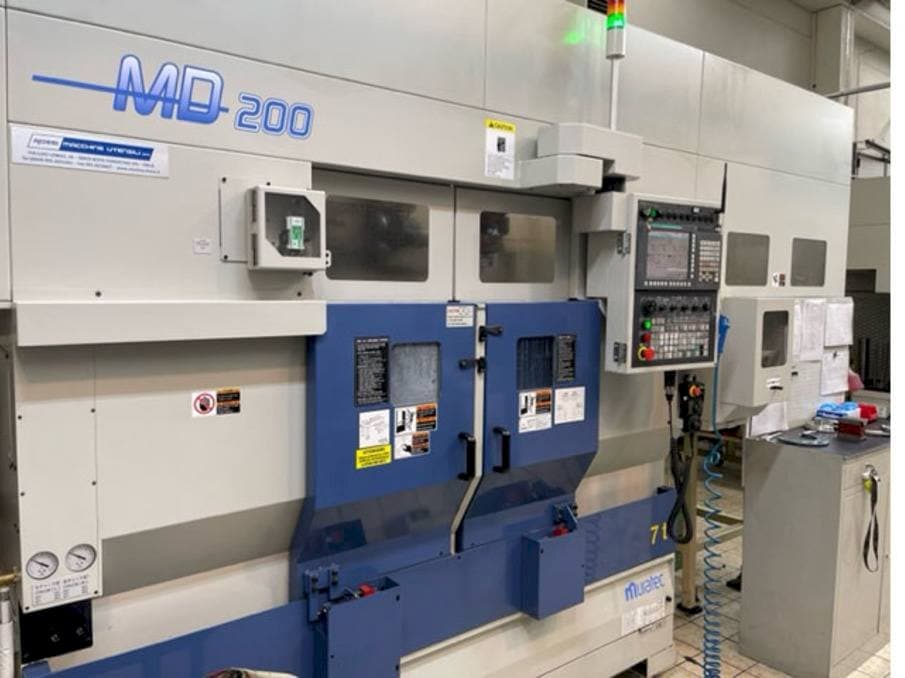

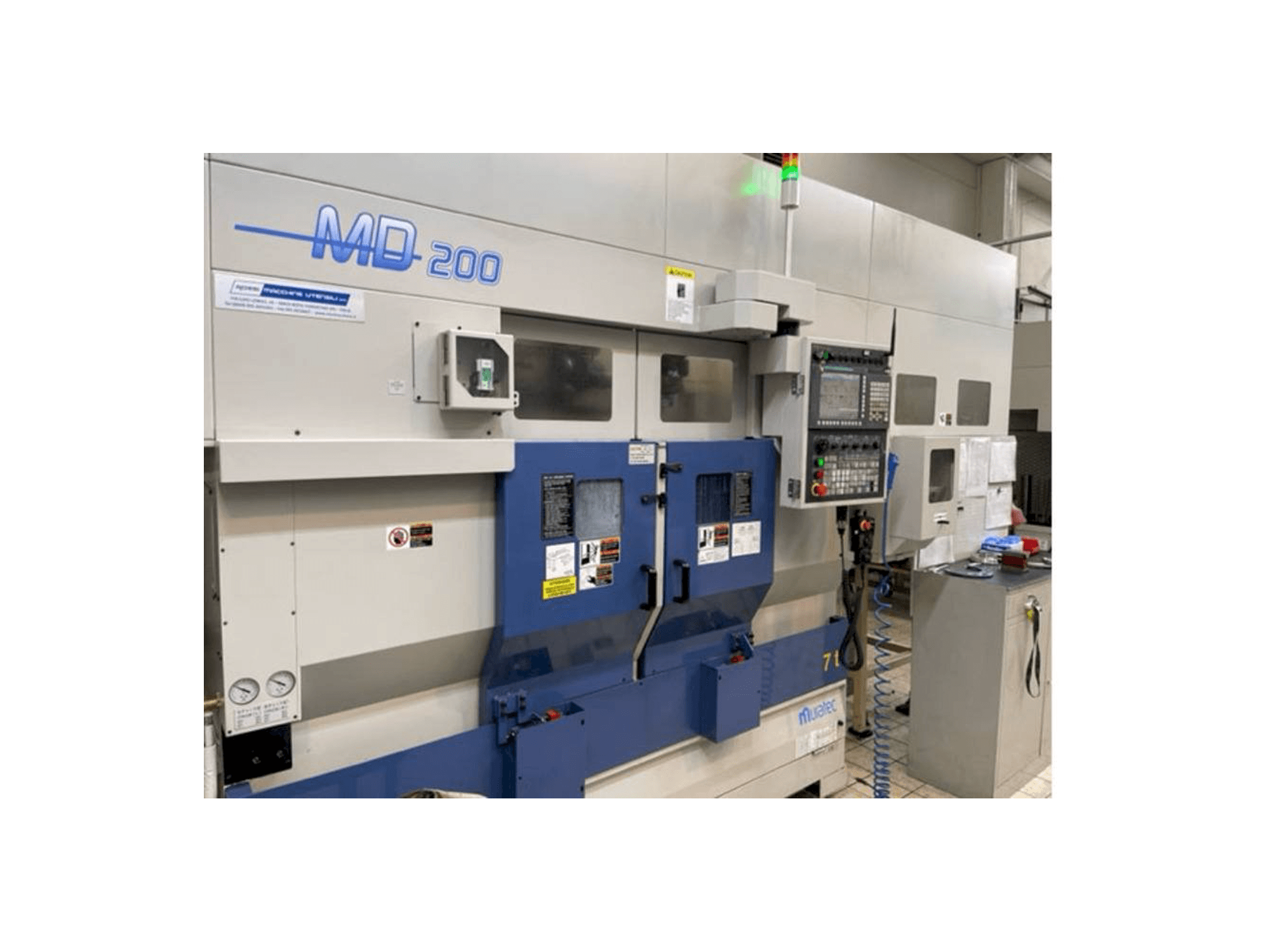

Muratec MD 200 Lathe

Show in original language

This Muratec MD 200 Lathe was manufactured in the year 2019 in Japan. It is equipped with a Fanuc CNC control unit. The machine has a spindle speed of 2000 rpm, is in good condition and well maintained.

Overview

brand: Muratec
year: 2019
MODEL: MD 200
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Muratec MD 200

General Data

Measurements width: 3200 mm
Measurements depth: 4840 mm
Measurements height: 2200 mm
Machine weight: 7400 Kg

Control Unit

Model: CNC
Brand: FANUC

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 11 Kw

Additional Information

Machine Benefits

Qualitative Machine Benefits

Number of second turret tool places 12 second turret motorized number 12
X axis travel second turret 190 mm, z axis travel second turret 170 mm
Rapid feeds linear axes x y z 18 m / min
Gantry loader yes
Maximum capacity of the gantry 8 x 2 kg
Maximum diameter of the piece that can be transported 200 mm
Maximum transportable piece length 100 mm
Stoker or blanks warehouse yes
Pallet number 14
Chip conveyor belt

Technical Machine Benefits

Spindle nose asa 6
Turnable diameter 200 mm
Self-centering diameter 254 mm
Distance between spindles 440 mm
Bar passage 65 mm
Turnable length 100 mm
Number of secondary spindle revolutions 2000
Number of tool places in the first turret 12
Motorized number of first turret 12
X axis travel first turret 190 mm z axis travel first turret 170 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
