Muratec - MD 200IT-TUR-MUR-2019-00002
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Muratec MD 200 Lathe - Used
Show in original language

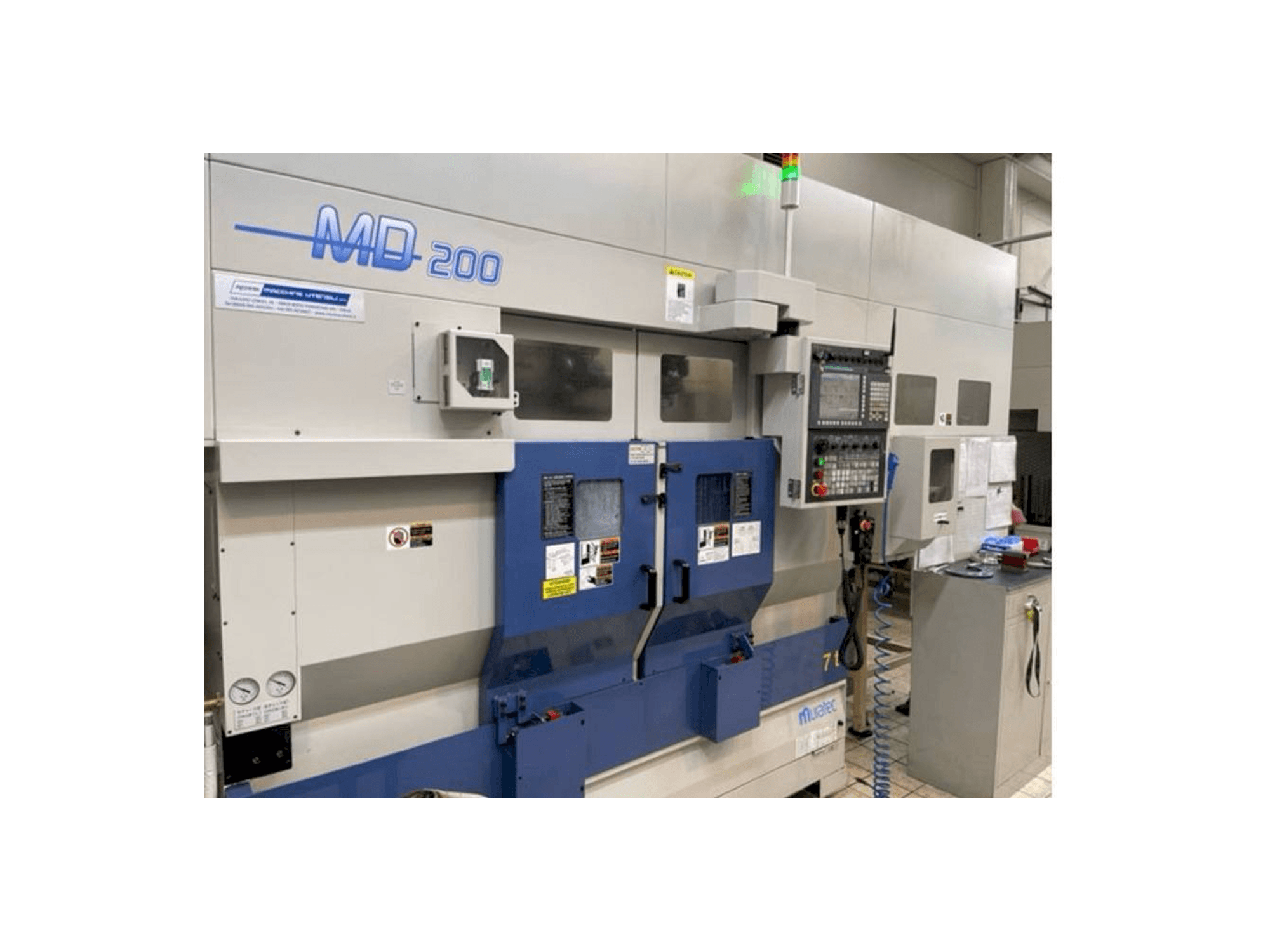

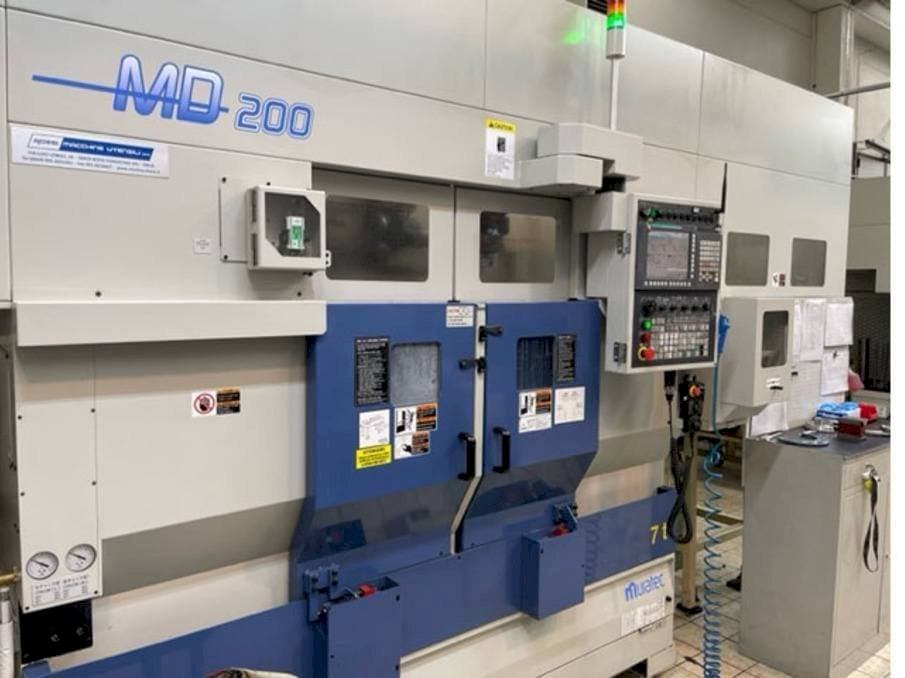

This Muratec MD 200 Lathe was manufactured in the year 2019 in Japan. It is equipped with a Fanuc CNC control unit. The machine has a spindle speed of 2000 rpm, is in good condition and well maintained.
Overview
- brand: Muratec
- year: 2019
- MODEL: MD 200
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Muratec MD 200
General Data
- Measurements width: 3200 mm
- Measurements depth: 4840 mm
- Measurements height: 2200 mm
- Machine weight: 7400 kg
Control Unit
- Model: CNC
- Brand: FANUC
Main drive
- Spindle speed range: 2000 1/MIN
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Number of second turret tool places 12
- Second turret motorized number 12
- Rapid feeds linear axes x y z 18 m / min
- Gantry loader
- Maximum capacity of the gantry 8 x 2 kg
- Maximum diameter of the piece that can be transported :200 mm
- Maximum transportable piece length: 100 mm
- Stoker or blanks warehouse yes
- Pallet number 14
- Chip conveyor belt
Technical Machine Benefits
- Spindle nose asa 6
- Spindle power 11 kw
- Turnable diameter 200 mm
- Self-centering diameter: 254 mm
- Distance between spindles : 440 mm
- Bar passage :65 mm
- Turnable length: 100 mm
- Number of secondary spindle revolutions :2000
- Number of tool places in the first turret 12
- Motorized number of first turret 12
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
