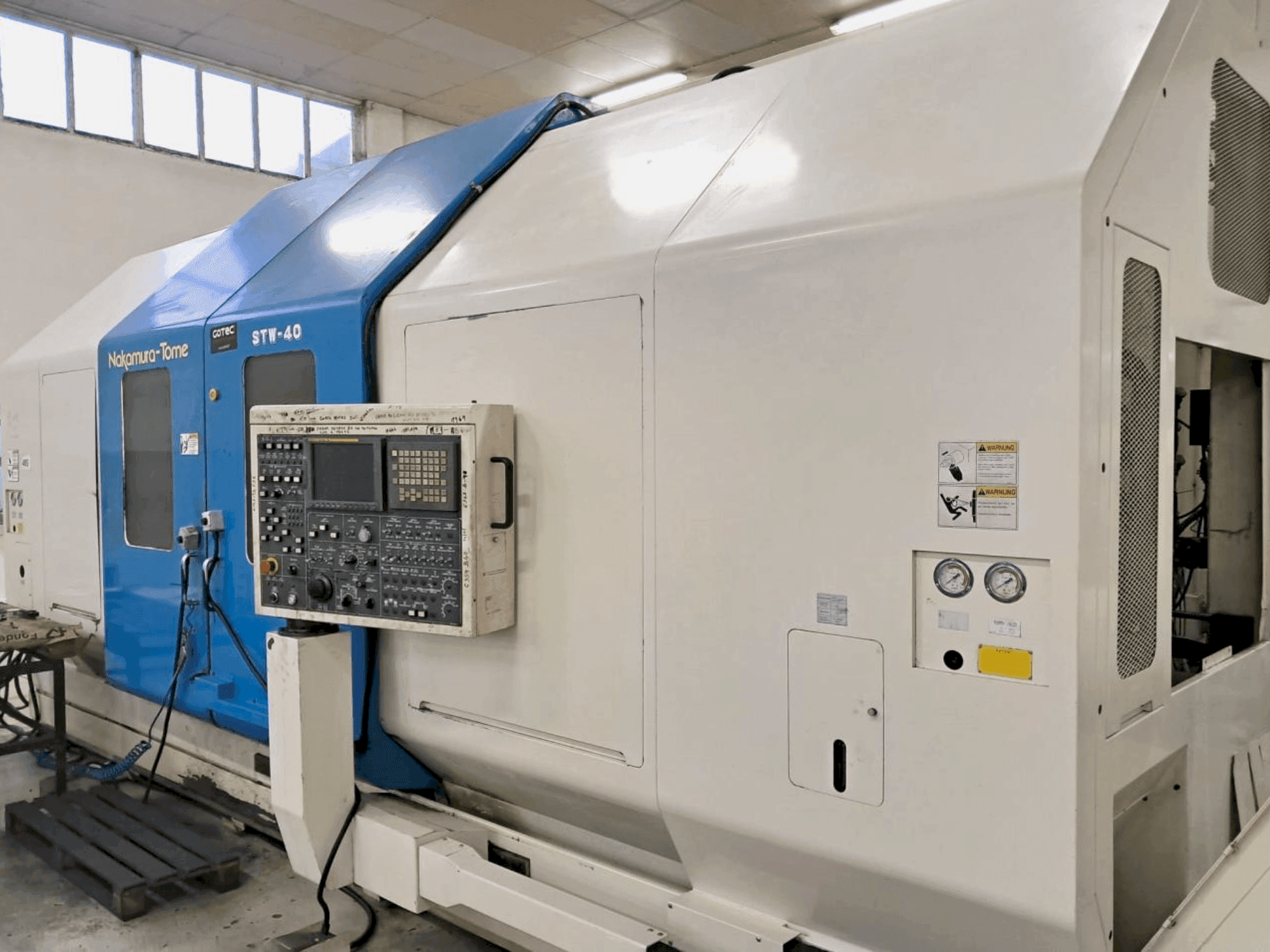

This 9-axis Nakamura-Tome STW-40 was manufactured in 2000, featuring a max. turning diameter of 570 mm and a turning length up to 1550 mm. It boasts spindle speeds up to 3500 rpm and rapid traverse rates of 25 m/min on X-axes and 30 m/min on Z-axes. Ideal for complex machining tasks, it includes a 80-fold WZG magazine and a hinged belt chip conveyor. Contact us for more information about this machine.

Overview

brand: NAKAMURA-TOME
year: 2000
MODEL: STW-40
production hours: 0
application type: Turning
Location: Portugal
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - NAKAMURA-TOME STW-40

General Data

Measurements width: 3500 mm
Measurements depth: 6200 mm
Measurements height: 3200 mm
Machine weight: 22000 kg

Control Unit

Brand: FANUC
Model: 16i-TA

Main drive

Spindle speed range: 30-3500 1/MIN
Spindle bore: 85 mm
Number of axis: 9

Movement

X-AXIS Movement: 400 mm
X-AXIS Rapid traverse: 25 m/min
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 1550 mm
Z-AXIS Rapid traverse: 30 m/min

Additional equipment

- 12000 rpm for upper WZG spindle with 11/7.5 kW drive power and 79/47 Nm torque
- 80-fold WZG magazine
- Automatic start-up and shut-down of the machine with warm-up program function
- WZG breakage control with scanning flag for upper WZG spindle
- 2 HD - Brinkmann pumps for upper WZG spindle and lower turret (pump capacity = 45 liters per minute)
- Hinged belt chip conveyor with ejection to the right

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter upper wzg spindle: 570 mm // max turning diameter turret lower left and right: 400 mm
- - Standard turning diameter: 300 mm
- - Max turning length turret-bottom left and right: 500 mm
- - Max turning length upper wzg spindle: 1550 mm
- - Distance between spindle noses: 1900 mm
- - Distance between 2 3-jaw chucks: 1500 mm
- - Power requirement: total connected load of 160 kva
- - Air consumption: approximately 500 liters per minute
- - C1 + c2: 400 rpm
- - B-axis: 12. 5 r/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
