- ➤ Used NAKAMURA-TOME TW-20 MMY Lathe

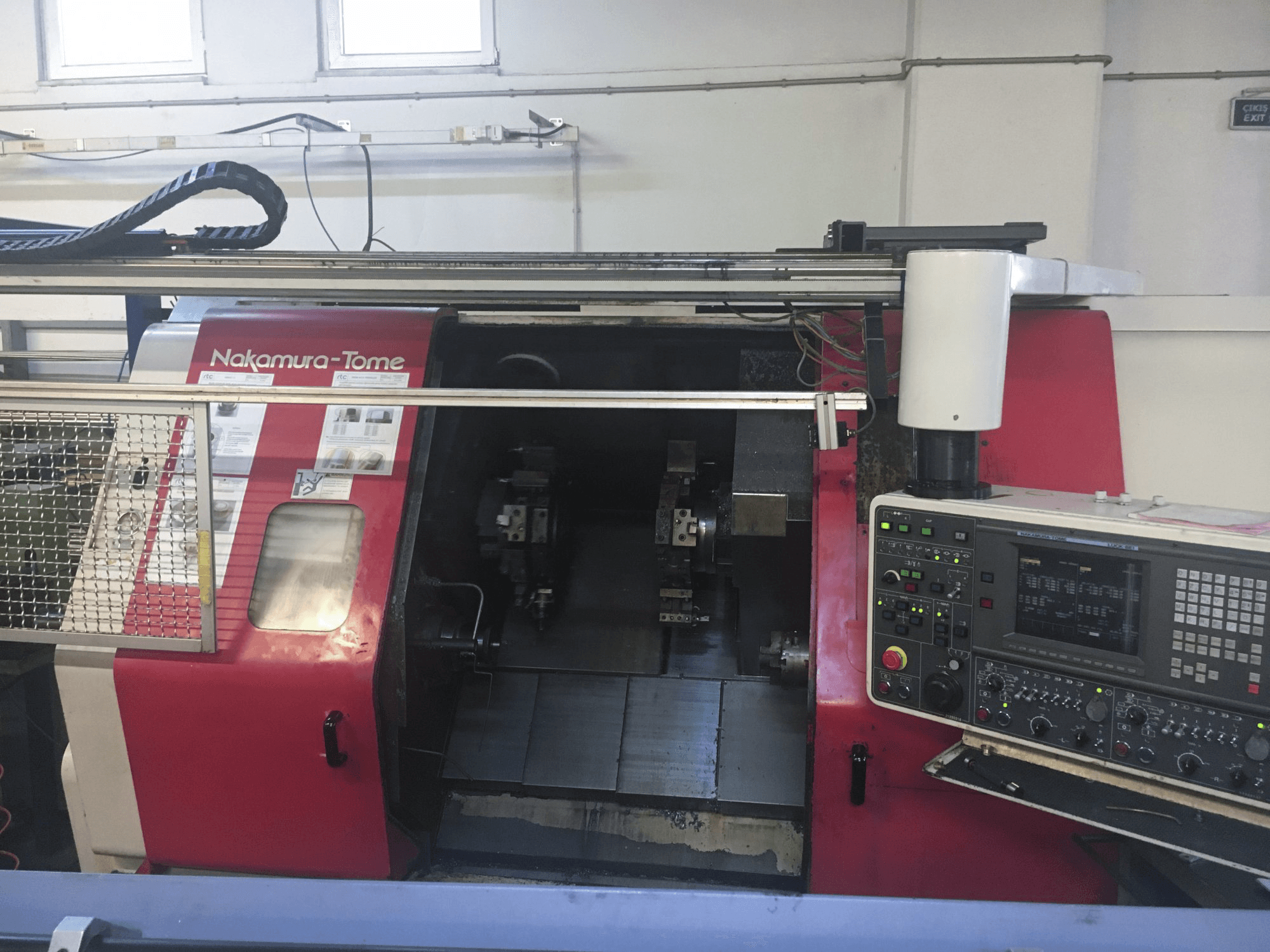

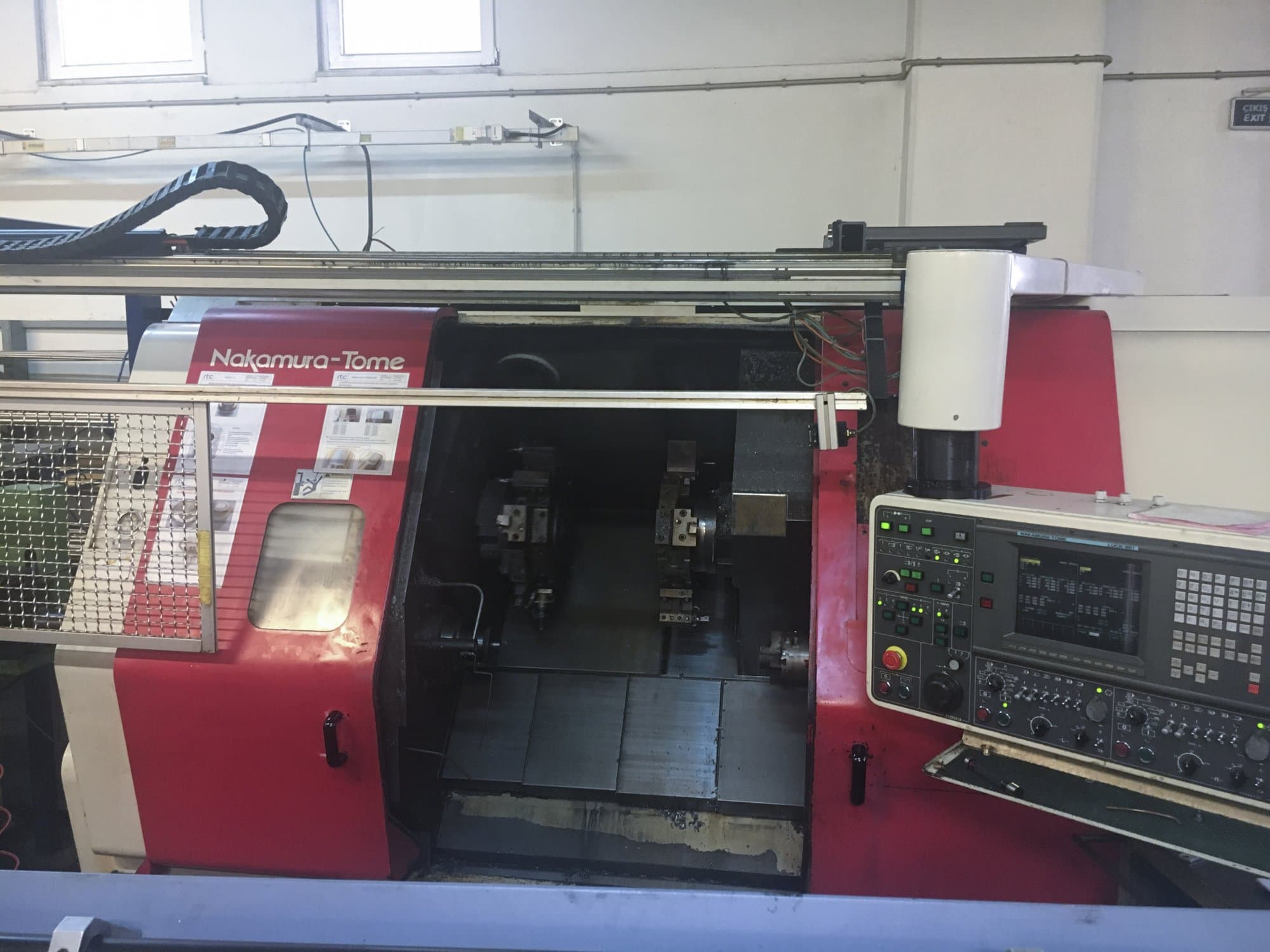

This NAKAMURA-TOME TW-20 MMY Lathe is from 1995, was built in Japan and has a working record of 1637 production hours. Operated through a NAKAMURA-TOME LUCK-BEI Control unit, this machine was working with steel, aluminum and copper bars with around 51 mm of diameter during the past. The model stands out due to its live tooling capability and the automatic workpiece transfer from the main to the secondary spindle. Beside a bar loader, two live tools and a loading robot are included in the delivery.
Overview
- brand: NAKAMURA-TOME
- year: 1995
- MODEL: TW-20 MMY
- production hours: 1637
- application type: Turning
- Location: Turkey
- machine type: Turn-Mill Centre
Technical Information - NAKAMURA-TOME TW-20 MMY
Dimensions
- Machine Depth: 2179 mm
- Machine Height: 2200 mm
- Machine Weight: 6500 kg
Movement
- X-axis Travel: 195 mm
- Y-axis Travel: 40 mm
- Z-axis Travel: 265 mm
Technical Specification
- Max. Workpiece Diameter: 51 mm
- Through-spindle Coolant: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
