Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Netstal - SYNERGY 1000-230CH-INJ-NET-1999-00007
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Netstal SYNERGY 1000-230

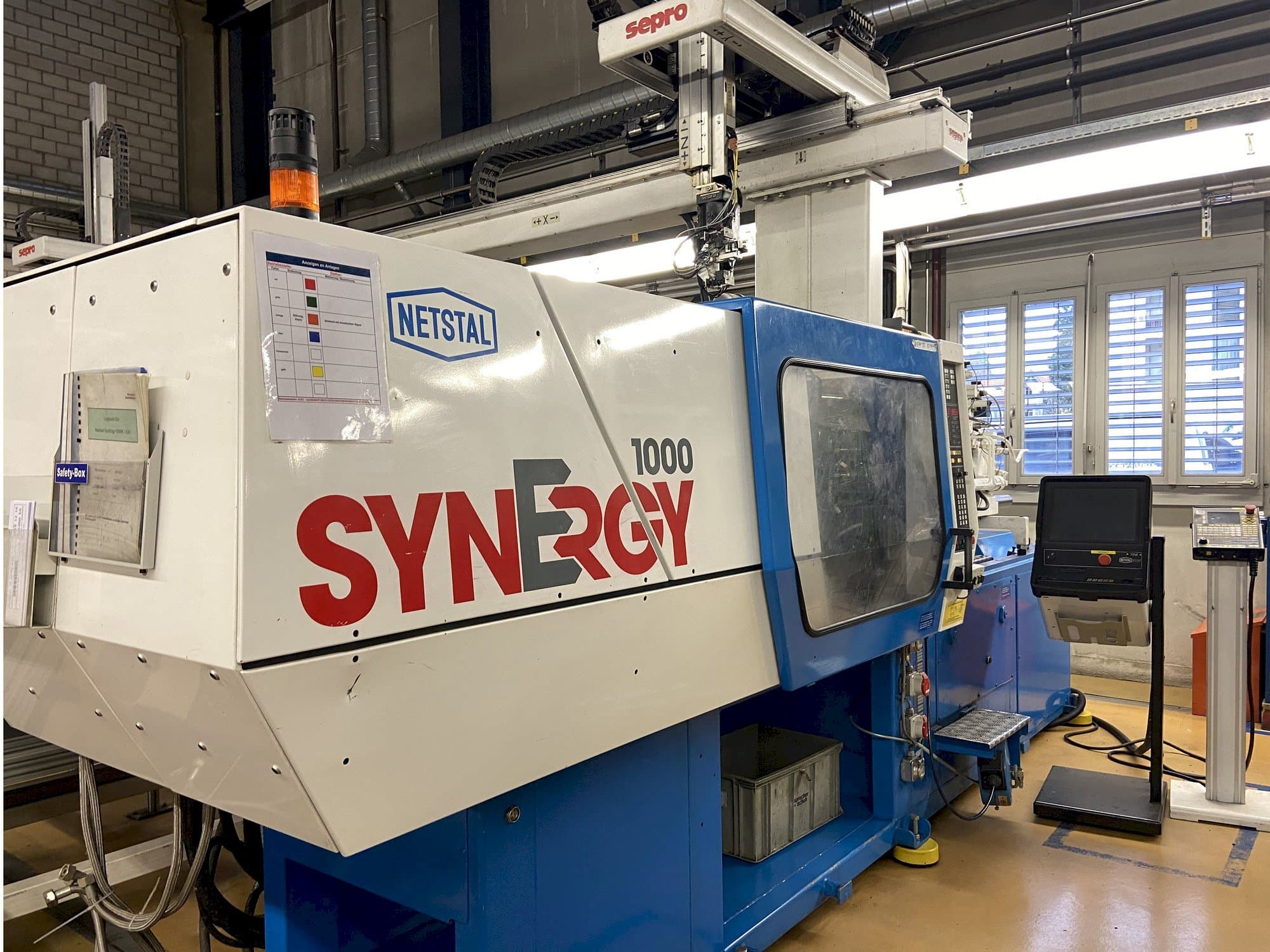

This Netstal SYNERGY 1000-230 Injection Moulding Machine was manufactured in the year 1999. It has 107801 production hours. This machine works with a NETSTAL SYCAP control unit. It can perform with a clamping force 1000 kN and a line pressure 210 bar.
Overview
- brand: Netstal
- year: 1999
- MODEL: SYNERGY 1000-230
- production hours: 107801
- application type: Injection Moulding
- Location: Switzerland
- machine type: Electrical Injection Moulding Machine
- availability: Sold
- control unit brand: NETSTAL
Technical Information - Netstal SYNERGY 1000-230
Control Unit
- Model: SYCAP
- Brand: NETSTAL
Injection Unit
- Screw diameter: 32 mm
- Shot weight: 94,2 G/PS
- Stroke volume: 103 CM³
- Injection pressure: 210 bar
Clamping unit
- Clamping force: 1000 kN
- Opening stroke: 0 - 400 mm
- Mould height min: 250 mm
- Mould height max: 550 mm
Media
- Main electronic connection: 400 V 50 Hz
- Power consumption: 22 kW
Additional equipment
- - 1x SEPRO Robot handling (for additional cost)
Additional Information
- Technical Machine Benefits:
- - Injection force 182 kn
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
