Nexturn SA-38E

Photo Gallery

Nexturn - SA-38ECZ-TUR-NEX-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

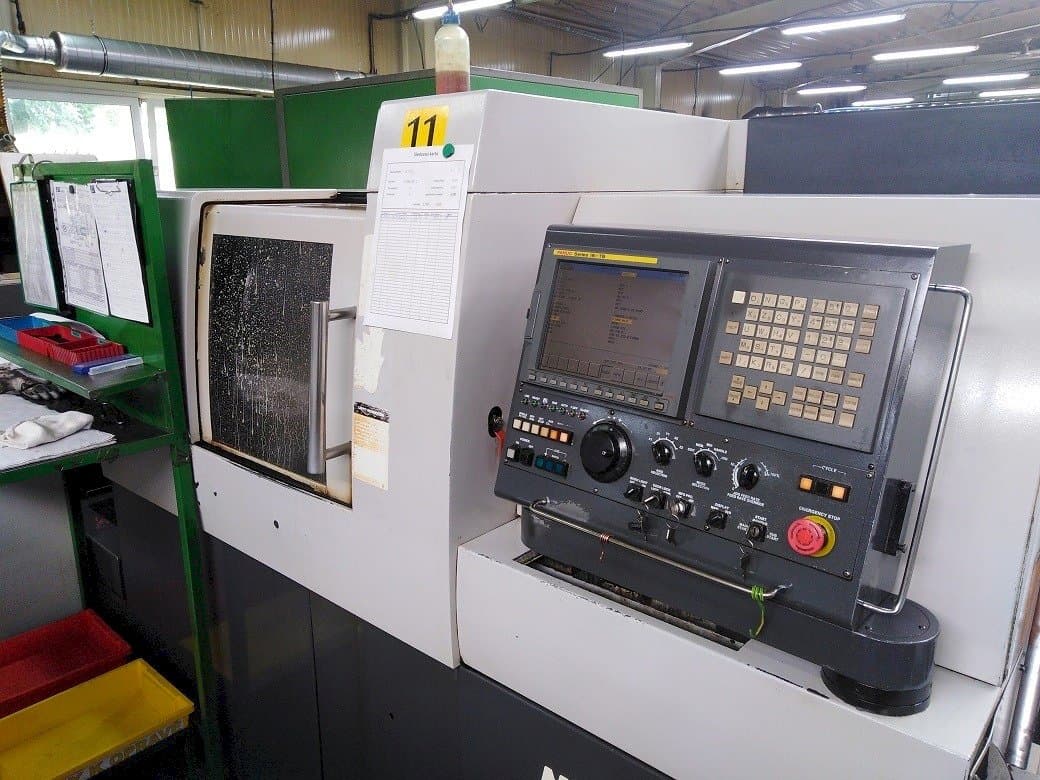

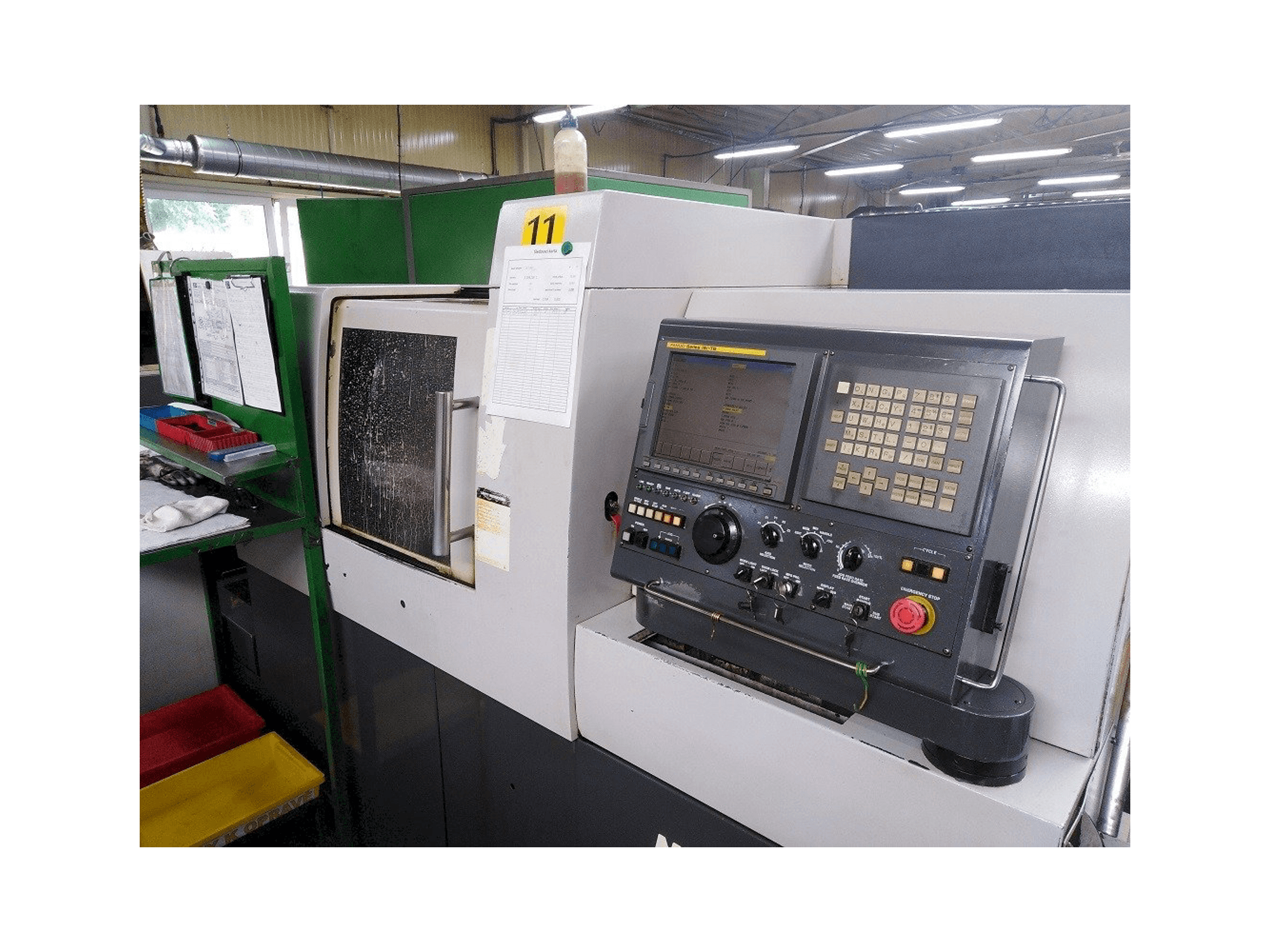

Nexturn SA-38E Lathe

Show in original language

This Nexturn SA-38E Lathe was manufactured in South Korea in 2006. It has 42500 operation hours, of which 14408 are cutting time. It is equipped with a Fanuc Series 18i-TB control unit. This 7 axis machine can works with a spindle speed up to 8000 rpm. It has a new central lubrication on sub-spindle, new guideways and new axis screws on X2, Z2 axis.

Overview

brand: Nexturn
year: 2006
MODEL: SA-38E
production hours: 42500
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Nexturn SA-38E

General Data

Measurements width: 2140 mm
Measurements depth: 1375 mm
Measurements height: 1670 mm
Machine weight: 3500 KG

Control Unit

Model: Series 18i-TB
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 3
Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 - 7.5 kW
Number of axis: 7

Media

Main electronic connection: 220V / 60Hz

Additional equipment

- Barfeed magazine IEMCA BOSS 542 (3000 mm)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Maximum turning bar diameter: 38 mm
- - Maximum turning bar length: 210 (250) mm
- - 7 controlled axis - x1, z1, y, x2, z2, c1, c2
- - Subspindle: 1. 5 - 2. 2 kw
- - Cross drill/milling unit: 0. 55 / 1. 1 kw
- - Work feedrate: 6000 mm/min
- - Rapid traverse rate: 32 mt/min
- - Max. Drilling/tapping main dia. : 12/m10
- - Max. Drilling/tapping cross & sub dia. : 10/m8
Qualitative Machine Benefits:
- - Includes machine manual
- - Good condition, regularly maintained
- - 2021 - new central lubrication on sub-spindle
- - 2021 - new guideways and new axis screws on x2, z2 axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
