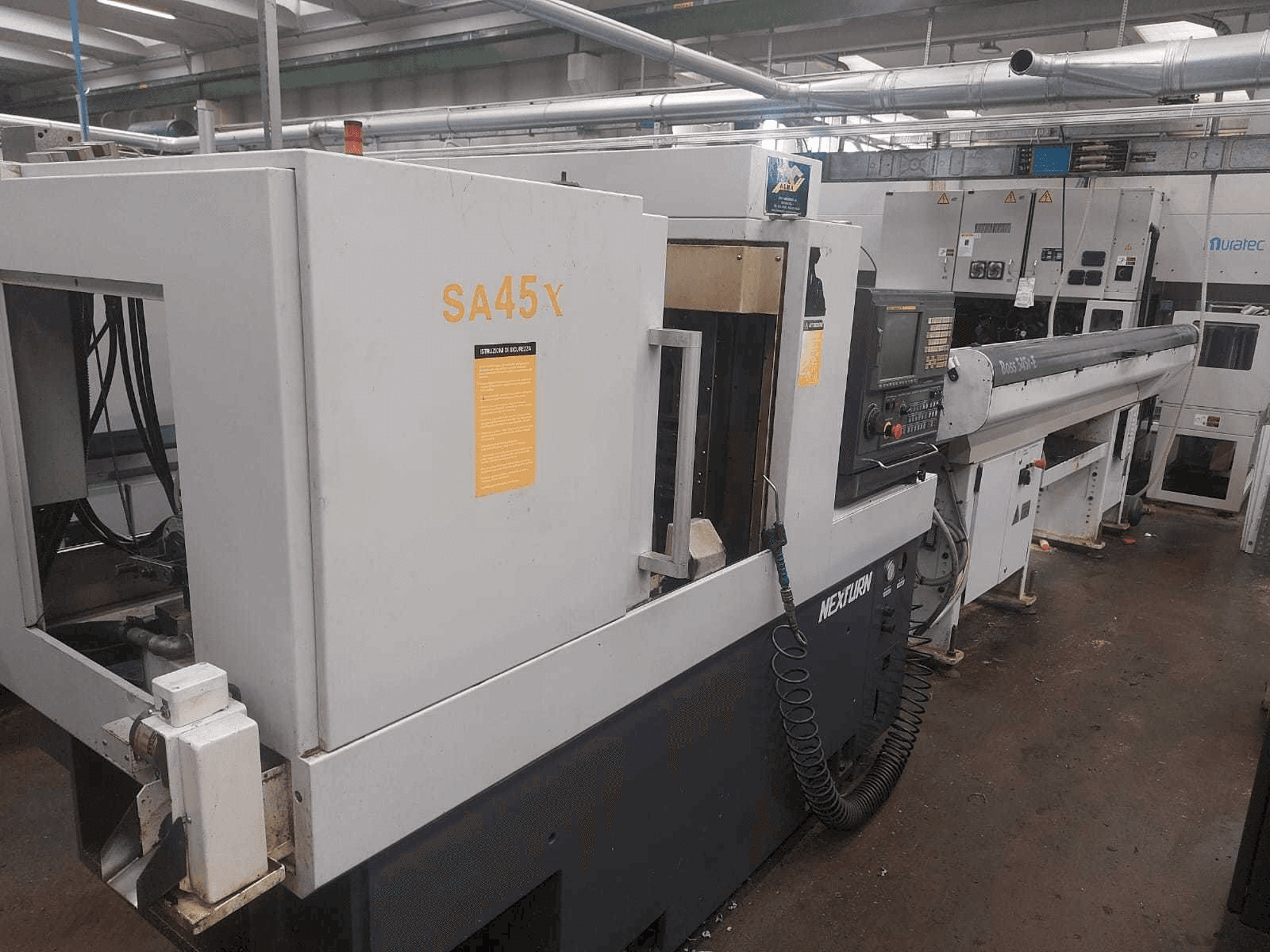

Left side view of Nexturn SA 45X machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Nexturn SA 45X

Photo Gallery

Nexturn - SA 45XIT-TUR-NEX-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Nexturn SA 45X Swiss Type Turning machine

Show in original language

This Nexturn SA 45X Swiss Type Turning machine was made in the year 2009 and has 24238 hours, of which 10267 are cutting hours. It is equipped with a Fanuc Series 18i-TB control unit and has 6 linear axes. The machine has a spindle speed of 6000 rpm. It includes a Barfeeder Iemca Boss 545.

Overview

brand: Nexturn
year: 2009
MODEL: SA 45X
production hours: 24238
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Nexturn SA 45X

General Data

Measurements width: 2200 mm
Measurements depth: 1460 mm
Measurements height: 1750 mm
Machine weight: 3800 kg

Control Unit

Model: Serie 18i-tb
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 11 Kw
Number of axis: 6

Movement

X-AXIS Movement: 135 mm
Y-AXIS Movement: 260 mm

Additional equipment

- Bar feeder Iemca Boss 545

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle bar diameter 45 mm
- - Sliding headstock travel (z1) 80 mm
- - Fixed sliding headstock yes
- - Number of linear axes 6
- - Number of fixed tools tool holder plate 10
- - Number of driven tools tool holder plate 5
- - High coolant pressure yes
- - Sub spindle rpm 6000, bar diameter 45 mm, x-axis travel sub spindle 180 mm, z-axis travel sub spindle 228 mm
- - Number of back driven tool posts 4
- - Y-axis travel 220
Qualitative Machine Benefits:
- - Coolant used whole oil
- - Cheap conveyor hinged belt

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
