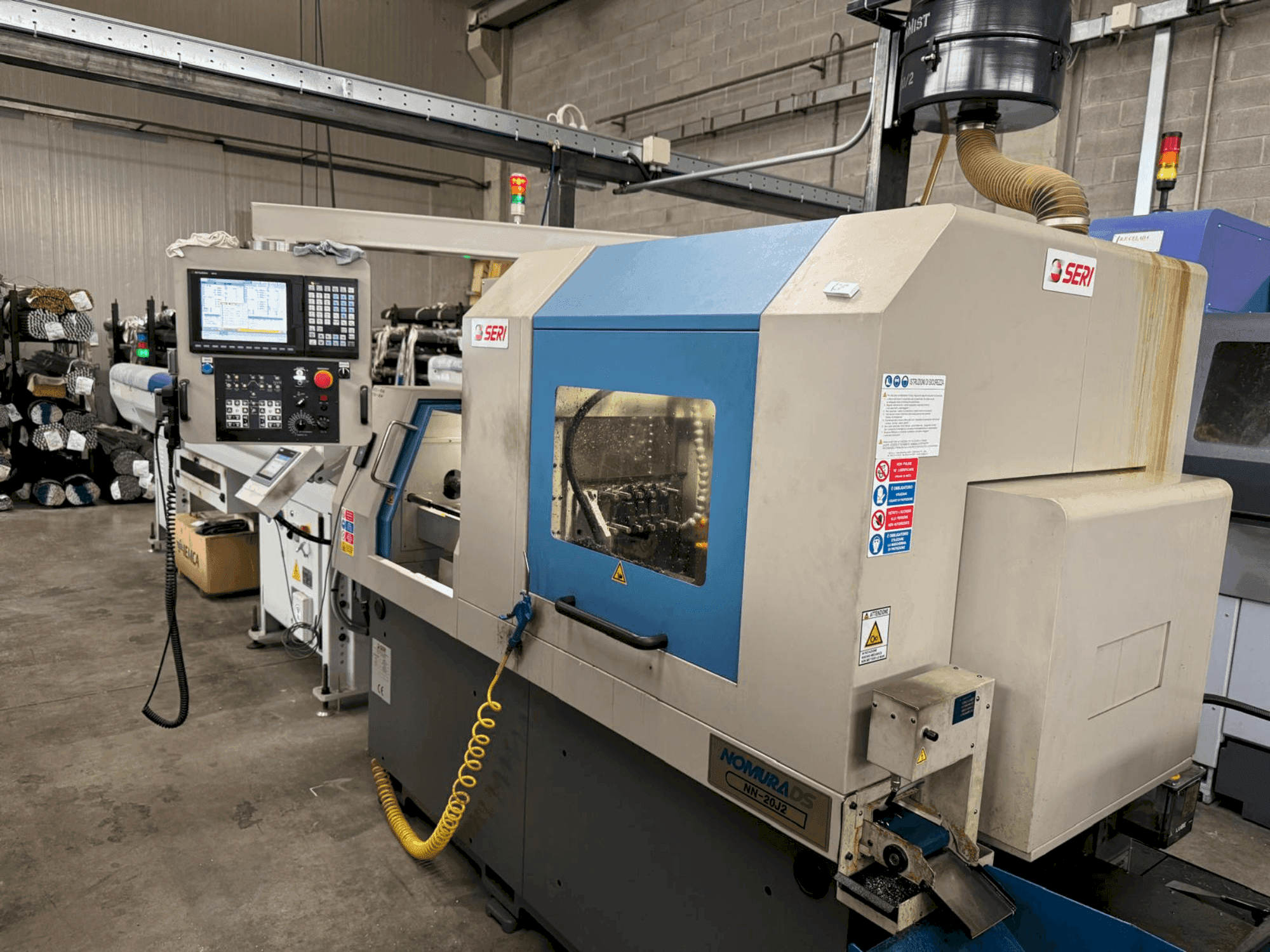

NOMURA - NN-20J2IT-TUR-NOM-2016-00007

Additional equipment

• - Main Spindle Side (S1): Number of Turning Tools: 6 pieces / Number of Radial Rotating Tools ER 16: 5 pieces / Number of Rotating Tool Revolutions: 300-6000 rpm / Number of Axial Drill Holders ER 16: 4 pieces
• - Counter Spindle Side (S2): Number of Turning Tools: 2 pieces / Number of Drilling Tools: 3 pieces /Number of Tools for Radial Drilling ER 16: 3 pieces / Number of Tools for Axial Drilling ER 11: 3 pieces

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Type: cnc automatic lathe of the "sliding headstock" type suitable for small and medium series machining
  • - Material machined: turnable parts of various types of material
  • - Machine markings: ce / technical documentation: technical file / drawings/schematics: yes
  • - Spindle indexing (continuous c axis): 0. 0001° / height from ground to spindle center: 1000 mm
  • - Z1 axis: 36 m/min/ rapid traverse x1 axis: 36 m/min /y1 axis: 36 m/min/ z2 axis: 36 m/min / x2 axis: 36 m/min/ y2 axis: 36 m/min
  • - Workpiece : max diameter that can be turned: 20/22 mm / max latheable length: 200 mm / max drilling diameter: 10 mm / max drilling diameter of rotating tools: 8 mm /max drilling length on s1: 65 mm / max drilling length with retracting spindles: 90 mm /max threading diameter: m8
  • - Counter spindle side capacity (s2): max drilling length on s2: 80 mm /max drilling diameter: 10 mm / max thread diameter: m8
