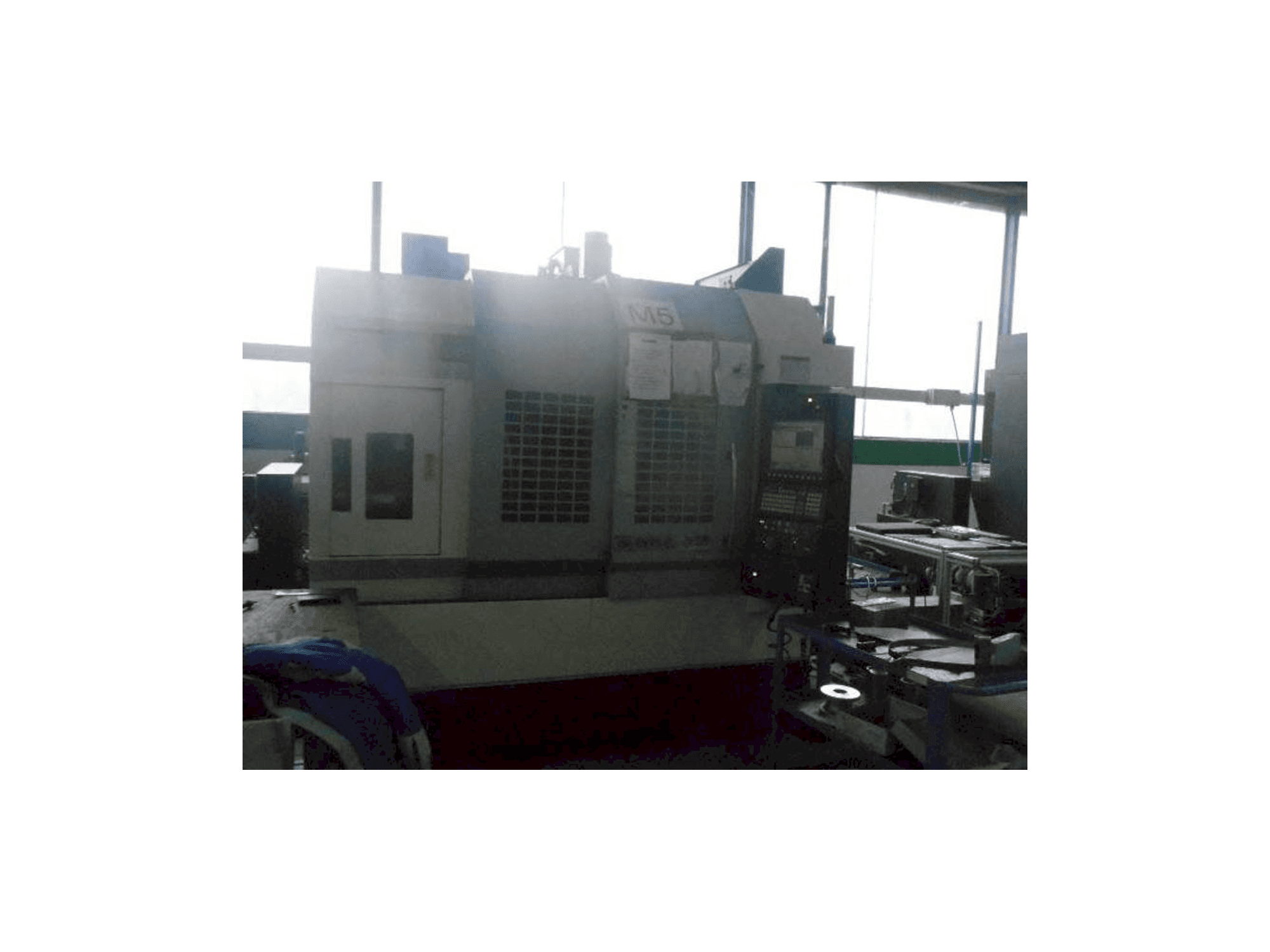

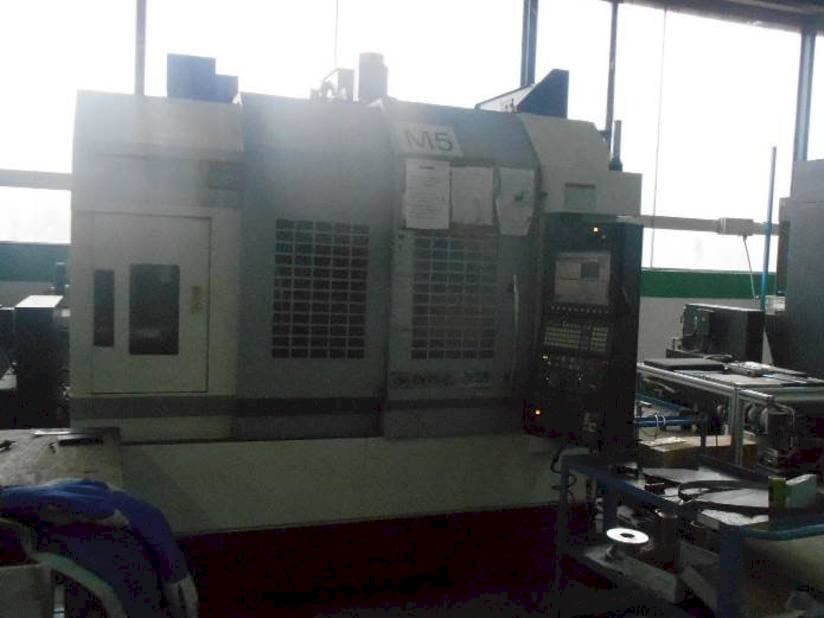

Front view of Okuma GENOS M560R-V machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma GENOS M560R-V

Photo Gallery

Okuma - GENOS M560R-VIT-MIL-OKU-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
OKUMA GENOS M560R-V

Show in original language

This OKUMA GENOS M560R-V vertical machining center was made in Taiwan in 2015. This machine has a total of 13700 production hours. It is equipped with a OKUMA OSP-P300M-R control unit. This 4 axis machine works with a spindle speed up to 15000 rpm. It includes a tool probe RENISHAW OP60. This machine presents its full paper and electronic documentation as well as the full service history.

Overview

brand: Okuma
year: 2015
MODEL: GENOS M560R-V
production hours: 13700
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: OKUMA

Technical Information - Okuma GENOS M560R-V

General Data

Measurements width: 2500 MM
Measurements depth: 3200 MM
Measurements height: 2750 MM
Machine weight: 7500 KG

Control Unit

Model: OSP-P300M-R
Brand: OKUMA

Main drive

Spindle speed range: 15000 1/MIN
Tool taper: BT-40
Number of axis: 4

Movement

X-AXIS Movement: 1050 MM
Y-AXIS Movement: 560 MM
Z-AXIS Movement: 460 MM

Turret

Number of tool slots: 32 + 1 PCS

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 37.5 KVA

Additional Information

Additional equipment

TOOL PROBE RENISHAW OP60

Machine Benefits

Technical Machine Benefits

Positioning accuracy: + -0. 004 mm
Positioning repeatability (per 100 mm): + -0. 0015 mm
Cooling through the spindle: yes / 15 bar
Automatic tool change (atc)
Super-nurbs function for 3-axis machining
4 axis kitamura

Extra Information

Full paper and electronic documentation is available as well as the full service history

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
