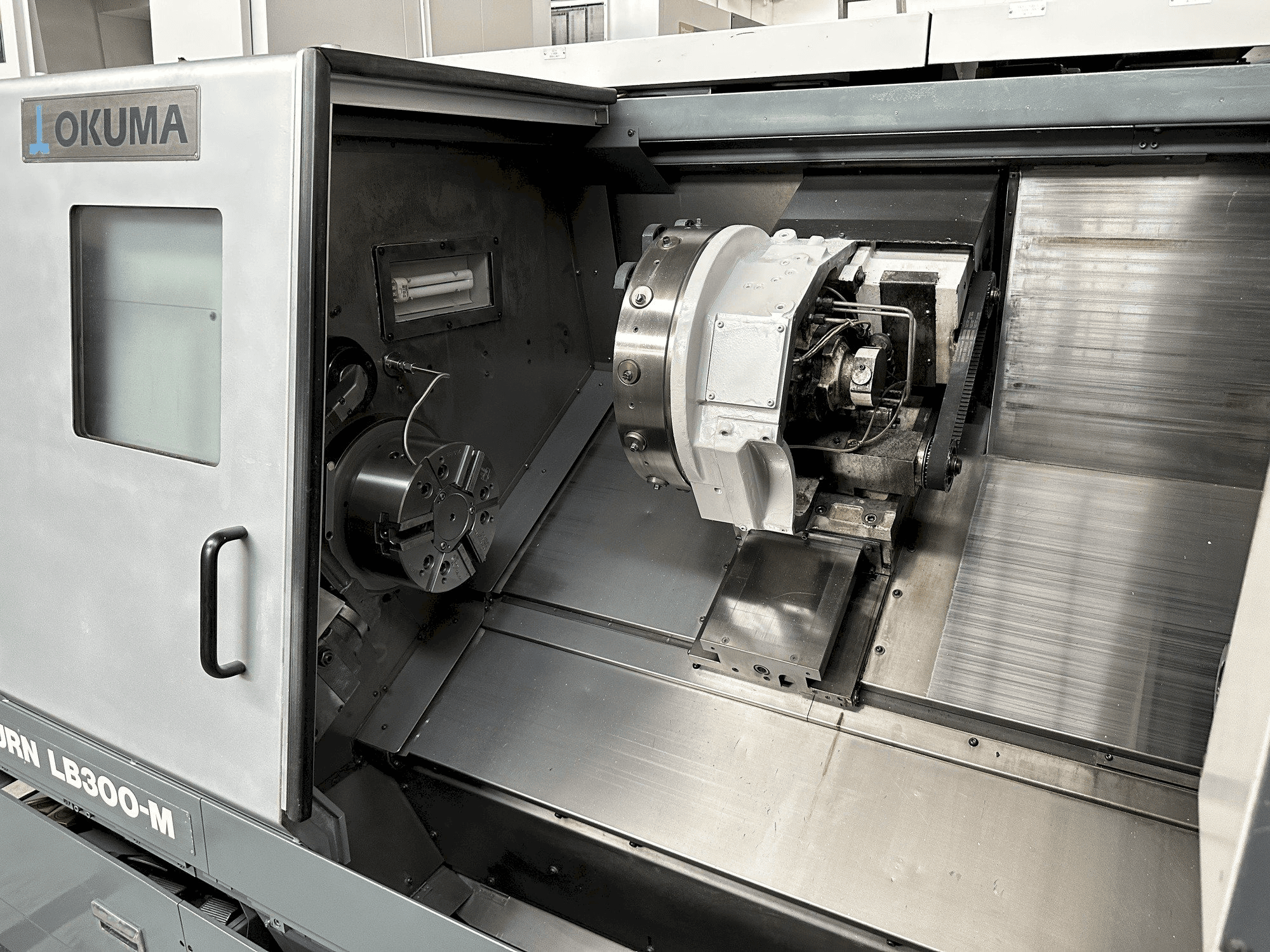

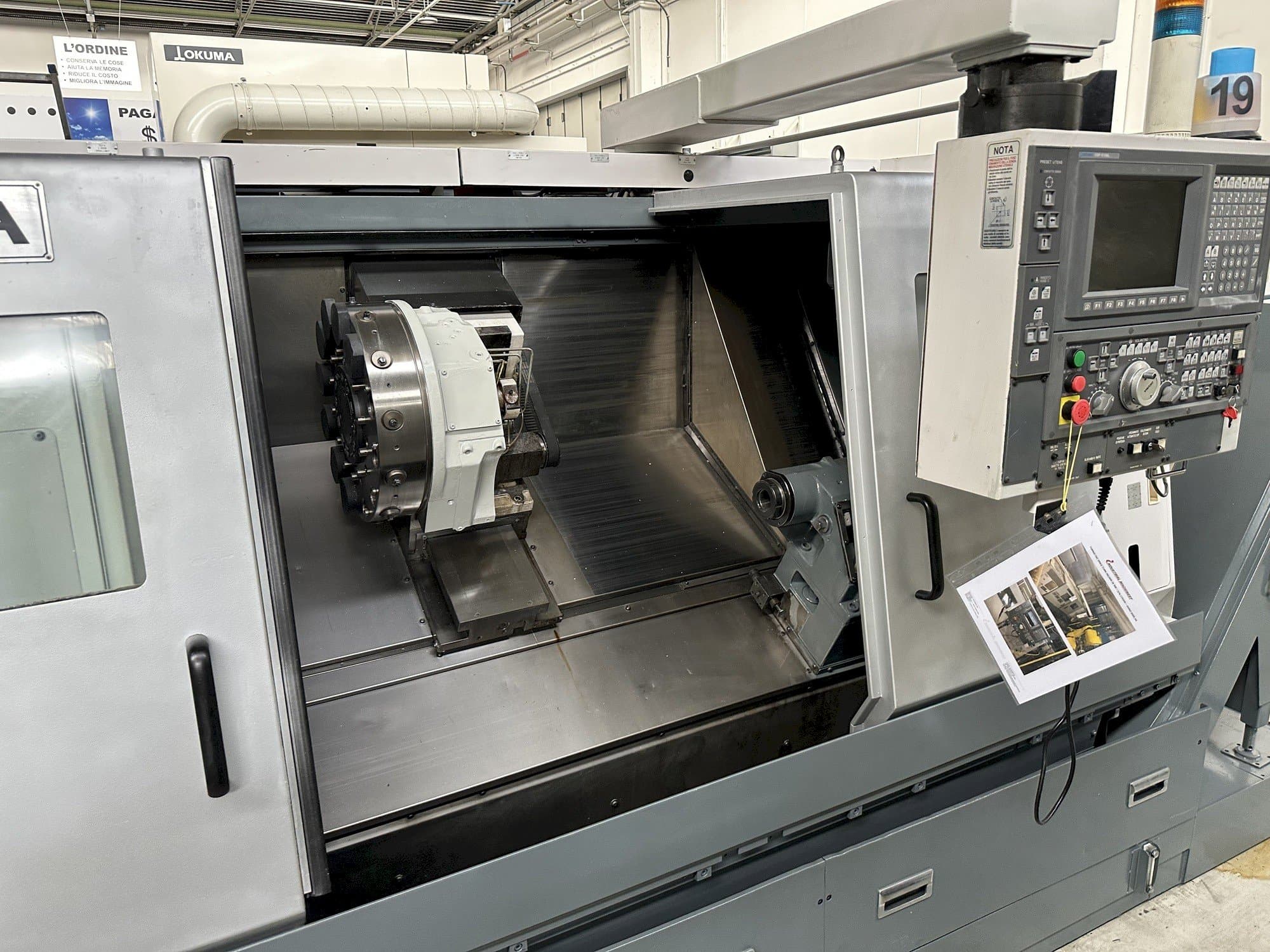

OKUMA LB 300 MC Lathe

Show in original language

This OKUMA LB 300 MC Lathe was manufactured in the year 2005 in Japan and has 28875 production hours, of which 10369 are spindle hours. It is equipped with an Okuma OSP E 100 L control unit. The machine has a spindle speed of 3800 rpm.

Overview

brand: Okuma
year: 2005
MODEL: LB 300 MC
production hours: 28875
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma LB 300 MC

General Data

Measurements width: 4160 mm
Measurements depth: 1895 mm
Measurements height: 1925 mm
Machine weight: 6000 kg

Control Unit

Model: OSP E 100 L
Brand: OKUMA

Main drive

Spindle speed range: 3800 1/MIN
Spindle motor power: 2 kW
Tool taper: ASA 8

Movement

X-AXIS Movement: 260 mm
Z-AXIS Movement: 1020 mm

Media

Main electronic connection: 400 V
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter: 340 mm, max. Turning length: 1020 mm
- - Turret type 12 pos. Vtbi 40
- - Rot. Diam. On bench mm. 530, rot. Diam. On slide mm. 420
- - Spindle hole: 80 mm,spindle speed ranges 2 elect.
- - Speed feed mm/1' from 45 to: 4500, speed progress rapid mm/1' 25,000
- - C axis 360,000 positions
- - 12 motorized positions with 45/4500 rpm with 7 kw; tool setting
- - Self-centering spindle diameter 250 mm. Autoblok, – n. 2 p/driven tools radial + n. 2 axial – predisposed for robots
- - 2 automatic doors, spindle air blow

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
