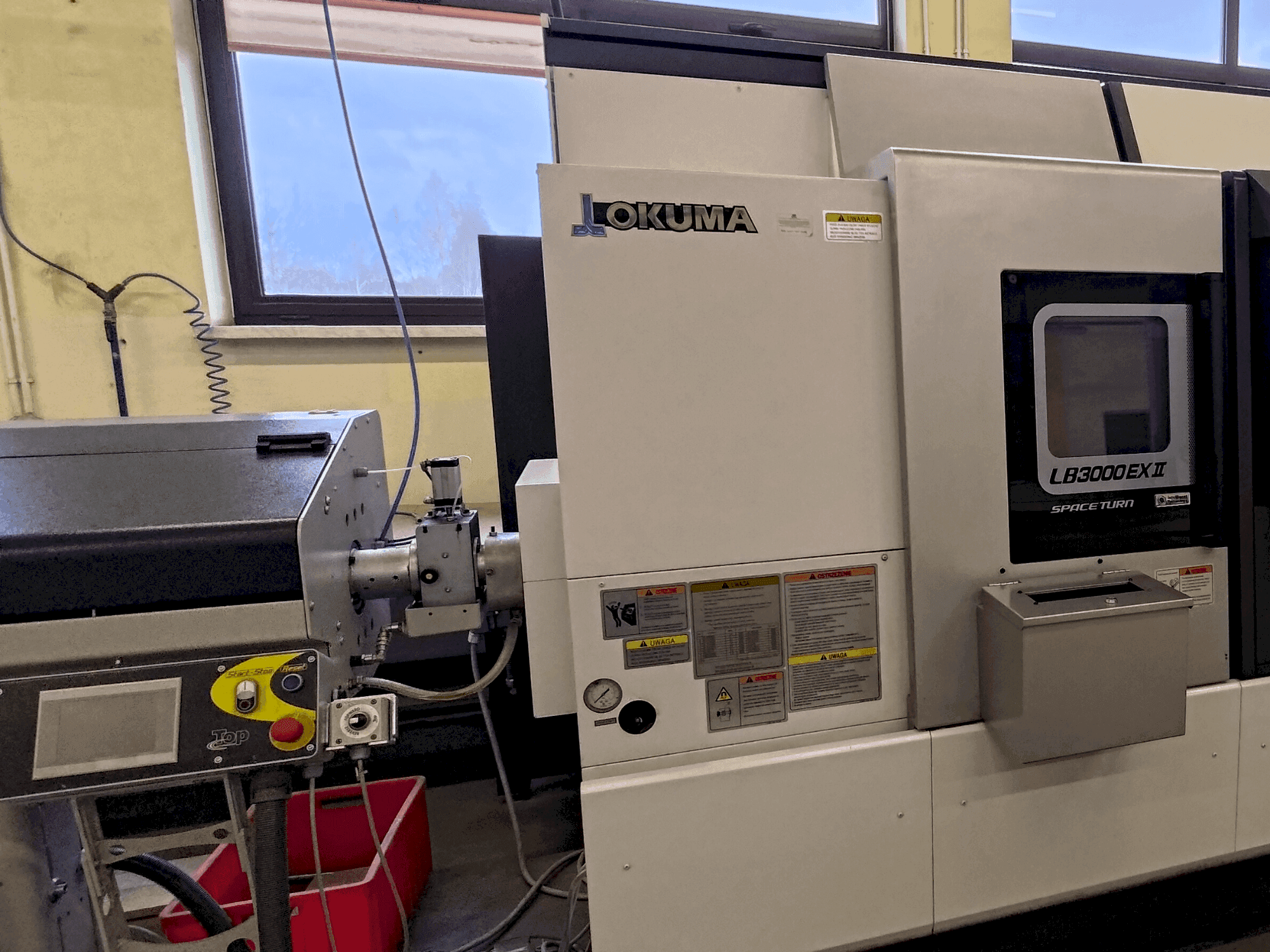

Okuma - LB 3000 EXII MYW 450PL-TUR-OKU-2020-00001

Additional equipment

• - Bar feeder
• - Number of tools: 12 Type BMT
• - The bar feeder can be sold separately and is not included in the offer

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum turning diameter: Ø340 mm
  • - Distance between spindle centers: 785 mm
  • - Electro-spindle drive type, advanced control system, high spindle speeds, driven tools
  • - C1 and c2 axis: 360° (0. 001°)
  • - X-axis drive power: 3. 5 k // y-axis drive power: 3. 5 kw
  • - Z-axis drive power: 4. 6 kw
  • - W-axis drive power: 2. 8 kw
  • - Main spindle nose: jis a2-6 // main spindle bore: Ø80 mm
  • - Sub-spindle nose: flat // sub-spindle bore: Ø62 mm
  • - Monitor size: 15"
• Qualitative Machine Benefits:
  • - Hours: power on: 1321 hours | spindle hours of 324
  • - Program memory capacity: 2048 mb (2gb)
  • - Slideways with large cross sections
  • - Main spindle - maximum torque: 427 nm (10 min)
  • - Main spindle - continuous torque: 281 nm (min. 270 nm)
  • - Sub-spindle - speed range: 50-6000 rpm
  • - Sub-spindle - maximum torque: 109 nm
  • - Sub-spindle - continuous torque: 75 nm
  • - Driven tools - speed range: 45-6000 rpm
  • - Driven tools - maximum torque: 40. 4 nm

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
